Pico PQ197 | USB oscilloscope 6804E, 6000E series, 8 channel, 500 MHz, 5 GSa / s sampling rate

Manufacturer number: PQ197

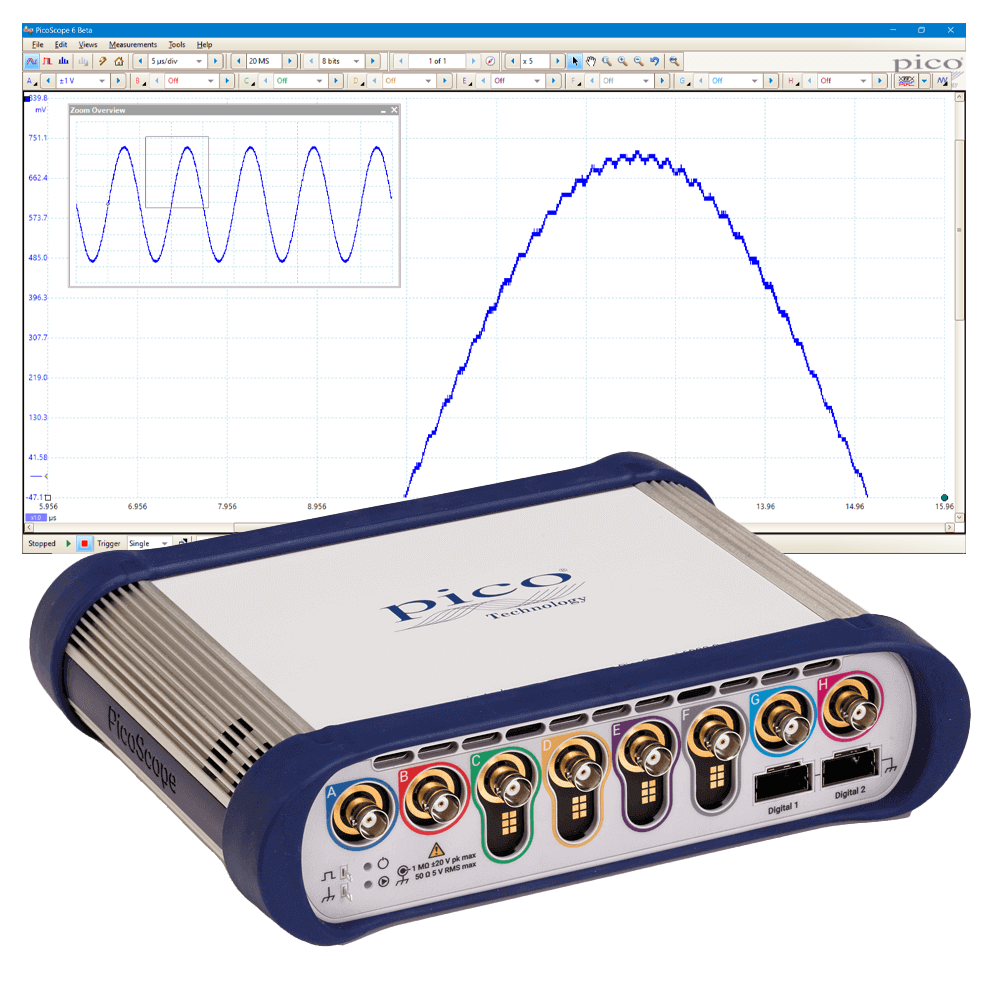

PicoScope PQ197 | USB oscilloscope 6804E, 6000E series, 8 channel, 500 MHz, 5 GSa / s sampling rate.

  • Channels: 8 (optionally expandable with TA369 MSO Pod) Bandwidth: 500 MHz
  • Resolution: 8 bit fixed (FlexRes available with other variants)
  • Input: BNC
  • Sampling rate: 5 GSa / s
  • PC connection: USB 3.0 (USB 2.0 compatible)
  • Dimensions: 245 mm x 192 mm x 61.5 mm
  • Weight: 2.2 kg
  • Warranty: 5 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Description

PQ197 | USB oscilloscope 6804E, 6000E series, 8 channel, 500 MHz, 5 GSa / s sampling rate

The PicoScope 6000E series are the most advanced real-time oscilloscopes in the Pico portfolio - and at an excellent price-performance ratio.

The variant 6804E offers 8 channels, 500 MHz bandwidth, a sampling rate of 5 GSa / s as well as a vertical sampling rate of 8 bits and thus has the best prerequisites to uncover problems with signal integrity such as disturbances, runs, dropouts, noise, distortion and ringing .

The PicoScope 6000E series offers you further variants with 4 or 8 channels, as well as models with flexibly adjustable resolution (FlexRes), in which you can change the resolution between 8, 10 and 12 bit.

The PicoScope oscilloscopes of the 6000E series are ideal for electronics developers who work with high-performance embedded systems, signal processing, power electronics, mechatronics and automotive systems, as well as for researchers and scientists who perform multi-channel high-performance experiments in physics laboratories, particle accelerators and similar facilities work. In conjunction with 3 differential high-voltage probes and 3 current clamps, you get a powerful 3-phase analysis system for power electronics applications.

Lieferumfang

  • PicoScope 6000E Serie
  • 4 x P2056 500 MHz 10:1 passiv Tastkopf
  • User’s Guide
  • 12 V Power Adapter
  • Netzstecker
  • USB Kabel, 1,8 m
  • Transportkoffer
