Pendulum FDA-301A | Signal splitter, base unit, inputs: 1x optical, 1x BNC (f), 10 MHz, without output modules

Manufacturer number: FDA-301A

Pendulum FDA-301A
Delivery time upon request

€1,659.00

plus VAT. €1,974.21 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Pendulum FDA-301A | Signal distributor / Time & Frequency Distribution Amplifier, basic device, inputs: 1x optical, 1x BNC (f), 10 MHz, without output modules.

  • Up to 10 signal inputs in the front panel:
    • Coaxial cable and fiber sine inputs 10 MHz (standard)
    • Coaxial cable and fiber pulse inputs (optional)
    • Coaxial Cable and Fiber E1 Clock and E1 Data Inputs (optional)
    • 2x Time of Day Inputs (optional)
  • 1, 2 or 3 output modules, each with 4 or 6 outputs, on the back:
    • Coaxial cable: 4x 10 MHz sine, or 4x pulse
    • Fiber: 6x 10 MHz sine, or 6x pulses
    • Coaxial cable: 2 x 2048 MHz + 2 x 2048 Mbps
    • Fiber: 3 x 2048MHz + 3 x 2048Mbps
    • 4 x ToD electrical
  • Dimensions H x W x D: 90mm (2U) x 210mm (½ 19") x 395mm
  • Weight: ~ 3kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

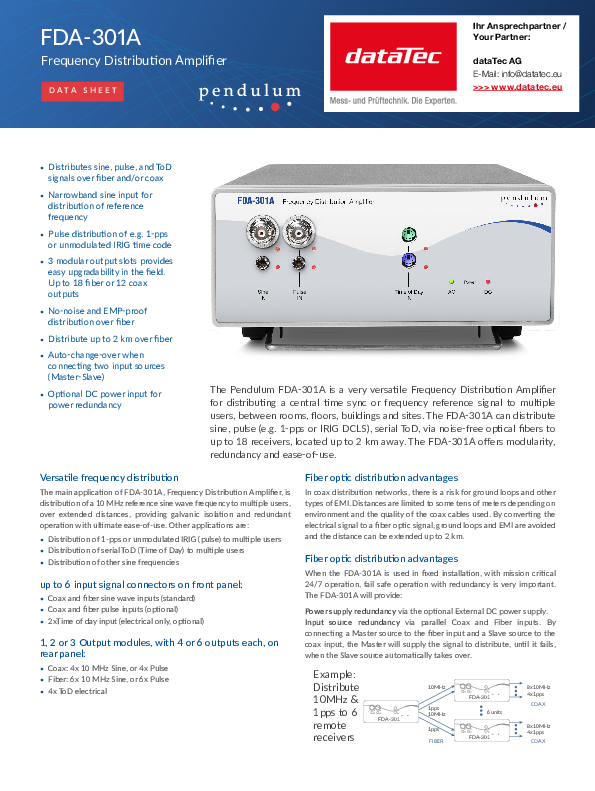

Datasheet
pdf | 0.44 MB
Userguide
pdf | 1.08 MB

Description

FDA-301A | Signal splitter, base unit, inputs: 1x optical, 1x BNC (f), 10 MHz, without output modules

The Pendulum FDA-301A Signal Splitter is a highly versatile fiber optic and coaxial distribution amplifier that distributes various signal types from a central frequency standard and/or time source to multiple remote receiving points. It features a modular output design with three output module slots on the rear panel, allowing up to 18 fiber or 12 coax connections from one unit.

The FDA-301A provides a narrowband sine wave reference frequency distribution over fiber or coaxial cable with minimal jitter and is rated for reference signals between 100 kHz and 100 MHz. The default frequency is 10MHz. The sinusoidal distribution is fully analog without the use of PLLs or other types of frequency recovery circuitry that can cause jitter, among other things. The signal is filtered in a narrow-band high-Q filter that strongly suppresses noise and distortion.

The FDA-301A also offers the distribution of time synchronization signals via the pulse inputs/outputs of, for example, 1 pps and the unmodulated IRIG time code (DCLS). The pulse distribution is broadband and allows pulse input signals up to 1 MHz.
