Pendulum CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz

Name: CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz
Brand: Pendulum
SKU: CNT-104S
Price: 10657.0 EUR
Availability: InStock

Manufacturer number: CNT-104S

Delivery time upon request

€10,657.00

plus VAT. €12,681.83 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price % Additional offers for this product

Pendulum CNT-104S | 4-channel frequency counter / frequency analyzer, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz.

Technical Data

AC input:	100 VAC - 240 VAC, 50 - 60 Hz (nom.), < 70 W
Article number:	CNT-104S
Dimensions (L x W x H) (mm):	395 x 210 x 90
Event Count (Totalize):	170.000
Input impedance:	1 MΩ parallel 40 pF or 50 Ω
Interfaces:	USB, LAN
Measurement functions:	Frequency, period, time range, phase, duty cycle, pulse duration, rise-fall time
Measurement resolution (gate time):	1,5 ns
Measuring range HF (or MikroW) (GHz):	24
Measuring range RF (MHz):	400
Measuring resolution:	12 digits/s
Messwertstatistik:	current measured value, minimum, maximum, standard deviation
Min. pulse width:	7 ps
Model:	CNT-104S
Number of channels:	3
Sensitivity:	15 mVrms: 100 MHz / 25 mVrms: 100 MHz - 200 MHz / 35 mVrms: 250 MHz - 350 MHz
Trigger source:	Intern, Extern, Bus, Manuel
Warranty (years):	3
Weakening:	Trigger Range: x10 / x1
Weight (kg):	3

Description

CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz

The Pendulum CNT-104S 4-channel frequency analyzer offers you a revolutionary concept for powerful multi-channel frequency and time interval analysis. Follow the frequency, phase or time of the 4 input channels in parallel on the large graphic screen. The CNT-104S allows you to measure without gaps, with a time resolution of

The ultra-high single-shot resolution enables better insight into the design under test, faster results in phase comparisons between clocks, more accurate calibration and the capture of very small time/phase changes. Track and compare 4 parallel signals with a resolution of 7 ps at a speed of 50 ns between samples in each channel. A measurement is made synchronously on all channels every 50 ns. The timestamps of the individual channel measurements can vary by up to 7 ps. In terms of 50 ns, that's "simultaneous/synchronous".

The complete zero dead time count enables back-to-back measurements without cycle loss, even with very long measurements. The CNT-104S is also a powerful Modulation Domain Analyzer (MDA). Thanks to the high speed of up to 20M samples/sec for 4 parallel signals, very fast frequency or phase/time changes can be recorded in real time.

The CNT-104S allows you to take measurements that previously required many devices, such as B. the phase comparison of 4 atomic clocks without the need for a switch. And multi-stop time interval measurements (1 start and 3 stop events) for time-of-flight measurements in physics research.

The large color touchscreen with its intuitive menus allows you to make all settings with the touch of a finger. Alternatively, a mouse can be connected to the CNT-104S. Or you can use the web server interface to control the frequency counter from an external PC screen.

Product features:

Frequency analyzer with 4 independent channels up to 400 MHz, plus an optional RF input from 0.1 to 24 GHz, expandable to 10, 15, 20 or 24 GHz via software license
In one device: 4 parallel counters for frequency measurement from 1 mHz to 400 MHz; with ultra-high time resolution of
Multi stop time interval
Seamless zero-dead-time frequency/period measurements
Very high measurement speed: up to 20M readings/s for 4 channels enables real-time acquisition of very fast frequency and phase changes for a modulation domain analysis (MDA)
Fast measurement data transmission of 170k measurements/s in block mode
Graphical touchscreen display for settings and display of values, statistics (numerical and distribution graph), trend and modulation range

Accessoires (16 products)

Pendulum
CNT-OPT-22-05

19" rackmount kit for two CNT-9x, CNT-100, GPS-12x, GSG-5/6 or FDA-300 next to each other

Ready to ship in 5 to 10 business days

€263.00

Pendulum
CNT-OPT-22-90

19" rackmount kit for a CNT-9x, CNT-100, GPS-12x, GSG-5/6 or FDA-300

Ready to ship in 5 to 10 business days

€195.00

Pendulum
CNT-OPT-27

carry bag

Ready to ship in 5 to 10 business days

€242.00

Pendulum
CNT-OPT-27H

Transport case

Ready to ship in 5 to 10 business days

€499.00

Exclusive

Pendulum
CNT-OPT-90-06

Calibration with test data, for CNT-9x or 6688 with OCXO oscillator

Delivery time upon request

€399.00

Pendulum
CNT-OPT-11C

Rear C input for CNT-100 series (replaces front input)

Delivery time upon request

€375.00

Exclusive

Pendulum
CNT-OPT-10

Option 3 GHz input, for CNT-90/91

Delivery time upon request

€1,066.00

Pendulum
CNT-OPT-110

Option 10GHz input C (hardware option) for CNT-100 series

Delivery time upon request

€2,571.00

Pendulum
CNT-OPT-40

Ultra-high stability OCXO oscillator, 15ppb/year (hardware option) for CNT-100 series

Delivery time upon request

€2,410.00

Pendulum
CNT-OPT-110-15

Input C Upgrade 10 to 15GHz for CNT-100 (software option) Requirement: Option 110

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-110-20

Input C Upgrade 15 to 20GHz CW for CNT-100 (software option) Requirement: Option 110 and 110/15

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-110-24

Input C Upgrade 20 to 24GHz CW for CNT-100 (software option) Requirement: Option 110, 110/15 and 110/20

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-11A

Rear A, B inputs for CNT-102 or CNT-104S (replace front inputs)

Delivery time upon request

€145.00

Pendulum
CNT-OPT-30

Highly stable oscillator, 50ppb/year (hardware option) for CNT-100 series

Delivery time upon request

€1,227.00

Pendulum
CNT-OPT-132

Programmable pulse output 0.5Hz to 100 MHz (software license) Period 10 ns, pulse width of 6ns, 2ns steps

Ready to ship in 5 to 10 business days

€531.00

Pendulum
CNT-OPT-151

TIE and timestamp measurement function (software license)

Ready to ship in 5 to 10 business days

€209.00

Alternate products (12 products)

Exclusive

Pendulum
CNT-90

Frequency counter / timer / analyzer, 400 MHz / 100 ps, graphical, incl. Standard time base

2 in stock. Ready to ship in 1 business day

€2,774.00

Exclusive

Pendulum
CNT-90XL-27G

Microwave frequency counter / analyzer, 27 GHz, graphical, incl.option CNT-OPT-19-90

Delivery time upon request

€9,206.00

Exclusive

Pendulum
CNT-90XL-40G

Microwave frequency counter / analyzer, 40 GHz, graphic, incl.option CNT-OPT-19-90

Delivery time upon request

€13,383.00

Exclusive

Pendulum
CNT-90XL-46G

Microwave frequency counter / analyzer, 46 GHz, graphic, incl.option CNT-OPT-19-90

Delivery time upon request

€18,631.00

Exclusive

Pendulum
CNT-90XL-60G

Microwave frequency counter / analyzer, 60 GHz, graphical, incl.option CNT-OPT-19-90

Delivery time upon request

€24,521.00

Exclusive

Pendulum
CNT-91

Frequency counter / timer / analyzer, 400 MHz / 50 ps, graphical, incl. Standard time base

Delivery time upon request

€4,815.00

Exclusive

Pendulum
CNT-91R

Frequency counter / timer / analyzer, 400 MHz / 50 ps, graphical, incl.Rubidium time base

Delivery time upon request

€11,241.00

Pendulum
CNT-102

2 channel frequency counter, 400 MHz, 14 ps resolution, TCXO, optional HF input up to 24 GHz

Delivery time upon request

€5,302.00

Pendulum
CNT-91R/AF-20

Frequency counter & calibrator, 20 GHz, 400 MHz/50 ps, graphic, incl. rubidium time base + CNT-OPT-14B

Delivery time upon request

€16,012.00

Pendulum
CNT-91R/AF

Frequency counter & calibrator, 3 GHz, 400 MHz/50 ps, graphic, incl. rubidium time base + CNT-OPT-10

Delivery time upon request

€14,298.00

Sale

Pendulum
CNT-104S

Demonstrator - 4-channel frequency counter, 400 MHz, 7 ps resolution, optional RF input up to 24 GHz (PENDU1008_2301_V)

1 in stock. Ready to ship in 1 business day

€12,361.50 €13,735.00

Pendulum
CNT-104R

4 Channel Frequency Counter, 400 MHz, Rubidium Time Synchronization, 7ps, 20 MSa/s

Delivery time upon request

On Request

Options (11 products)

Exclusive

Pendulum
CNT-OPT-10

Option 3 GHz input, for CNT-90/91

Delivery time upon request

€1,066.00

Pendulum
CNT-OPT-110

Option 10GHz input C (hardware option) for CNT-100 series

Delivery time upon request

€2,571.00

Pendulum
CNT-OPT-110-15

Input C Upgrade 10 to 15GHz for CNT-100 (software option) Requirement: Option 110

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-110-20

Input C Upgrade 15 to 20GHz CW for CNT-100 (software option) Requirement: Option 110 and 110/15

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-110-24

Input C Upgrade 20 to 24GHz CW for CNT-100 (software option) Requirement: Option 110, 110/15 and 110/20

Ready to ship in 5 to 10 business days

€1,393.00

Pendulum
CNT-OPT-30

Highly stable oscillator, 50ppb/year (hardware option) for CNT-100 series

Delivery time upon request

€1,227.00

Pendulum
CNT-OPT-40

Ultra-high stability OCXO oscillator, 15ppb/year (hardware option) for CNT-100 series

Delivery time upon request

€2,410.00

Pendulum
CNT-OPT-11A

Rear A, B inputs for CNT-102 or CNT-104S (replace front inputs)

Delivery time upon request

€145.00

Pendulum
CNT-OPT-11C

Rear C input for CNT-100 series (replaces front input)

Delivery time upon request

€375.00

Pendulum
CNT-OPT-132

Programmable pulse output 0.5Hz to 100 MHz (software license) Period 10 ns, pulse width of 6ns, 2ns steps

Ready to ship in 5 to 10 business days

€531.00

Pendulum
CNT-OPT-151

TIE and timestamp measurement function (software license)

Ready to ship in 5 to 10 business days

€209.00

Offers (1 product)

Sale

Pendulum
CNT-104S

Demonstrator - 4-channel frequency counter, 400 MHz, 7 ps resolution, optional RF input up to 24 GHz (PENDU1008_2301_V)

1 in stock. Ready to ship in 1 business day

€12,361.50 €13,735.00

About the Manufacturer

Pendulum

The history of Pendulum Instruments dates back to the 1960s. Founded as part of the Philips T&M competence network, the company continued to develop and expand its expertise in the fields of time and frequency measurement. Pendulum today offers innovative, reliable and highly accurate solutions for calibration, measurement and analysis of time and frequency related parameters.

Pendulum CNT-104S | 4-channel frequency counter, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz

Pendulum CNT-104S | 4-channel frequency counter / frequency analyzer, 400 MHz, 7 ps resolution, optional HF input up to 24 GHz.

Technical Data

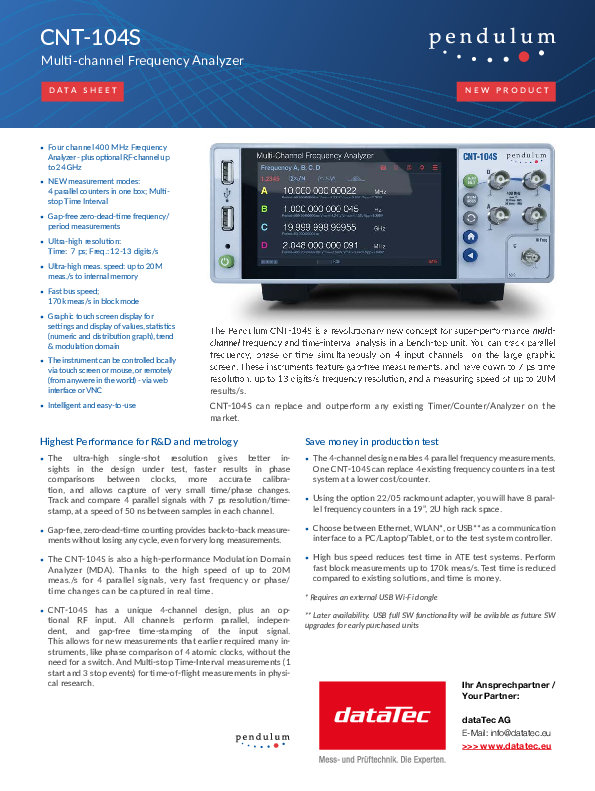

Documents & Downloads
