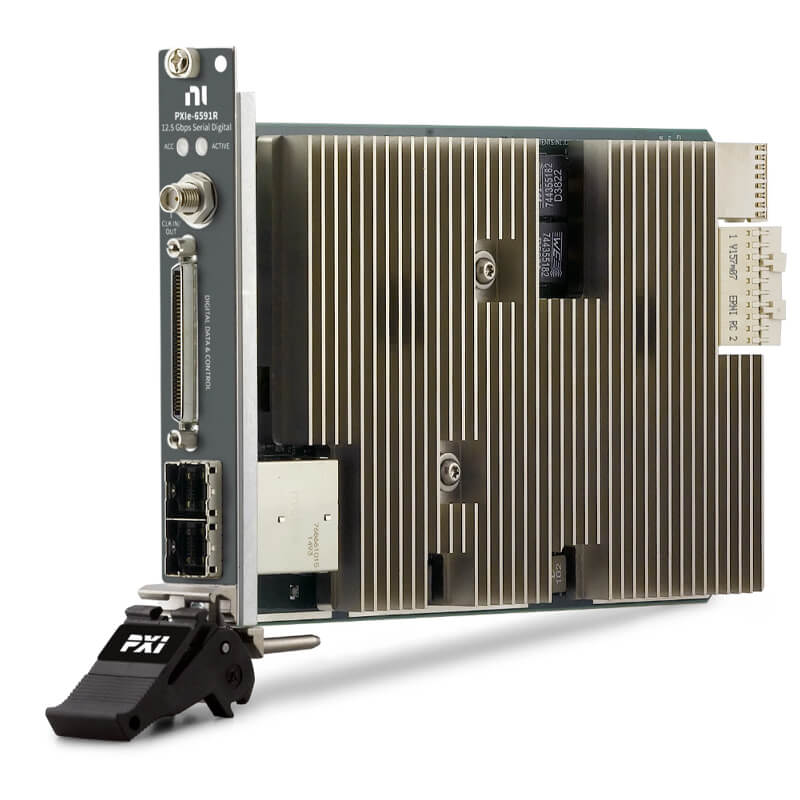

NI 783638-01 | NI PXIe-6591R, high-speed serial protocol meter (12.5 Gbps)

Manufacturer number: 783638-01

NI 783638-01
Delivery time upon request

€30,200.00

plus VAT. €35,938.00 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description

783638-01 | NI PXIe-6591R, high-speed serial protocol meter (12.5 Gbps).

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Catalog
pdf | 5.12 MB
Brochure
pdf | 0.84 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

783638-01 | NI PXIe-6591R, high-speed serial protocol meter (12.5 Gbps)

The PXIe ‑6591 is designed for applications where serial protocols should be validated, interfaced, and tested. It features a Xilinx Kintex ‑7 FPGA for implementing high speed serial protocols and is programmable in LabVIEW FPGA to make it optimally application specific can be defined and reused. The PXIe ‑6591 has an FPGA multigigabit transceiver and up to eight TX and RX lines. In addition to serial high-speed lanes, the PXIe ‑6591 offers digital I / O signals that support multiple logic families through a channel and cycle-by-cycle directional configuration.

Product features:

  • Bidirectional digital channels: 8
  • Maximum data rate: 12.5 Gbit / s
  • FPGA: Kintex-7 410T
  • Dynamic RAM (DRAM): 2 GB
  • PXI backplane connection: PCI-Express Gen2 x 8
