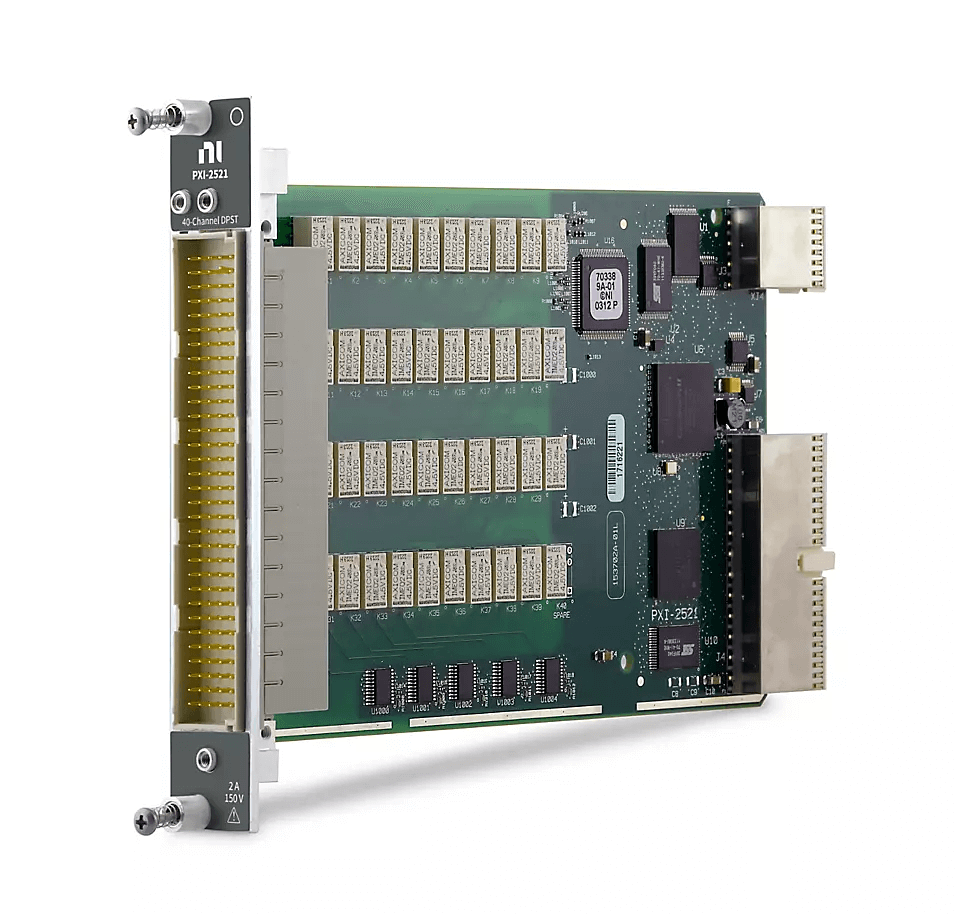

NI 778572-21 | PXI-2521, 40 Channel DPST Relay Module (150 V, 2 A)

Manufacturer number: 778572-21

778572-21
778572-21
778572-21
Delivery time upon request

€2,430.00

plus VAT. €2,891.70 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description

NI 778572-21 | PXI-2521, 40 Channel DPST Relay Module (150 V, 2 A).

Technical Data

Documents & Downloads

Catalog
pdf | 2.54 MB
Brochure
pdf | 2.74 MB
Overview
pdf | 1.35 MB
Configuration guide
pdf | 1.88 MB

Description

778572-21 | PXI-2521, 40 Channel DPST Relay Module (150 V, 2 A)

The PXI ‑ 2521 is a universal switching module that has independent DPST armature relays (two-pole on-off switch). Each relay is non-latching and has a low switch-on resistance and a low temperature-dependent offset voltage. The PXI ‑ 2521 is completely software programmable and supports the integrated function for counting the switching operations. Due to the efficient combination of performance when switching voltages and currents as well as the relay density, this switching module is particularly suitable for automated test loads or for controlling and regulating heating systems, lights and fans.

Product features:

  • Bus type: PXI Hybrid
  • Relay configuration: DPST relay
  • Number of relays: 40
  • Maximum switching voltage (DC): 150 V
  • Maximum switching current (DC): 2 A.
  • Switching bandwidth: 25 MHz
  • Scanning frequency: 145 cycles / s
