Tektronix MSO66B | Mixed Signal Oscilloscope MSO Series 6 B, 1 - 10 GHz, 6 channels, Flex-Channel, 12 Bit, 50 GSa / s, up to 1 G / ch.

Manufacturer number: MSO66B

MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
MSO66B
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Tektronix MSO66B | Basic device 6 Series B MSO Mixed Signal Oscilloscope, bandwidth 1 - 10 GHz (depending on the variant), 6 analog channels, Flex-Channel up to 48 digital channels, resolution 12 bit, sampling rate up to 50 GSa / s, recording length up to 1 G / ch.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Brochure
pdf | 2.04 MB
Overview
pdf | 1.30 MB

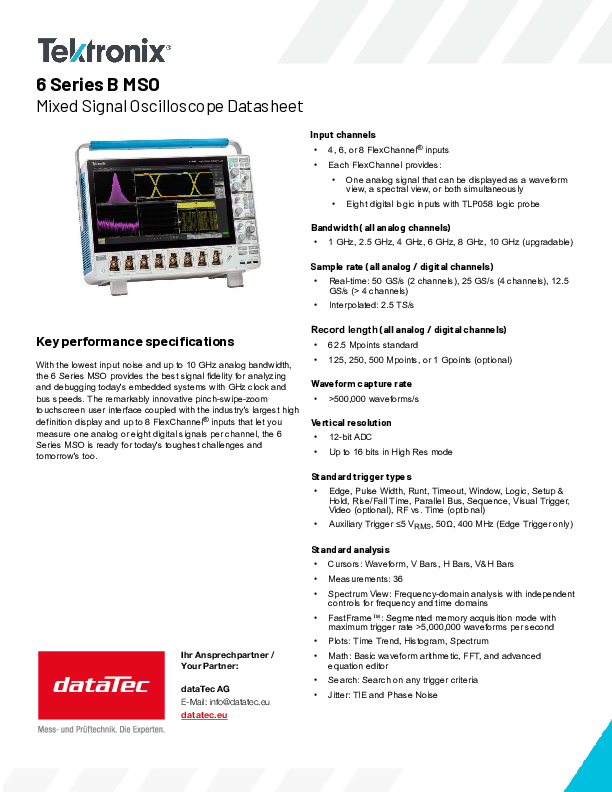

Datasheet
pdf | 2.35 MB

Description

MSO66B | Mixed Signal Oscilloscope MSO Series 6 B, 1 - 10 GHz, 6 channels, Flex-Channel, 12 Bit, 50 GSa / s, up to 1 G / ch.

Characterize and debug cutting edge designs with greater confidence.

More bandwidth. More channels. Less noise.

Note: basic device. Please select the optimal variant for your application under " Other products ".

Troubleshooting and validation of high-speed designs, mask testing, serial protocol triggering and analysis, advanced jitter analysis or compliance testing for serial buses: with the 6B series mixed signal oscilloscope you are equipped for current and future measurement applications - with one expandable bandwidth from 1 to 10 GHz, versatile and precise measurement functions and a sampling rate of 50 GSa / s.

The Tektronix MSO66B oscilloscope with FlexChannel technology optimizes system visibility for complex signals in verification and debugging processes. The 6 FlexChannel inputs each offer an analog signal input or eight digital logic inputs (with optional logic probe). This means that up to 48 digital channels can be implemented flexibly . An analog signal can be displayed as a curve or as a frequency spectrum - both views can also be displayed simultaneously. This makes oscilloscope-based analysis in the frequency domain as easy as with a spectrum analyzer, while maintaining the time reference to other signal events.

The digital channels have the same high real-time sampling rate of up to 50 GSa / s for high-precision timing resolutions and the same large recording length (up to 1 G points) for long-term acquisition as the analog channels . The particularly large 15.6-inch color display with touch function and full HD resolution enables you to clearly and simultaneously display many signals and analyzes.

Digital voltmeter, arbitrary function generator and power analysis:

The MSO66 oscilloscope offers an integrated 4-digit digital voltmeter (DVM) and an 8-digit frequency counter. Any of the analog inputs can serve as a source for the voltmeter. The same probes are used for this as for oscilloscope use. The MSO 6 B series also has an optional, integrated arbitrary function generator (AFG) , which is ideally suited for simulating sensor signals or for generating noise signals when performing limit value tests. The signal generator enables the output of predefined signals up to 50 MHz and offers a 128,000 point recording for loading signals from an internally stored file or a USB storage device. The optional power analysis package enables quick and reproducible analyzes of, among other things, power quality, harmonics, switching loss, modulation, ripple as well as efficiency, amplitude or time measurements.

Triggering and analysis of serial protocols:

The mixed signal oscilloscope of the 6 B series optionally offers a comprehensive set of reliable tools for common serial buses such as I2C, SPI, RS-232/422/485 / UART, CAN, CAN FD, LIN, FlexRay, SENT, PSI-5, 100BASE-T, USB LS / FS / HS, Ethernet 100 / 1000BASE-T1 and MIL-STD-1553, Spacewire and ARINC 429 . Parallel buses are also supported by the MSO66 (by default). With the serial protocol triggering you can trigger on certain packet contents, e.g. B. Start of package, specific address, unique identifier or error. The bus signal is time-correlated with all other displayed signals, so that the timing relationships between the various parts of the system under test are easy to determine. Decode Tables provide a tabular view of all decoded packets from an acquisition.

Product features:

  • Models with 4, 6 or 8 inputs - Each FlexChannel input can be used as 8 digital channels
  • 1 GHz - 10 GHz models available
  • 12-bit analog to digital converter (ADC) and low-noise preamplifier for exact measurements
  • Intuitive to use 15.6 “HD touch display
  • Optional with Windows 10 operating system
  • TekVPITMprobe interface supports a variety of probes
  • Digital voltmeter and frequency counter - free of charge with registration
  • Compliance test solutions are also available for various protocols, ask us
