Tektronix MSO58LP | Low profile oscilloscope, MSO, 1 GHz bandwidth, 8 FlexChannels With 125M Record
Manufacturer number: MSO58LP
Delivery time upon request
On Request
or choose one of the following options:
Tektronix MSO58LP | Mixed-signal oscilloscope, 8-channel, low-profile, FlexChannel technology with 8 analog and up to 64 digital inputs, bandwidth 1 GHz, sampling rate 6.25 GSa / s, ADC resolution 16 bit, optional performance analysis and function generator.
- FlexChannel technology: 8 analog channels, max. 64 digital logic channels
- Analog bandwidth: 1 GHz
- Impedance: 50 Ω ± 1%, 1 MΩ ± 1% with 13.0 pF ± 1.5 pF
- ADC resolution: 12 bit
- Real-time sampling rate: up to 6.25 GSa / s on each channel
- Signal acquisition rate:> 500,000 wfms / s
- Acquisition memory: 125 million points
- Integrated digital voltmeter: 4 digits
- Integrated trigger frequency counter: 8 digits
- Optional arbitrary signal and function generator: 13 predefined signal types, up to 50 MHz signal generation (arbitrary, sine, square, pulse, ramp, triangle, DC level, Gauss, Lorentz, exponential rise / fall, sin (x) / x, white noise , Cardiac sinus, cardiac)
- Acquisition modes: sampling, peak value acquisition, mean value, envelope curve, hi-res, FastAcq, roll mode, FastFrame
- Trigger types: edge, pulse width, runtime, timeout, window, logic, setup + hold, rise / fall time, parallel bus, sequence, visual
- Optional triggering, decoding and analysis of serial buses: I2C, SPI, RS-232/422/485 / UART, CAN, CAN FD, LIN, FlexRay, SENT, SPMI, USB 2.0, Ethernet, Audio (I2S, LJ, RJ, TDM ), MIL-STD-1553, ARINC 429
- Cursor types: curve shape, V / H / V & H bar, polar
- 36 automatic measurements, can be displayed simultaneously: including amplitude, time domain, jitter measurements, measurement statistics, reference level, gate control
- Optional analysis functions: advanced jitter analysis, eye diagram, digital power management, mask test
- Plots: time trend, histogram, spectrum
- Interfaces: 6x USB (host), 1x USB 3.0 (devices), LAN, trigger input aux, display port, DVI / VGA for external monitor
- Power supply: 100 to 240 V AC, 50/60 and 400 Hz
- Dimensions: W 432 × H 87.3 × D 605.7 mm
- Weight: 11.6 kg
- Warranty: 3 years
Technical Data
| Article number: | MSO58LP |
|---|---|
| Bandwidth (GHz): | 1 |
| Counter: | Yes (free with product registration) |
| DVM: | Yes (free with product registration) |
| Dimensions (L x W x H) (mm): | 605,7 x 432 x 87,3 |
| Function generator: | optional AFG 50MHz |
| Interfaces: | USB, LAN |
| Model: | MSO58LP |
| Number of channels: | 8 |
| Samplerate: | 6,25 GSa/s |
| Screen type: | 1920 x 1080, externer Monitor |
| Signal acquisition rate: | 500.000 wfms/s |
| Special features: | FlexChannel technology - up to 64 digital channels 2U Bench configuration possible |
| Storage depth: | 125 Mpts |
| Triggertypes: | Edge, Pulse Width, Timeout, Runt, Window, Logic, Setup&Hold, Rise/Fall Time Sequence, Visual, Parallel Optional: Video, RF vs Time |
| Vertical resolution: | 12-bit |
| Warranty (years): | 3 |
| Weight (kg): | 11.6 |

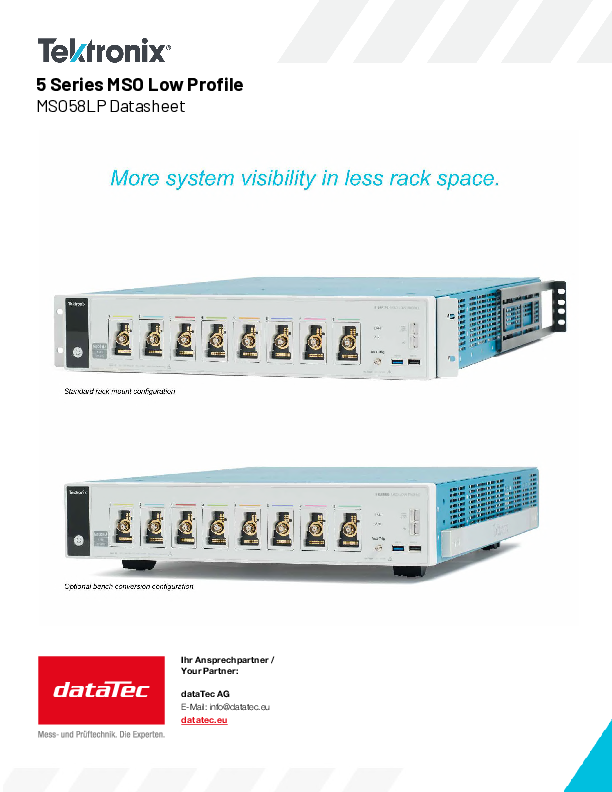

Documents & Downloads
Description
MSO58LP | Low profile oscilloscope, MSO, 1 GHz bandwidth, 8 FlexChannels With 125M Record
The MSO Series 5 with FlexChannel technology optimizes system visibility for complex signals in verification and debugging processes. Each FlexChannel input offers either an analog signal input or eight digital logic inputs (with an optional logic probe). The associated flexibility opens up a wide range of configuration options. The MSO58 oscilloscope has eight analog and up to 64 digital channels and is ideal for applications such as: B. embedded systems, three-phase electronics, vehicle electronics or DC / DC converter in question.
The digital channels have the same high real-time sampling rate of up to 6.25 GSa / s for fine timing resolutions and the same long recording length (up to 125 million points) for long-term acquisitions as the analog channels. The particularly large 15.6-inch color display with touch function via multi-finger gestures and Full HD resolution enables you to clearly display multiple signals and analyzes.
Digital voltmeter, arbitrary function generator and performance analysis:
The MSO58 oscilloscope contains an integrated, 4-digit digital voltmeter (DVM) as well as an 8-digit trigger frequency counter for the precise display of the frequency of the executed trigger event. Each of the analog inputs can serve as a source for the voltmeter. The same probes are used for this as for the use of the oscilloscope. The MSO Series 5 also has an optional integrated arbitrary function generator (AFG), which is ideally suited for simulating sensor signals or for generating noise signals when carrying out limit value tests. The signal generator enables the output of predefined signals up to 50 MHz and offers 128,000-point recording for loading signals from an internally stored file or a USB storage device. The optional performance analysis package enables fast and reproducible analyzes of performance quality, harmonics, switching loss, modulation, ripple as well as efficiency, amplitude or time measurements.
Triggering and analysis of serial protocols:
The MSO Series 5 optionally offers a comprehensive set of reliable tools for the most common serial buses such as I2C, SPI, RS-232/422/485 / UART, CAN, CAN FD, LIN, FlexRay, SENT, USB LS / FS / HS, Ethernet 10/100 and MIL-STD-1553. Parallel buses are also supported by the MSO58 (by default). With serial protocol triggering you can trigger on certain packet contents, e.g. B. package start, specific address, unique identifier or error. The bus signal is time-correlated to all other signals displayed, so that the timing relationships between the different parts of the tested system are easy to determine. Decode tables provide a tabular view of all decoded packets from one capture.
Lieferumfang
- MSO58LP oscilloscope
- Installation and safety manual
- Online help
- Calibration certificate
- Power cord
