LANGER XF-E 09S | E-field probe, 30 MHz to 6 GHz

Name: XF-E 09S | E-field probe, 30 MHz to 6 GHz
Brand: LANGER
SKU: XF-E 09S
Price: 383.9 EUR
Availability: OutOfStock

Manufacturer number: XF-E 09S

Delivery time upon request

€383.90

plus VAT. €456.84 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Langer XF-E 09S | E-field probe, 30 MHz to 6 GHz.

Product features:

Frequency range: 30 MHz - 6 GHz
Probe head dimensions: ≈ 10 x 10 mm
Connection - output: SMA, female, jack

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

XF-E 09S | E-field probe, 30 MHz to 6 GHz

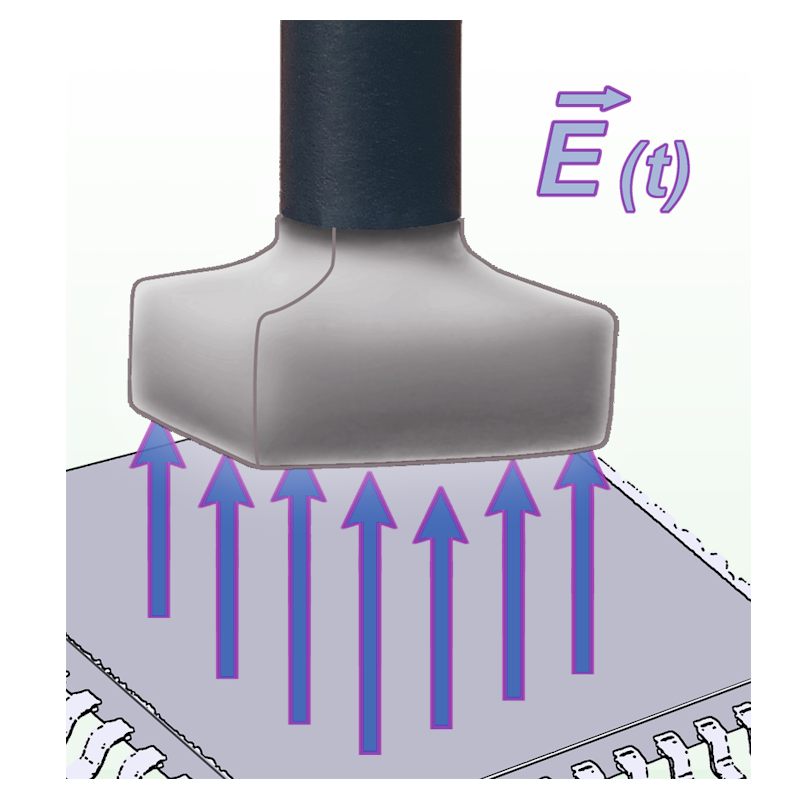

The near-field probe detects the electric fields that couple out of the measurement objects (ICs). The flanks of the probe head are shielded so that any E-field coming in from the side is not measured. The sensitivity of the near-field probe enables measurements at a distance of 0.5 mm to 10 mm above ICs and assemblies.

The XF-E 09s is a passive near-field probe. It has the same basic design as the XF-E 04s probe. To measure, the E-field probe is guided over or placed on the components or areas of the printed circuit board. The top and sides of the probe head are electrically shielded. The E-field probe has a sheath current attenuation. The near-field probe is connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E-field probe has an internal terminating resistor.

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
