LANGER RF4-E SET | Near-field probes E-field 30 MHz to 3 GHz

Name: RF4-E SET | Near-field probes E-field 30 MHz to 3 GHz
Brand: LANGER
SKU: RF4-E SET
Price: 650.1 EUR
Availability: OutOfStock

Manufacturer number: RF4-E SET

Delivery time upon request

€650.10

plus VAT. €773.62 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Langer RF4-E SET | near-field probes E-field 30 MHz to 3 GHz.

Product features:

Frequency range: 30 MHz - 3 GHz
Connection: SMB, male, jack

Description

RF4-E SET | Near-field probes E-field 30 MHz to 3 GHz

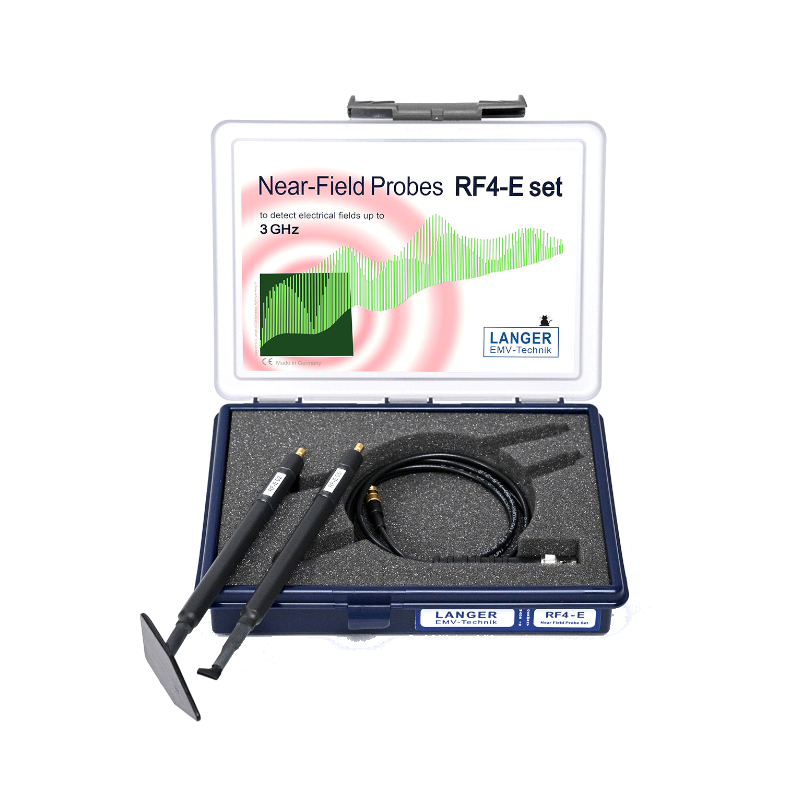

The RF4-E set contains two passive E-field probes for comparative measurement of electric fields in the frequency range from 30 MHz to 3 GHz.

The probes are used to analyze the E-field distribution, to detect coupling mechanisms on assemblies and to evaluate switching edges on signal lines and RF current voltages of the supply system.

The near-field probes are small and handy. They have a sheath current attenuation and are electrically shielded. The near-field probes are connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The probes do not have an internal 50 Ω terminating resistor.

Lieferumfang

RF-E 02, E-field probe 30 MHz to 1.5 GHz
RF-E 05, E-field probe 30 MHz to 3 GHz
SMB-BNC, 1 m measuring cable SMB-BNC
Case for 2 near-field probes

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
