LANGER RF-E 09 | E-field probe, 30 MHz to 3 GHz

Name: RF-E 09 | E-field probe, 30 MHz to 3 GHz
Brand: LANGER
SKU: RF-E 09
Price: 327.8 EUR
Availability: OutOfStock

Manufacturer number: RF-E 09

Delivery time upon request

€327.80

plus VAT. €390.08 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries

Langer RF-E 09 | E-field probe, 30 MHz to 3 GHz.

Product features:

Frequency range: 30 MHz - 3 GHz
Probe head dimensions: ≈ 10 x 10 mm
Connection: SMB, male, jack

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

RF-E 09 | E-field probe, 30 MHz to 3 GHz

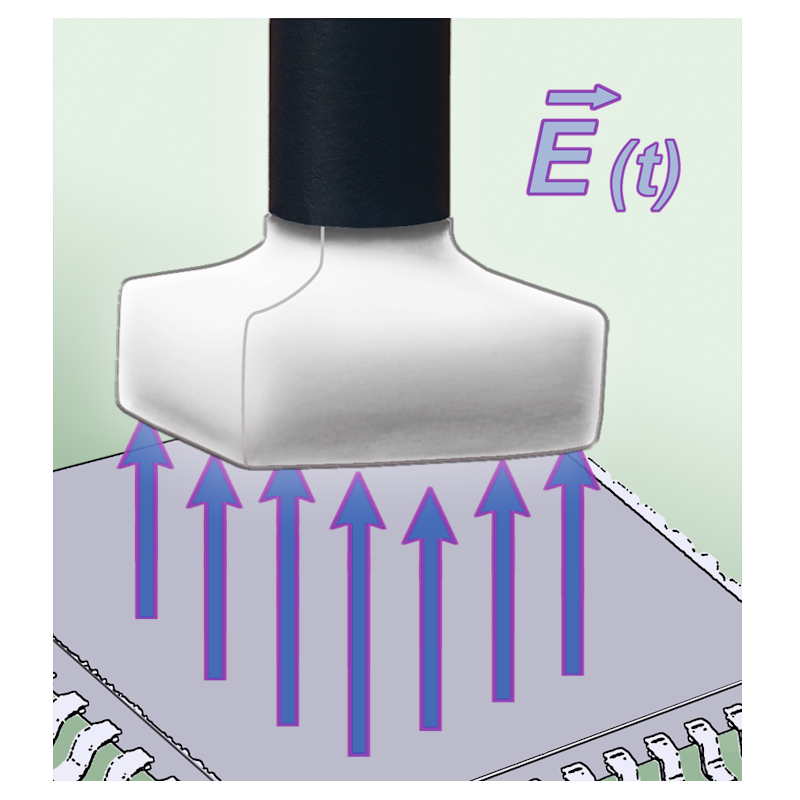

The electrode on the underside of the probe head of the RF-E 09 detects the electric fields that ICs emit. The sensitivity of the probe enables measurements at a distance of 0.5 mm to 10 mm above the module. The RF-E 09 probe has been developed for the Langer scanner.

The RF-E 09 is a passive near-field probe. It has the same basic design as the RF-E 03 and RF-E 04 probes. The small square electrode surface of the RF-E 09 can be used to detect the exact cause of electrical interference fields. To measure, the E-field probe is guided over or placed on the components or areas of the printed circuit board. The top of the probe is electrically shielded. It has a sheath current attenuation. The near-field probe is connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. The E-field probe does not have an internal 50 Ω terminating resistor.
