LANGER P23 SET | Mini burst field generator (E)

Name: P23 SET | Mini burst field generator (E)
Brand: LANGER
SKU: P23 SET
Price: 1323.3 EUR
Availability: OutOfStock

Manufacturer number: P23 SET

Delivery time upon request

€1,323.30

plus VAT. €1,574.73 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

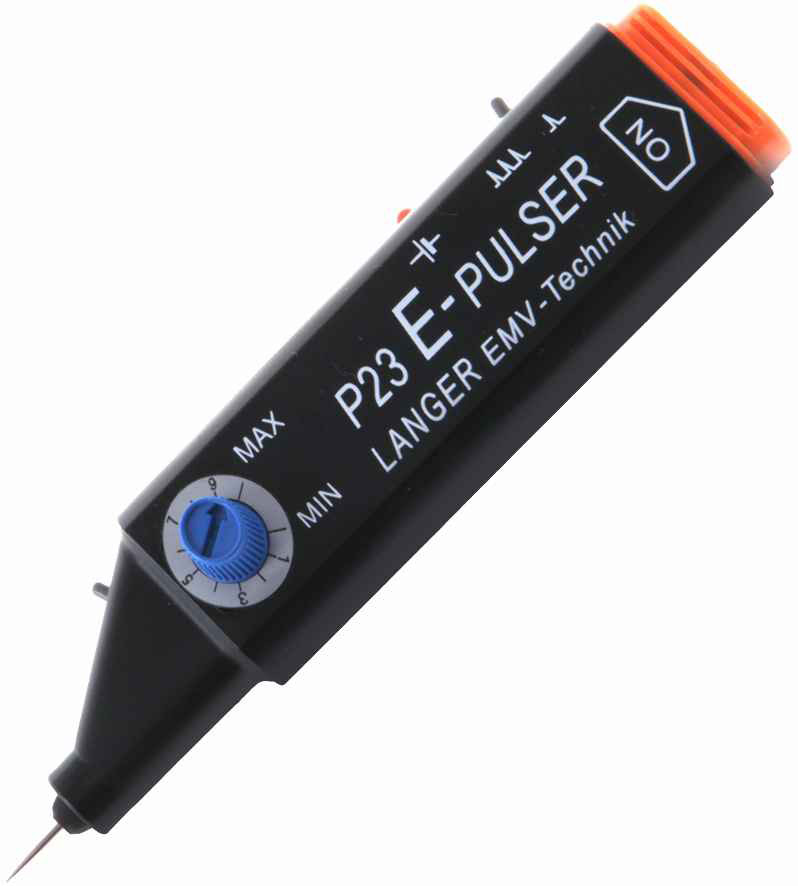

Langer P23 SET | mini burst field generator (E).

Product features:

Generator voltage: 1.2 kV
Coupling capacitance: 10 pF
Pulse parameter rise time: 1.8 ns - 10 ns
Pulse parameter frequency: single / 5 kHz
Power supply: 1.5 V / AAA

Documents & Downloads

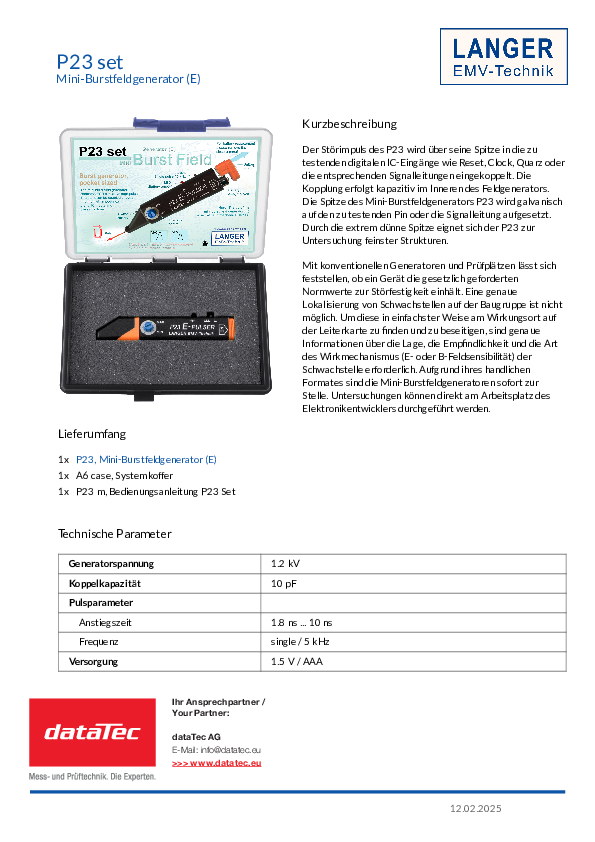

Datasheet

pdf | 0.78 MB

Description

P23 SET | Mini burst field generator (E)

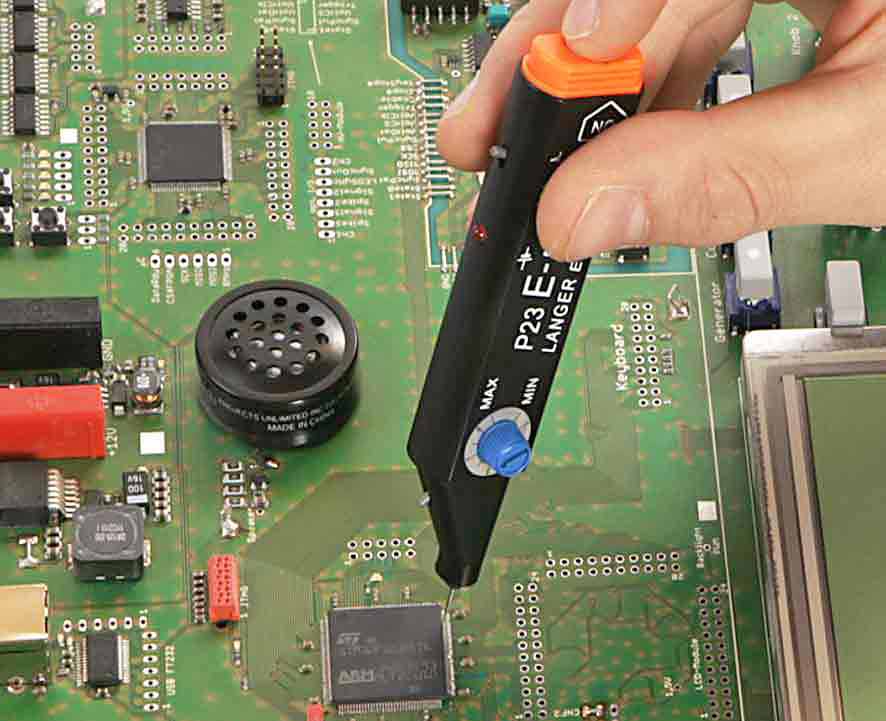

The interference pulse of the P23 is coupled via its tip into the digital IC inputs to be tested, such as reset, clock, quartz or the corresponding signal lines. The coupling takes place capacitively inside the field generator. The tip of the P23 mini burst field generator is galvanically connected to the pin or signal line to be tested. The extremely thin tip makes the P23 suitable for testing the finest structures.

Conventional generators and test stations can be used to determine whether a device complies with the legally required standard values for interference immunity. It is not possible to precisely localize weak points on the assembly. In order to find and eliminate these in the simplest possible way at the point of action on the circuit board, precise information about the position, sensitivity and type of action mechanism (E or B field sensitivity) of the weak point is required. Thanks to their handy format, the mini burst field generators are immediately at hand. Investigations can be carried out directly at the electronics developer's workplace.

Lieferumfang

P23, mini burst field generator (E)
Case
Operator's manual P23 Set

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
