LANGER BD 11 | H-field burst detector Active, fiber optic / relay output

Name: BD 11 | H-field burst detector Active, fiber optic / relay output
Brand: LANGER
SKU: BD 11
Price: 212.3 EUR
Availability: OutOfStock

Manufacturer number: BD 11

Delivery time upon request

€212.30

plus VAT. €252.64 VAT plus shipping costs

or choose one of the following options:

Request a quote Product inquiries Request education-price

Langer BD 11 | H-field burst detector active, fiber optic / relay output .

Product features:

Fiber optic connection: 2.2 mm Ø
Power supply: 2 x 1.5V AAA battery
Max. Switching voltage: 125 V
Max. Switching current: 1 A
Max. Optical fiber length: 20 m
Dimensions (L x W x H): 88 x 85 x 32 mm

Description

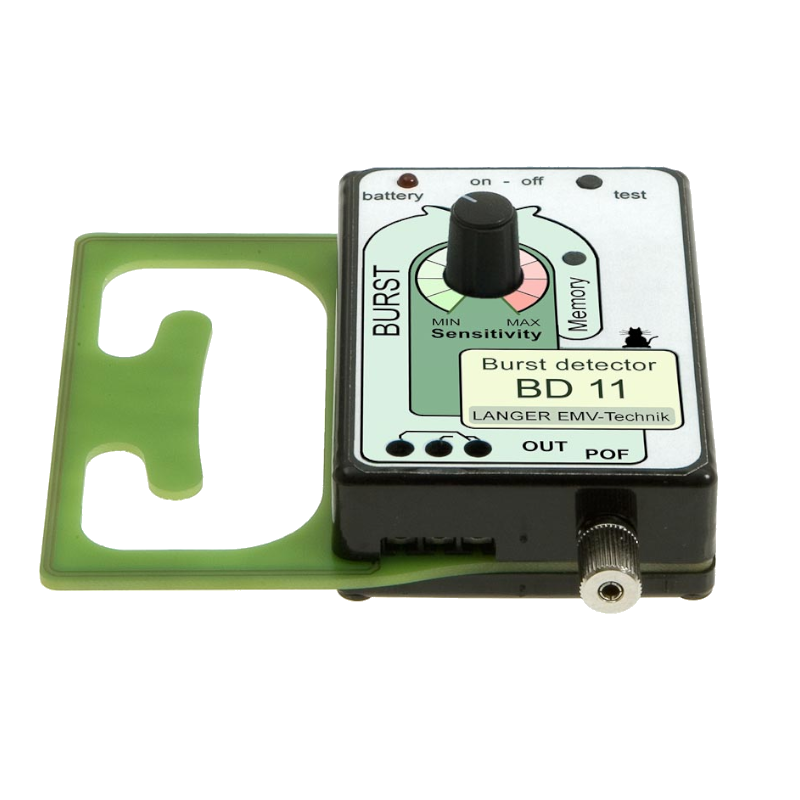

BD 11 | H-field burst detector Active, fiber optic / relay output

The BD 11 is used to detect a burst or ESD current pulse on a cable, e.g. in a complex system. This makes it easier to investigate the cause of sporadic faults in the system. It is small and handy, its sensitivity is very high and infinitely adjustable.

The BD 11 detects the magnetic field generated by the burst current. Detected interference pulses are indicated by an LED on the detector and can be transmitted as a signal via a relay output (potential-free) or a fiber optic cable to various evaluation devices (e.g. for logging or emergency shutdown of the monitored system). The pulse width is approx. 100 ms. The BD 11 contains a memory.

About the Manufacturer

LANGER

Langer EMV Technik was founded in 1998. The company is one of the top specialists in the field of electromagnetic compatibility (EMC).
