Keysight U8032A | Power supply unit, DC, 3 channel, linear 2x 60V / 3A, 5V / 3A, 375 W.

Manufacturer number: U8032A

U8032A
U8032A
U8032A
U8032A
U8032A
U8032A
U8032A
U8032A
3 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight (formerly Agilent's electronic measurement technology) U8032A | 3-channel power supply 2x 0 - 60V / 0 - 3A DC and 1x 5V / 3A.

  • 3 output channels (2x 60V / 3A; 1x 5V / 3A)
  • Delivers a total power of 375 W via 3 outputs
  • Analog programming via keypad
  • LCD with orange backlight
  • Backlight can be switched on / off
  • Dual display of voltage and current
  • Excellent control (CV: <0.01% + 2 mV; CC: <0.02% + 2 mA)
  • Residual ripple of the voltage ≤ 1 mVrms (0.5 mVrms typical)
  • Fast load control <50 μs
  • Surge and power protection
  • keylock
  • Temperature controlled fan for cooling
  • 4U - width 1/2 19in
  • Dimensions: B212.3 x D379.0 mm
  • Weight 8.2 kg
  • Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

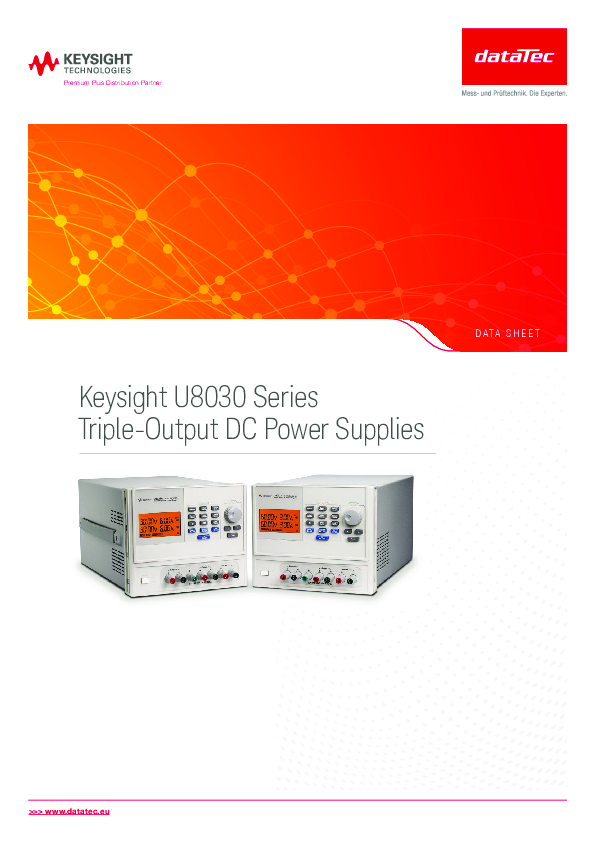

Datasheet
pdf | 0.82 MB

Description

U8032A | Power supply unit, DC, 3 channel, linear 2x 60V / 3A, 5V / 3A, 375 W.

U803XA are power supplies with high output power. They have two variable outputs and a fixed output, which provide the high performance for the user. Using a simple and easy-to-use keypad with programming properties, it is possible to define output sequences in advance. These power supplies are particularly well suited for electronics manufacturing, research and development, as well as for training.
