Keysight U3606B | Multimeter, TRMS, 5½, DCV 0.025% & DC power supply, 30 W.
Manufacturer number: U3606B

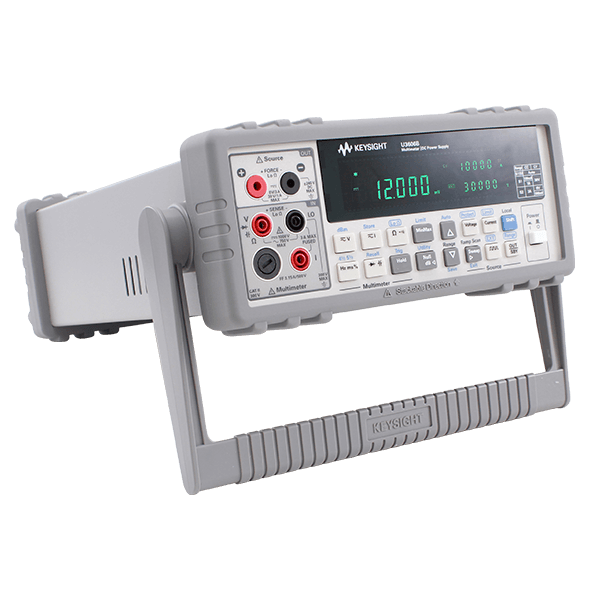

Keysight U3606B | Hybrid table multimeter with power supply in one housing.
- Multimeter: 5½ digits, 120,000 digits
- Fully equipped multimeter with the measurement types: DCV, DCI, ACV, ACI, diode test, resistance, capacitance, frequency
- up to 37 measurements per second
- DC accuracy from 0.025%
- 9 measurement functions (AC & DC V & I, resistance, frequency, diode, continuity, capacitance, zero, dB, dBm, min / max / avg, limit, hold)
- 5 math functions
- 4-wire resistance measurements
- Power supply: 30V / 1A, 30V / 100mA, 8V / 3A or 1000mV / 3 A with ramps and scan function
- Square wave generator: up to 4.8 kHz, 30V
- Sense lines for output voltage
- Load regulation <0.01% + 3 mV; <0.03% + 0.3 mA
- Programming and readout accuracy: <0.05% + 5 mV; <0.15% + 3 mA
- Residual ripple <2 mVrms; <1 mArms
- Overvoltage protection
- Overcurrent protection
- USB and GPIB interface
- Dimensions: 255 x 105 x 329 mm
- Weight: 3.775 kg
- Warranty: 3 years
Technical Data
2-/4-wire: | 4 |
---|---|
AC input: | 100 V - 240 V |
Accuracy voltage measurement AC: | 0,2 % |
Accuracy voltage measurement DC: | 0,025 % |
Additional functions: | Hybrid Tisch-Multimeter, Sense |
Article number: | U3606B |
Autorange: | No |
Bidirectional: | No |
Capacity measuring range: | 1 nF - 10000 µF |
Current measuring range AC: | 10 mA - 3 A |
Current measuring range DC: | 10 mA - 3 A |
Dimensions (L x W x H) (mm): | 334 x 226 x 105 |
Diode test / continuity test: | Yes / Yes |
Display: | numerical |
Frequency measuring range: | < 2 Hz - 10 kHz |
Interfaces: | USB, GPIB |
Model: | U3606B |
Number of outputs: | 1 |
Number of positions: | 5.5 |
Output power (kW): | 0.03 |
Protective devices: | OCP, OVP |
Resistance measuring range: | 100 mΩ - 100 MΩ |
Special features: | Voltage source |
Temperature measurement: | No |
Voltage measuring range AC: | 100 mV - 750 V |
Weight (kg): | 3.77 |
max. Measuring range DC (V): | 1000 |
max. Power (A): | 1 |
max. Voltage (V): | 30 |
min. Measuring range DC (mV): | 19.99 |
Documents & Downloads
Description
U3606B | Multimeter, TRMS, 5½, DCV 0.025% & DC power supply, 30 W.
The Keysight device (formerly Agilent's electronic measurement technology) U3606B multimeter / DC power supply is a combination of a 5½-digit, 120,000-digit multimeter and a 30-watt DC power supply with a square-wave signal generator. Both components can be operated simultaneously and independently of one another. A square wave signal generator is also available at the power supply output. With the U3606B, a lot of space can easily be saved at every workstation. A USB and GPIB interface is available for remote control of the U3606B. Due to its small size, the U3606B can be easily integrated into 19 inch installation systems.
Thanks to the extensive equipment, the U3606B can be used in a variety of ways, including in development, production, quality assurance and educational institutions. The all in one alternative to the Keysight TrueVolt table multimeters.
Lieferumfang
- Power supply + multimeter U3606B
- Power cord
- USB cable
- U8201A Combo Test Lead Kit (for multimeter function)
- Quick Start Guide
- Documentation on CD
- Calibration certificate
Optional accessories:
- U3606A-1CM Rack Mount Kit
- Extended warranty from one year to 3 years
