Keysight U1733P | Handheld LCR meter, 100/120 Hz, 1/10/100 kHz, combo kit

Manufacturer number: U1733P

Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Keysight U1733P
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

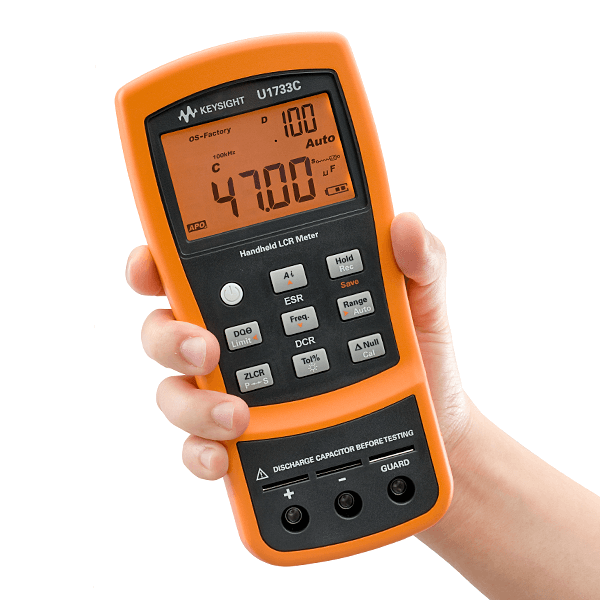

Keysight U1733C | LCR meter "Orange-Line" with test frequencies 100Hz, 120Hz, 1kHz, 10kHz, 100kHz in a package with U5491A bag, U5481B-IR on USB cable, U1780A power supply and U1782 SMD tweezers.

  • LCR resolution 20,000 digits
  • Double display with backlit display
  • Test frequency 100 Hz / 120 Hz / 1 kHz / 10 kHz / 100 kHz
  • Functions: Z, L, C, R, D, Q, Θ, ESR, DCR
  • Inductance: 0.001 µH - 1999.9 H
  • Capacity: 0.001 pF - 19.99 mF
  • Resistance: 100 µΩ - 199.999 MΩ
  • Measurement method parallel or in series
  • Shock-proof housing with rubber border
  • Fold-out stand for easy positioning
  • Power supply 9V battery / approx. 16 hours Runtime or optionally via power supply U1780A
  • Weight 337gr.
  • Dimensions: H184 x W87 x D41mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.62 MB
Userguide
pdf | 1.67 MB

Description

U1733P | Handheld LCR meter, 100/120 Hz, 1/10/100 kHz, combo kit

With the U1730C series of handheld LCR measuring devices from Keysight (formerly Agilent's electronic measuring technology) measurements up to 100 kHz are possible. Measurements can now be carried out faster at the push of a button thanks to the automatic recognition of the components with the new function Ai (Auto identification). For the detailed analysis of the components there is now the ESR mode (Equivalent series resistance) and the Model U1733C also the DCR mode (Direct current resistance). The accuracy of the measurements could be improved twice.

Lieferumfang

  • Scope of delivery with Quickstart Guide, calibration certificate, 2 cables with alligator clips, 9V battery, U5491A bag, U5481B-IR on USB cable, U1780A power supply and U1782B-SMD tweezers.
  • Warranty: 3 years

Accessoires (2 products )

Keysight U1780A
Keysight U1780A
Power supply for U17xx handheld series
1 in stock. Ready to ship in 1 business day
On Request
Keysight U1782B
Keysight U1782B
SMD tweezers for U1401X, U1701X, U173xX
Delivery time upon request
On Request

Alternate products (1 product )

Keysight U1733C
Keysight U1733C
Handheld LCR meter, 100/120 Hz, 1/10/100 kHz
Delivery time upon request
On Request
