Keysight U1731P | Handheld LCR meter, 100/120 Hz, 1 kHz, combo kit

Manufacturer number: U1731P

U1731P
U1731P
U1731P
U1731P
U1731P
U1731P
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

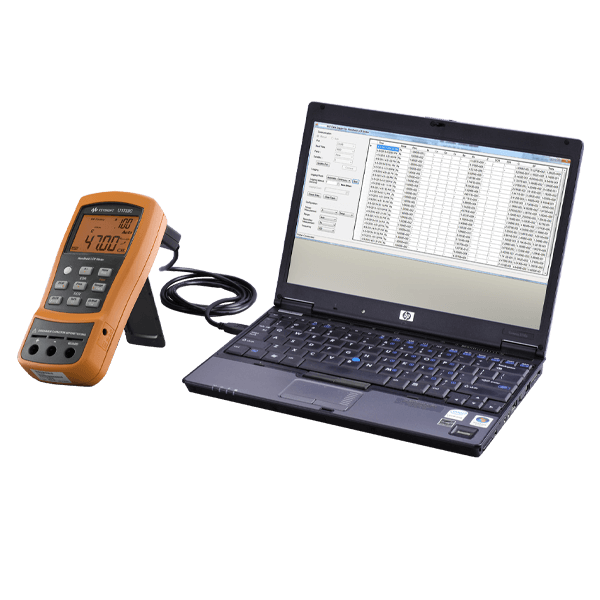

Keysight U1731C | LCR meter "Orange-Line" with test frequencies 100Hz, 120Hz, 1kHz in a package with U5491A pocket, U5481B-IR on USB cable, U1780A power supply and U1782 SMD tweezers.

  • LCR resolution 20,000 digits
  • Double display with backlit display
  • Test frequency 100Hz / 120Hz / 1kHz
  • Functions: Z, L, C, R, D, Q, Θ, ESR
  • Inductance: 0.01 µH - 1999.9 H
  • Capacitance: 0.01 pF - 19.99 mF
  • Resistance: 100 µΩ - 199.999 MΩ
  • Measurement method: parallel or in series
  • Shock-proof housing with rubber border
  • Fold-out stand for easy positioning
  • Power supply 9V battery / approx. 16 hours Runtime or optionally via power supply U1780A
  • Weight 337gr.
  • Dimensions: H184 x W87 x D41mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 1.62 MB
Userguide
pdf | 1.67 MB

Description

U1731P | Handheld LCR meter, 100/120 Hz, 1 kHz, combo kit

With the U1730C series of handheld LCR measuring devices from Keysight (formerly Agilent's electronic measuring technology) measurements up to 100 kHz are possible. Measurements can now be carried out faster at the push of a button thanks to the automatic recognition of the components with the new function Ai (Auto identification). The ESR mode (Equivalent series resistance) is now available for detailed analysis of the components. The accuracy of the measurements could be improved by two times compared to the previous models.

Lieferumfang

  • Scope of delivery with Quickstart Guide, calibration certificate, 2 cables with alligator clips, 9V battery, U5491A bag, U5481B-IR on USB cable, U1780A power supply and U1782B-SMD tweezers
  • Warranty: 3 years

Accessoires (2 products)

U1780A
Keysight
U1780A
Power supply for U17xx handheld series
1 in stock. Ready to ship in 1 business day
On Request
U1782B
Keysight
U1782B
SMD tweezers for U1401X, U1701X, U173xX
Delivery time upon request
On Request

Alternate products (1 product)

U1731C
Keysight
U1731C
Handheld LCR meter, 100/120 Hz, 1 kHz
Delivery time upon request
On Request
