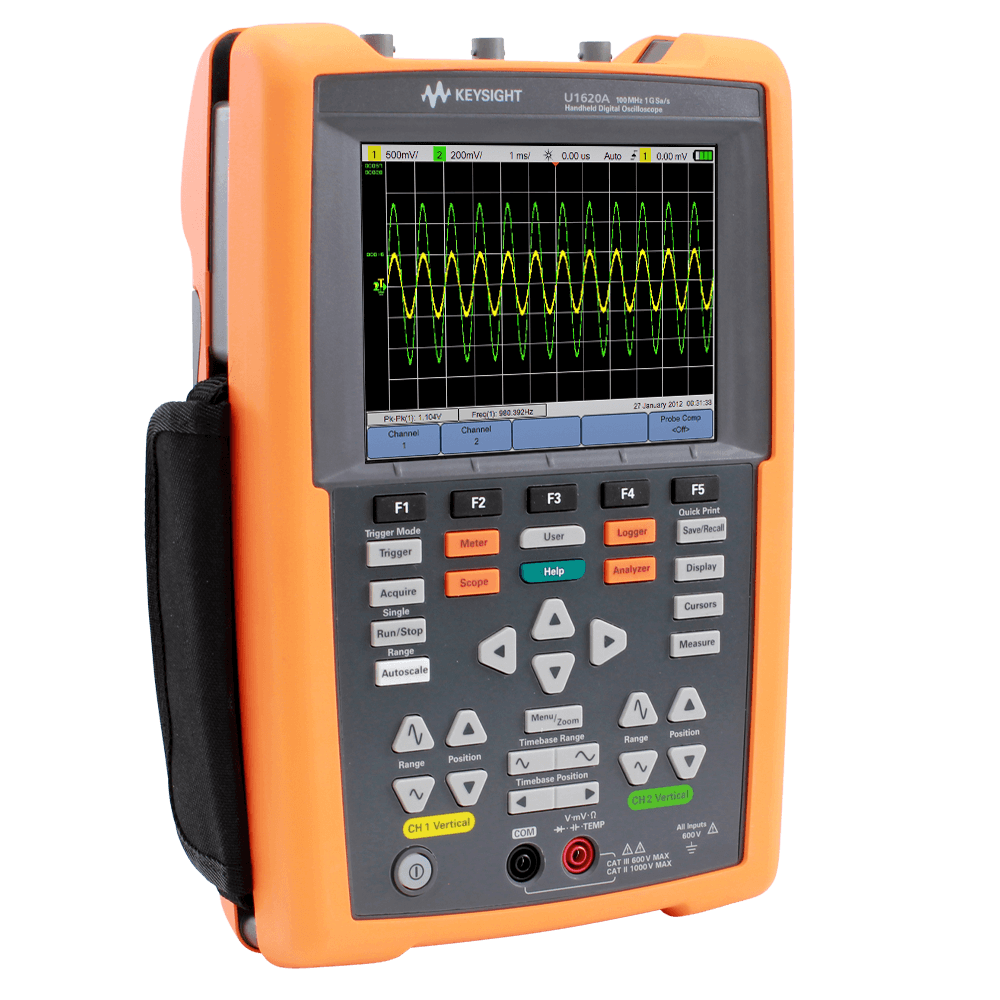

Keysight U1620A | Service oscilloscope, 200 MHz, 2-channel, floating
Manufacturer number: U1620A
2-channel digital handheld oscilloscope U1620A from Keysight (formerly Agilents electronic measurement technology) with 200MHz bandwidth, 2 MegaPoints memory depth, VGA color display and potential-free inputs.
- Bandwidth 200 MHz
- 2 floating inputs
- 600 V CAT III channel to channel separation
- Storage depth 2 megapoints
- Sampling rate 2 GSa / s
- Vertical resolution 8 bits
- Vertical sensitivity: 2 mV / div to 50 V / div
- Trigger system: normal, single, auto
- Trigger types: Edge, Glitch, TV, Nth Edge, CAN, LIN
- 30 automatic measurement functions such as: automatic measurements: delay, duty cycle (+/-), rise / fall time, frequency, period, phase shift, T-max, T-min, width (+/-), amplitude, average, base, peak , Cycle average, maximum, minimum, overshoot, peak-to-peak, undershoot, standard deviation, top, Vrms (AC / DC), active / apparent / reactive power, power factor
- Math functions
- FFT analysis 1024 points
- Brilliant 14.5 cm VGA color display with a wide viewing angle
- 3 selectable views (indoor, outdoor and night view)
- Built-in multimeter and data logger
- Resolution 4.5 digits in the digital multimeter
- Multimeter functions: voltage DC / AC, current AC / DC, resistance, capacitance, continuity, diode, temperature, frequency
- Data logger function to the PC
- 10 selectable languages for operation (German, English, etc.)
- Built-in help system at the push of a button
- Storage option: 10 setups and signal data
- Interfaces: USB 2.0 full-speed host, USB 2.0 full-speed client
- Dimensions W183 x H270 x D65 mm
- Weight <2.5 kg
Technical Data
Article number: | U1620A |
---|---|
Bandwidth (MHz): | 200 |
Counter: | No |
DVM: | Yes |
Dimensions (L x W x H) (mm): | 65 x 183 x 270 |
Function generator: | No |
Interfaces: | USB |
Model: | U1620A |
Number of automatic measurements: | 23 |
Number of channels: | 2 |
Samplerate: | 2 GSa/s |
Screen size: | 14,5 cm |
Screen type: | 640 x 480, VGA TFT |
Storage depth: | 2 MPts |
Triggertypes: | Edge, Glitch, TV, Nth Edge, CAN, LIN |
Vertical resolution: | 8-bit |
Warranty (years): | 3 |
Weight (kg): | 2.5 |
Documents & Downloads
Description
U1620A | Service oscilloscope, 200 MHz, 2-channel, floating
The all in one solution for the service area with built-in multimeter and data logger.
The U1620A digital handheld oscilloscope is a high-performance mobile troubleshooting tool for automation, process control and system maintenance in many industrial areas and automotive service.
This 200 MHz handheld oscilloscope has 2 floating inputs with a separation of up to 600 V for CAT III. With a sampling rate of up to 2 GSa / s and a memory depth of 2 MPoints, more information from signals can be recorded, such as pulse-width modulated circuits, inrush currents and engine start sequences.
The brilliant VGA display can be set in 3 different views ( indoor, outdoor and night view) in order to be optimally equipped for any lighting condition.
The All in One oscilloscope U1620A can also be used as a digital multimeter (DMM) and data logger. With the automatic range selection function you can perform DMM measurements quickly and precisely. The data logging function enables you to perform automatic data logging for DMM and oscilloscope measurements.
Lieferumfang
- Quick start guide, power adapter, Li-ion battery, USB cable, test leads, 2x probes 10: 1, calibration certificate
- Warranty: 3 years
