Keysight U1282A | Multimeter, TRMS, 5 digits, ACV / DCV, Vsense, frequency counter, IP67

Name: U1282A | Multimeter, TRMS, 5 digits, ACV / DCV, Vsense, frequency counter, IP67
Brand: Keysight
SKU: U1282A
Price: 926.0 EUR
Availability: InStock

Manufacturer number: U1282A

1 in stock. Ready to ship in 1 business day

€926.00

plus VAT. €1,101.94 VAT plus shipping costs

or choose one of the following options:

Product inquiries

Keysight U1282A | 4.5-digit TRMS handheld multimeter "Orange-Line". Protection class CAT III 1000V / CAT IV 600V and protection class IP67 with additional measuring functions.

4.5-digit dual display with 60,000 digits
0.025% basic accuracy for DC voltage measurements
Many different measurement functions such as: voltage, current, frequency, capacitance, diode test, resistance, continuity tester and min / max measurement value storage, temperature measurement from -200 ° C to + 1372 ° C (with K-type thermocouple)
Low pass filter
Output for a square wave voltage with pulse width modulation (PWM / Pulse Width Modulation)
Non-contact detection and warning of / against existing mains voltages (Vsense)
Integrated frequency counter
IP67 waterproof and dustproof
Drop test tested up to 3 m drop height
800 hours of battery life
Data acquisition and data report function in conjunction with the downloadable measurement data acquisition software (meter logger software)
Display of measured values in an analog bar chart
Infrared interface with the U1117A Bluetooth adapter for a remote link connection
CAT IV 600 V / CAT III 1000 V
In accordance with: EN / IEC 61010-2-030: 2010 and EN / IEC 61010-1: 2010
Can be extended to a 2-year calibration interval (2-year specification)
Dimensions: height: 218 mm x width: 96 mm x depth: 59 mm
Weight: 710 g (with batteries)
Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Analogue segment display:	Yes
Article number:	U1282A
Backlight:	Yes
Basic precision:	0,025 %
Capacity measuring range:	10 nF - 100 mF
Current measuring range AC/DC:	600µA - 10A / 600µA - 10A
Data memory / logger:	Yes / Yes
Dimensions (L x W x H) (mm):	218 x 96 x 59
Diode test / continuity test:	Yes / Yes
Display Hold / Auto-Hold:	Yes / Yes
Display resolution:	60000
Electrical safety:	CAT III 1000 V, CAT IV 600 V
Frequency measuring range:	99,999 Hz - 9,9999 MHz
Interfaces:	USB Optional: Bluetooth
Min. / Max. Recording:	Yes / Yes
Model:	U1282A
Number of positions:	5
Resistance measuring range:	60 Ω - 600 MΩ
Special features:	built-in frequency counter & square wave generator
Temperature measurement ( PT100 / Type K / Type J):	Type K / Type J
True effective measurement TRMS:	Yes
Voltage measuring range AC/DC:	60 mV - 1000 V / 60 mV - 1000 V
Warranty (years):	3
Weight (kg):	0.701

Documents & Downloads

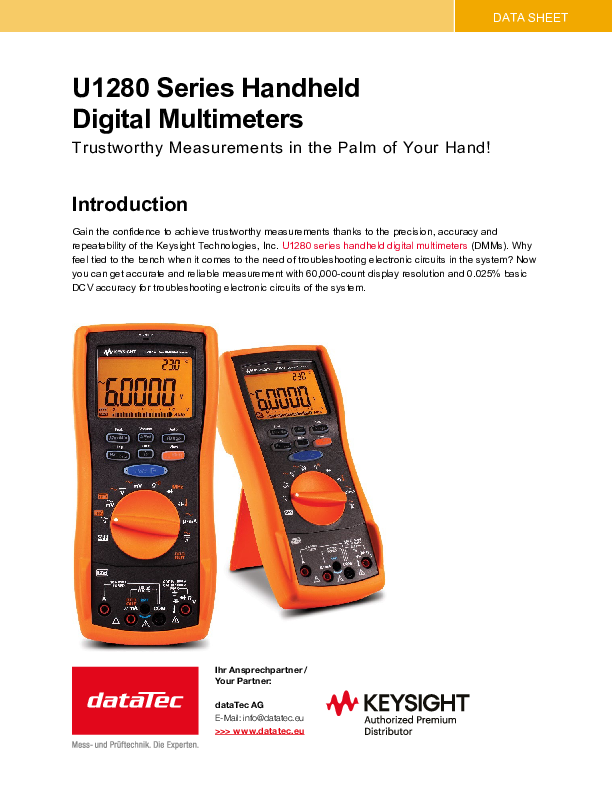

Datasheet

pdf | 2.41 MB

Description

U1282A | Multimeter, TRMS, 5 digits, ACV / DCV, Vsense, frequency counter, IP67

The U1280A series are very robust hand-held digital multimeters with measurement options that are typically required in industry. The series is certified to IP67 and can withstand a fall of approx. 3 m (10 feet). The battery life is 800 hours. In addition, this series offers unique data storage with the functions of corresponding measurement result protocols.

Longer-lasting series of measurements can be transferred to a PC using an infrared interface on a USB cable using the data logging software (meter logger software) installed on a PC. The software can be downloaded from the webpage and thus offers a remote connection.

Lieferumfang

One measuring line each, black and red
Infrared to USB cable adapter U1173B
AAA batteries, 4 pieces
Operating instructions - quick start
Calibration certificate
