Keysight U1233A | Multimeter, TRMS, 4 digits, IP42, DCI / ACI, temperature
Manufacturer number: U1233A
Keysight U1233A | 4-digit "Orange Line" hand multimeter with voltage sensor, Z-Low and built-in LED lamp. Protection class CAT III 600V.
- Display resolution: 6,000 digits
- Range: Automatic / Manual
- Measurement: voltage AC + DC, current AC + DC, resistance, capacitance, frequency, temperature, continuity and diode
- Built-in LED lamp (for illuminating the measuring surface)
- Flashing backlight - ideal for continuity tests in noisy environments
- Switchable orange display backlight
- VSense (volt sensor)
- Interface IR / USB - with optional adapter U1173A connection to the PC
- Hold / storage function of the measured value
- Z Low measurement: lower input resistance to interference voltages
- Non-slip rotary switch for easy setting of the measuring function
- Blinking lighting and beep when an external voltage is applied (only with U1233A)
- Bar graph display
- Protection class: CAT III 600V
- Dimensions (L x W x H): 169 mm × 86 mm × 52 mm
- Weight: 371 gr.
- Warranty: 3 years
Technical Data
Analogue segment display: | Yes |
---|---|
Article number: | U1233A |
Backlight: | Yes |
Basic precision: | 0,5 % |
Capacity measuring range: | 1000 nF - 10 mF |
Current measuring range AC/DC: | 60µA - 10A / 60µA - 10A |
Data memory / logger: | Yes / Yes |
Dimensions (L x W x H) (mm): | 169 x 86 x 52 |
Diode test / continuity test: | Yes / Yes |
Display Hold / Auto-Hold: | Yes / Yes |
Display resolution: | 6000 |
Electrical safety: | CAT II 600 V, CAT III 600 V |
Frequency measuring range: | 99,99 Hz - 99,99 kHz |
Min. / Max. Recording: | Yes / Yes |
Model: | U1233A |
Number of positions: | 4 |
Resistance measuring range: | 600 Ω - 60 MΩ |
Special features: | IP42 |
Temperature measurement ( PT100 / Type K / Type J): | Type K |
True effective measurement TRMS: | Yes |
Voltage measuring range AC/DC: | 600 mV - 600 V / 600 mV - 600 V |
Warranty (years): | 3 |
Weight (kg): | 0.371 |

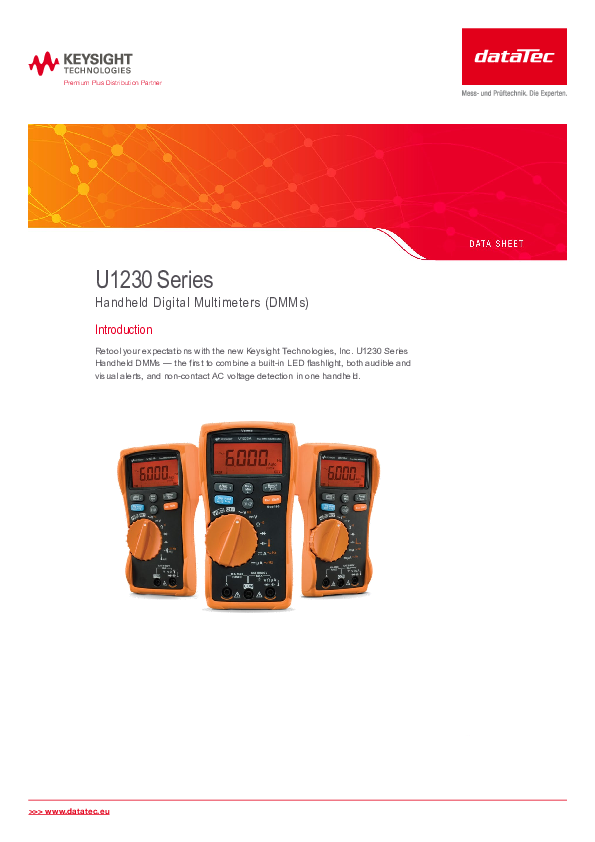

Documents & Downloads
Description
U1233A | Multimeter, TRMS, 4 digits, IP42, DCI / ACI, temperature
The ergonomically shaped Keysight (formerly Agilent's electronic measurement technology) TRMS handheld multimeter from the U1230A series has outstanding properties for difficult, loud or dark areas of application and environments.
The built-in LED lamp on the back or the good adjustable backlight helps with service operations and measurements in dark environments. For noisy environments, the continuity measurement to the beep offers a function of the flashing backlight so that your test is safe (with U1233A).
In addition, you can use the multimeter as a data logger with the built-in IR interface and the optional U1173A IR / USB cable. This enables you to record and evaluate measured values inexpensively with your laptop / PC.
Lieferumfang
- Multimeter
- Test leads
- Quick start guide
- Calibration certificate
- battery
