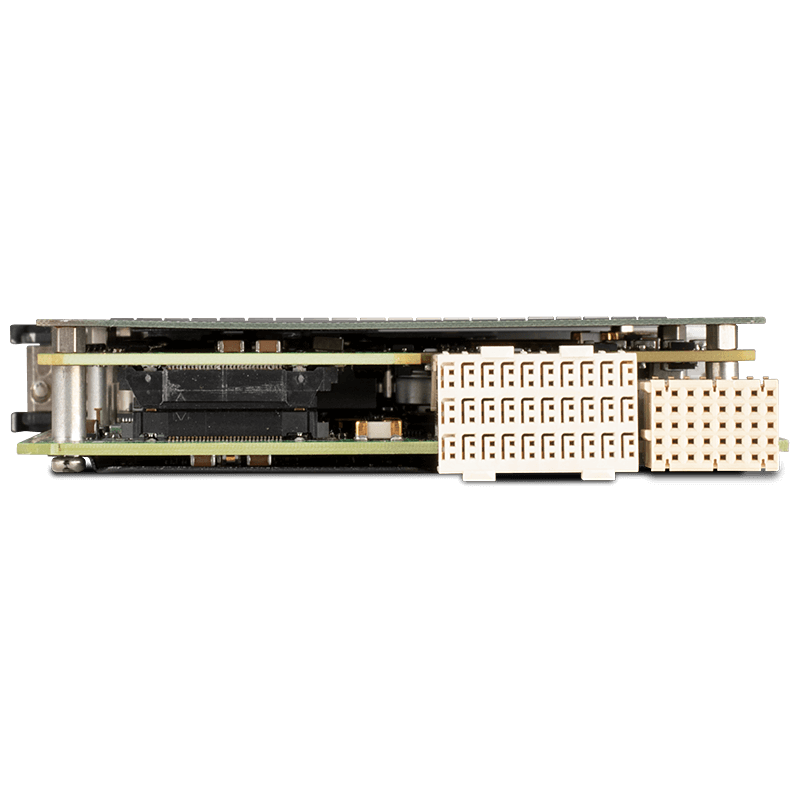

The 5 channel precision source/measure unit (SMU) PZ2131A of the Keysight PZ2100 series is a module for the PZ2100A mainframe.
- Up to 20 Ch in 1U rack height
- 100 μs pulse width
- Fast digitizer mode with a sampling rate of up to 500 kSa/s
- Low noise down to 25μVrms with PX0107A
In addition to the module presented here, the Keysight PZ2100 series has other modules:
- PZ2110A High-Resolution SMU with 1.25 MSa/s, 10 fA, 210 V, 315 mA DC/pulse
- PZ2120A High-Speed SMU with 1 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse
- PZ2121A High-Speed SMU with 15 MSa/s, 100 fA, 60 V, 3.5 A DC/10.5 A pulse
- PZ2130A 5 Channel Precision SMU with 100pA, 30V, 500mA DC
