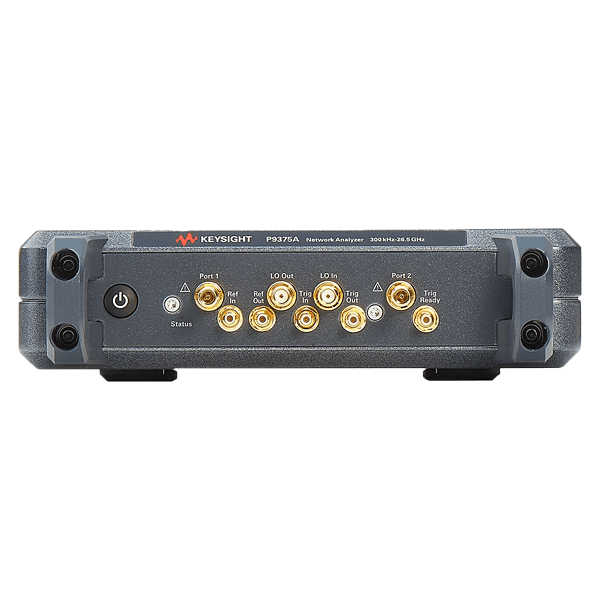

Keysight P9375A | USB vector network analyzer P9000 series for PC, 2- / 4-port, 300 kHz to 26.5 GHz
Manufacturer number: P9375A
On Request
Keysight Streamline P9375A | USB vector network analyzer, 2/4-port, 300 kHz to 26.5 GHz.
- 2-port USB vector network analyzer
- Frequency range: 300 kHz to 26.5 GHz
- Compact USB design with high-speed USB 3.0 connection
- Six available bandwidth options for optimal adaptation to your measurement applications
- Possibility to expand to 4 ports (2x P937xA)
- Frequency and software upgrades possible at any time
- Familiar graphical user interface and measurement functionalities as with other Keysight VNA
- Compatible with ECal for quick and easy calibration
- High measuring speed of 24 msec (201 measuring points with calibrated 2-port measurement and an intermediate frequency bandwidth of 100 kHz)
- Accuracy: ± 1 ppm
- Dynamic range:> 114 dB at 9 GHz,> 110 dB at 20 GHz (10 Hz ZW bandwidth)
- Trace noise: <0.003 dBrms (1 kHz IF bandwidth)
- Temperature stability: 0.005 dB / ° C
- Weight: 1.9 kg
- Dimensions: 176 x 48 x 333 mm (W x H x D)
- Compatible operating systems: Windows 7 or Windows 10 (64 bit)
- Warranty: 3 years
Technical Data
Article number: | P9375A |
---|---|
Crosstalk: | Yes |
Dimensions (L x W x H) (mm): | 333 x 176 x 48 |
Display: | 1024 x 768 minimum, extern |
IF-BW: | 1 Hz - 1,2 MHz |
Input impedance: | 50 Ω |
Interfaces: | USB, SMB |
Measuring speed for 201 points: | 0,024 s |
Min. output power: | -5 dBm |
Model: | P9375A |
Number of ports: | 2 |
Special features: | Vector network analyzer, Control via external PC |
Warranty (years): | 3 |
Weight (kg): | 1.9 |
max. Frequency (GHz): | 26.5 |
min. frequency (kHz): | 300 |
Documents & Downloads
Description
P9375A | USB vector network analyzer P9000 series for PC, 2- / 4-port, 300 kHz to 26.5 GHz
Exceptional performance in a compact design: The new 2-port ( possibility to expand to 4 ports ) USB network analyzers (VNA) of the Streamline series P937xA from Keysight offer high performance and user-friendliness in a space-saving USB design. It is controlled via an external PC, which enables particularly powerful data processing and extensive application functions.
Examples of use:
- Manual inspection of passive components (e.g. antennas, filters, cables, connectors, adapters)
- Manufacturing-related tests for wireless components as well as in the aerospace industry
- Standard-compliant design validation
The compact 2-port USB vector network analyzer P9375A with a bandwidth of 300 kHz to 26.5 GHz fulfills demanding measurement requirements, e.g. B. in terms of dynamic range, measuring speed, trace noise or temperature stability. The firmware used is based on the same intuitive user interface as other Keysight network analyzers, which reduces the cost of changing devices.
