Keysight N9961A | FieldFox handheld µW spectrum analyzer 9 kHz to 44 GHz, USB 2.0, LAN, rechargeable battery

Manufacturer number: N9961A

Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Keysight N9961A
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight N9961A | FieldFox, High Frequency Spectrum Analyzer 300 kHz to 44 GHz.

  • Frequency range: 300kHz to 44GHz
  • Directivity >42dB
  • Dynamic range 104 dB
  • DANL: -153 dBm (specified), typical -158 dBm at 2.8 to 4.5 GHz
  • Typical output power (6.5 to 18 GHz): 4 dBm (frequency dependent)
  • Flat output power frequency response (± 0.5 dB) at an output power of -15 dBm in the frequency range 300 kHz to 44 GHz
  • Return Loss and VSWR (Voltage Standing Wave Ratio) measurements
  • Output power adjustable in 1 dB steps
  • Built-in power meter: 5 kHz to 44 GHz
  • Optional power measurement by Keysight USB RF power sensor. Frequency range depends on the type of power meter used)
  • Battery life 3.5 hours
  • Closed housing, dustproof, without fans etc.
  • Water repellent; resists salty and humid influences
  • Meets the requirements of: IEC/EN 60529, MIL-PRF-28800F Class 2 and MIL-STD-810G, Method 1.5, Procedure I (conditions for use in potentially explosive atmospheres)
  • Dimensions: Width: 188mm, Height: 292mm, Depth: 72mm
  • Weight: 3.2kg

Typical areas of application:

  • satellite communications
  • mobile communication
  • radar technology
  • Aerospace and defense technology
  • Active and passive component and module test

Options:
For cable and antenna test:

  • Return Loss and VSWR (Voltage Standing Wave Ratio) measurements

For use as a spectrum analyzer:

  • Extended range for transmission analysis (ERTA / Extended Range Transmission Analysis)
  • Tracking generator over the complete device frequency range
  • preamp
  • Interference analyzer and spectrogram
  • Timegating option for spectrum measurements

For RF power measurements:

  • Frequency dependent USB RF power measurements
  • USB interface for connecting USB RF power sensors
  • Integrated power meter to measure over a user-definable frequency range
  • Pulse measurements (radar) with a peak RF power meter

For general system properties:

  • GPS receiver
  • Variable DC voltage source 1 V to 32 V, 650 mA max and 8 W max
  • remote control

Note: This list does not claim to be complete. Before ordering, please consult our office staff.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

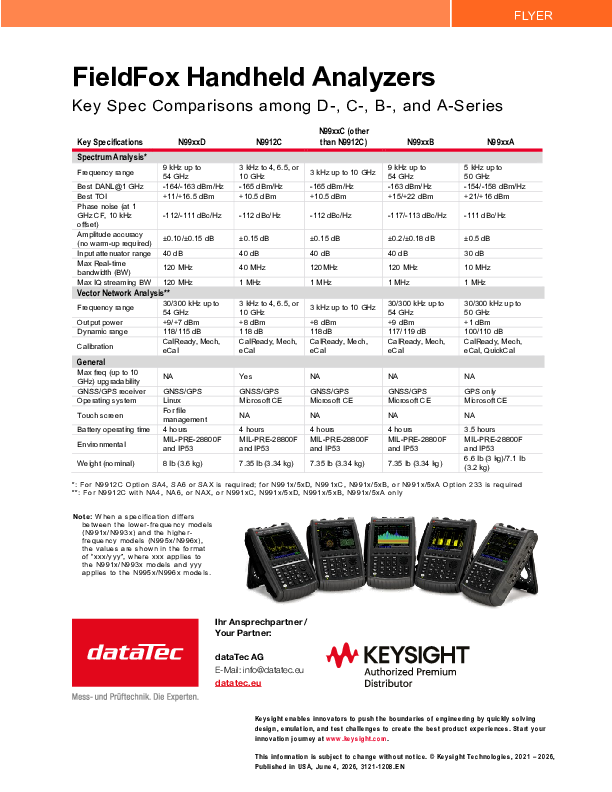

Overview
pdf | 0.35 MB
Datasheet
pdf | 2.92 MB
User report
pdf | 1.15 MB
Userguide
pdf | 4.37 MB
Configuration guide
pdf | 0.91 MB

Description

N9961A | FieldFox handheld µW spectrum analyzer 9 kHz to 44 GHz, USB 2.0, LAN, rechargeable battery

The Keysight N9961A Fast Spectrum Analyzer is a mobile, handheld device that includes two types of devices: a spectrum analyzer and an RF power meter. This device is intended for rough field use in its basic configuration for spectrum measurements and HF pulse measurements (radar). The integrated HF power measurement option offers measurement of the HF signal power at the push of a button over a bandwidth that can be defined by the user. With an optional extension, USB power sensors can also be connected directly. By using USB peak power sensors, the pulse peak power and the average power can be measured on radar systems in order to have the ratio of peak power to average power displayed directly.

With this device you have Keysight quality and accuracy in your hands - because it is portable, fits well and is easy to use.

The device can be adapted to the respective application using further optional and retrofittable configuration options (see list at the end of this description).

It should be emphasized that this device can be equipped with a tracking generator covering the entire frequency range of the device.
