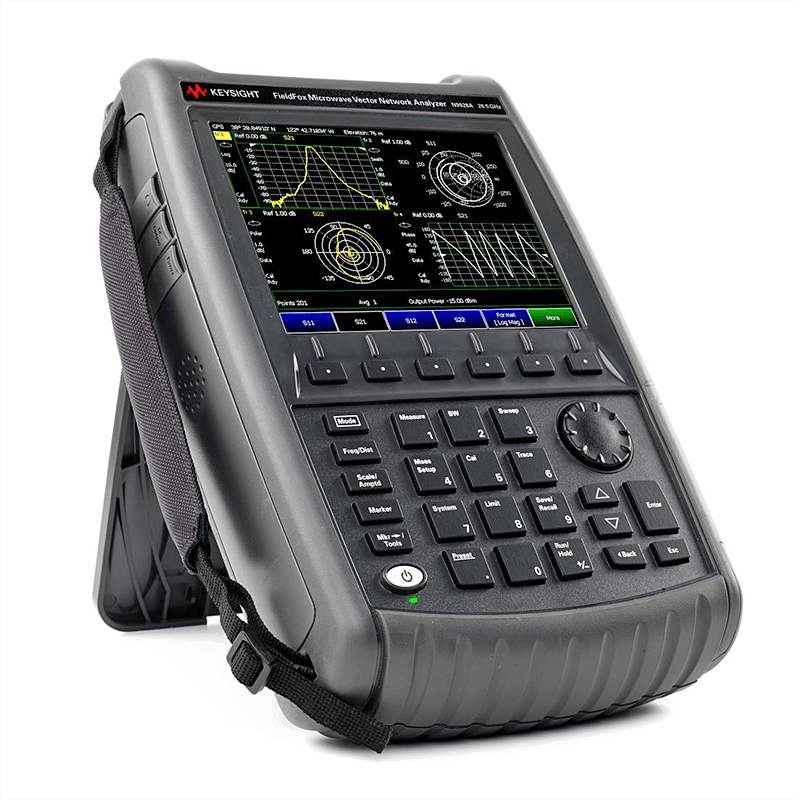

Keysight N9928A | FieldFox handheld µW network analyzer 30 kHz to 26.5 GHz, USB 2.0, LAN, rechargeable battery

Manufacturer number: N9928A

Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Keysight N9928A
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Related Articles

Keysight N9928A | FieldFox, handheld vector network analyzer 30 kHz to 26.5 GHz.

Vector network analyzer:

  • 30kHz to 26.5GHz
  • Directivity >42 dB, dynamic range 100dB
  • Flat frequency response of the output power (± 1 dB) over the entire frequency range, output power adjustable in 1 db steps
  • Transmission and reflection measurements (S21, S11) or with optional 2-port measurement (S21, S11, S12, S22)

Cable and Antenna Analyzer (CAT) and Vector Network Analyzer (VNA):

  • 30kHz to 26.5GHz
  • Cable attenuation, reflection loss, distance to fault

Vector Volt Meter:

  • 30 kHz to 26.5 GHz, comparing phase and electrical cable length
  • Power measurement by a USB power sensor: 9 kHz to 24 GHz (depending on the type of sensor used)
  • Built-in power meter: 5 kHz to 26.5 GHz

General properties:

  • Quick-Cal: built-in calibration routines - no calibration components are required
  • CalReady: integrated test connection for S-parameter determination and for error distance measurement in cable measurements
  • Optional GPS receiver
  • Optional: Variable DC voltage source 1 V to 32 V, 650 mA max and 8 W max
  • Battery life 3.5 hours
  • Weight: 3.0kg
  • Operating temperature range: -10°C to 55°C

Typical areas of application:

  • satellite communications
  • mobile communication
  • Measurement of the connection in a communication system (e.g. GSM) to the operative backbone system
  • radar technology
  • Aerospace and defense technology
  • Active and passive component and module test

Designed for rough use:

  • Closed housing, dustproof, without fans etc.
  • Water repellent; resists salty and humid influences
  • Meets MIL-PRF-28800F Class 2
  • Meets MIL-STD-810G, Method 511.5 Procedure I requirements for use in potentially explosive atmospheres (type test)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Overview
pdf | 0.35 MB
Datasheet
pdf | 2.92 MB
User report
pdf | 1.15 MB
Userguide
pdf | 4.37 MB
Configuration guide
pdf | 0.91 MB

Description

N9928A | FieldFox handheld µW network analyzer 30 kHz to 26.5 GHz, USB 2.0, LAN, rechargeable battery

The fast field fox N9928A from Keysight is a mobile handheld device for rough field use for transmission and reflection measurements , S11, S21. With this instrument, you have Keysight (formerly Agilent's electronic metrology) quality and accuracy in your hands - because it's portable, feels good in your hand and is easy to use.

With optional configuration options, the system can be expanded into a 2-port S-parameter test system or it can optionally be configured so that antenna and cable tests are possible. Furthermore z. B. the optional installation of an integrated power meter, a vector voltmeter, a GPS receiver and a variably adjustable DC voltage source possible.
