Keysight N6786A | Dual source / measurement module (SMU), 20 V / ± 8A / 80 W, for N6700C / N6705C

Manufacturer number: N6786A

Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Keysight N6786A
Delivery time upon request

€8,961.00

plus VAT. €10,663.59 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight N6786A | 80 W SMU module for the model series of the modular MPS power system.

  • Stable and trouble-free source and sink
  • Output voltages 20 V / 15 V / 10 V / 6 V
  • Output currents: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A
  • Measures all modes within a sweep
  • Integrated digitizer, measures U, I and power approx. Every 5 µs
  • Software 14585 offers additional analysis functions
  • Interfaces via mainframe N6705: LAN, USB, GPIB, (LXI Class C)
  • Accuracy, voltage measurement: 0.025% + 1.8 mV
  • Accuracy, current measurement: 0.025% +100 nA
  • Arbitrary functions (for voltage and current): sine, step, pulse, ramp, step function, exponential function, user-specific
  • Scope function: up to 200 kHz, up to 512 k points, 18 bit resolution
  • Data logger function: measurement interval 20 µs to 60 s, 500 million readings
  • Storage: 4 GB internal, up to 2 GB on external USB storage
  • Relay at the output to switch off the module

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 0.62 MB
Configuration guide
pdf | 1.46 MB

Description

N6786A | Dual source / measurement module (SMU), 20 V / ± 8A / 80 W, for N6700C / N6705C

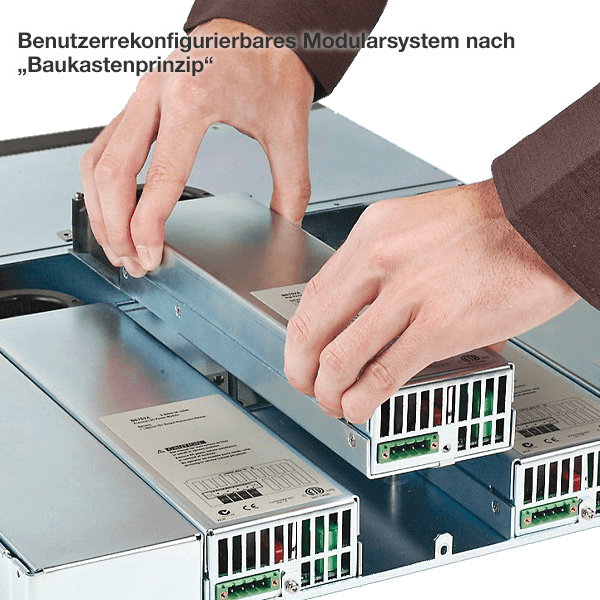

With this 2-quadrant module, which can be used in the mainframe of the MPS (Modular Power System) N670x, several nominal output voltages 20 V / 15 V / 10 V / 6 V with currents of ± 4 A / ± 5 Use A / ± 6.7 A / ± 8 A to supply external circuits.

With this SMU (Source Measure -) module, mobile devices can be supplied with energy and tested at the same time. The output power or the power delivered to the module can vary from 20 W to 80 W.
