Keysight N4696D | ECal module, 2-port, 7 mm, DC or 300 kHz - 18 GHz

Manufacturer number: N4696D

Keysight N4696D
Keysight N4696D
Keysight N4696D
Keysight N4696D
Keysight N4696D
Keysight N4696D
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Related Articles

Keysight N4696D | ECal electronic calibration module for network analyzers, DC, 300 kHz to 18 GHz, 2-port calibration, 7 mm connector.

  • Frequency range 300 kHz to 18 GHz
  • Optional extension of the frequency range to DC (option 0DC)
  • Connector: 7 mm
  • Fast and accurate precision calibration that is traceable to the NIST standard
  • Complete 2-port calibration without the hassle of changing connections
  • USB interface for direct control of the module with the Keysight network analyzers of the ENA, PNA, PXI VNA and Fieldfox series

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

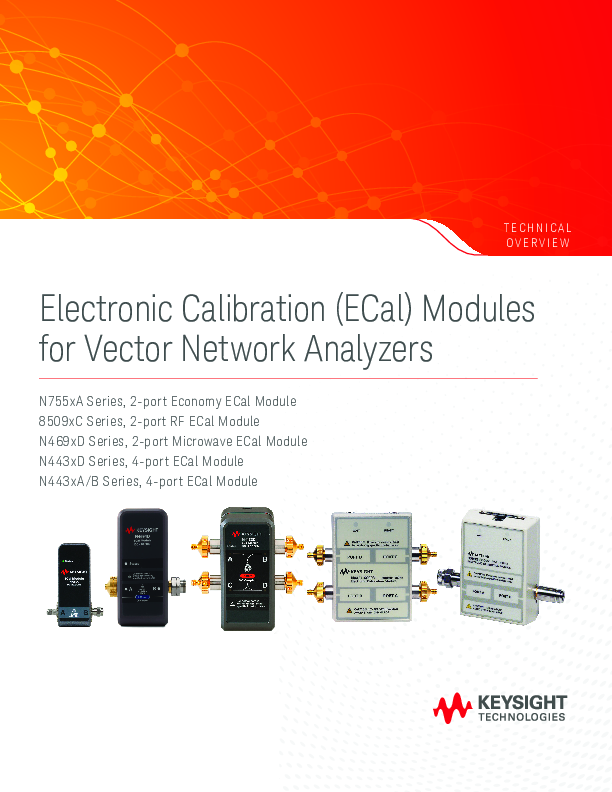

Overview
pdf | 1.26 MB
Datasheet
pdf | 1.92 MB

Description

N4696D | ECal module, 2-port, 7 mm, DC or 300 kHz - 18 GHz

Calibrate your Keysight network analyzer with high precision and accuracy. The N469xD series ECal electronic calibration modules enable quick and easy calibration with a single connector. The modules are controlled directly from your vector network analyzer, so no external PC is required.

The frequency range of the ECal calibration modules can optionally be expanded to DC (option 0DC). This enables particularly simple and fast calibration over a wide frequency range of up to 67 GHz without having to make numerous connections during the calibration process. For example, the calibration modules are particularly suitable for modeling broadband devices or for analyzing signal integrity in the time domain.
