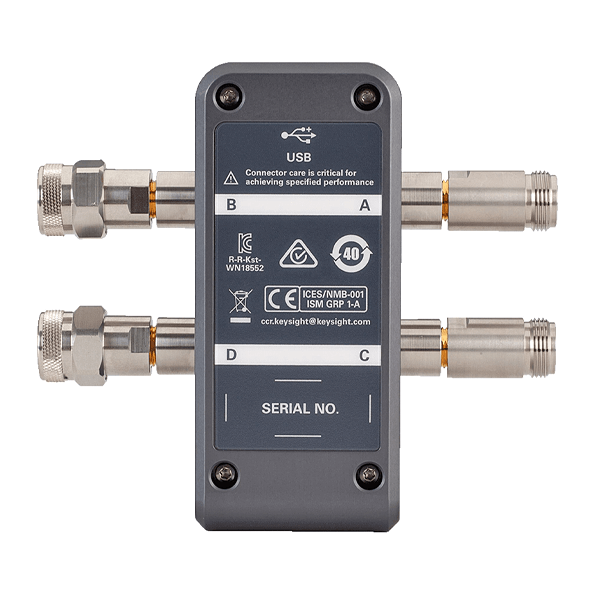

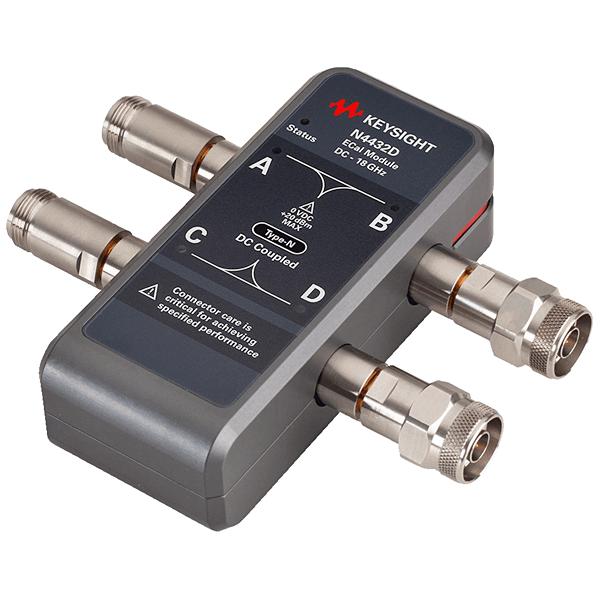

Keysight N4432D | Electronic RF calibration module (ECal), 300 kHz to 18 GHz, 4 connections

Manufacturer number: N4432D

N4432D
N4432D
N4432D
N4432D
N4432D
N4432D
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries
Highlights Documents / Downloads Description

Keysight N4432D | Electronic RF calibration module (ECal), 300 kHz to 18 GHz, 4 connections

Product Features:

  • Precise 4-port RF ECal module with high accuracy
  • Frequency coverage from DC/300 kHz to 18 GHz
  • Quick, easy and accurate calibration with 4 ports
  • Supports a variety of connectors, including Type-N and 3.5 mm plugs. The selection of connectors covers both female and male types
  • Direct control of Keysight vector network analyzers via USB

Documents & Downloads

Overview
pdf | 1.26 MB

Description

N4432D | Electronic RF calibration module (ECal), 300 kHz to 18 GHz, 4 connections

The Keysight N4432D is a 4-port precision ECal module that supports the selection of Type-N and 3.5 mm connectors mixed up to 18 GHz. Choose either female-female, male-male or female-male connections.

The 0DC option extends the calibration frequency range down to DC for wideband device modeling or time domain and signal integrity analysis using extended time domain analysis on Keysight network analyzers.

Perform a full 4-port calibration in less than half the time and number of connections compared to traditional mechanical calibration kits. Simply connect the ECal module to the vector network analyzer via USB and the firmware controls the rest, reducing the risk of operator error. Reduce connector wear and tear and lower repair costs for test port connectors and calibration standards.
