Keysight N3306A | DC load module for N330xA 60V / 120A / 600W

Manufacturer number: N3306A

Keysight N3306A
Keysight N3306A
Keysight N3306A
Keysight N3306A
11 in stock. Ready to ship in 1 business day

€4,210.00

plus VAT. €5,009.90 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries % Additional offers for this product
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Programmable 1-channel DC load module N3306A for Keysight (formerly Agilent's electronic measurement technology) DC load series N3300A with an input 0-60V / 0-120A.

  • Input current 0 to 120 A.
  • Input voltage 0 to 60 V.
  • Maximum power 600 W.
  • Accuracy constant current: 0.1% + 37.5 mA
  • Accuracy constant voltage: 0.1% + 8 mV
  • Residual ripple current 6 mArms
  • Residual ripple voltage 8 mVrms
  • Constant current operation (CC)
  • Constant voltage operation (CV)
  • Constant resistance operation (CR)
  • Minimum voltage at maximum load current 1.4 V
  • Remote sensing (sense) possible
  • Possibility of reading back current and voltage
  • stable operation down to 0 V possible
  • Surge protection (OVP)
  • Overcurrent protection (OCP)
  • Overpower protection (OPP)
  • Overtemperature protection (OTP)
  • Parallel operation of the modules for higher current possible
  • Sequence operation possible
  • Analogue interface for remote control including trigger input
  • Load connections: rotary clamp connection
  • GPIB and RS-232 interface for PC remote control
  • compatible with DC load basic device N3300A and N3301A

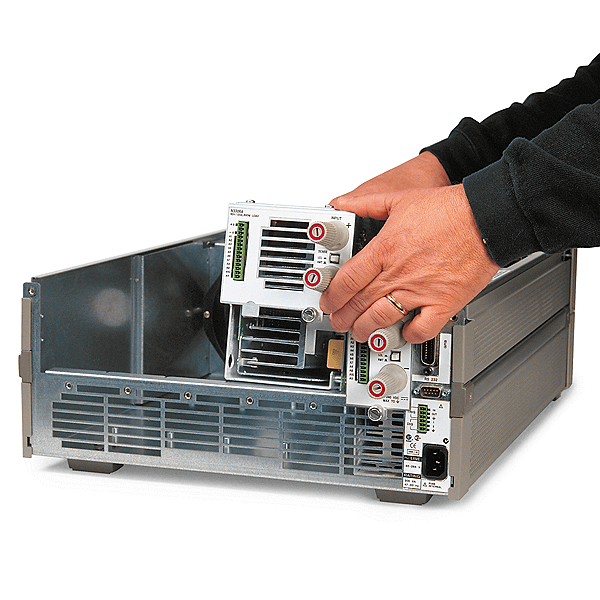

  • Size / space requirement: two slots in the basic device N3300A and N3301A
  • Weight: 4.6 kg
  • Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.70 MB

Description

N3306A | DC load module for N330xA 60V / 120A / 600W

The DC load modules of the N3300 series are suitable for universal use in many applications such as the testing of power supplies. The measuring system built into the DC load as standard means that there is no need to use an external DMM to monitor the measured values. Thanks to the modular structure, the DC load can be configured individually.

Lieferumfang

  • DC load module N3306A
  • Analog interface connector
  • documentation

Available options:

  • N3306A-UJ1 load connections 8mm screw connection (only possible when purchasing a new N3306A)
