Keysight MSOX3024A

Manufacturer number: MSOX3024A

Keysight MSOX3024A (phase-out model) | 4- / 16-channel mixed-signal oscilloscope with a bandwidth of 200 MHz, up to 4 GS / s sampling rate and a signal acquisition rate of 1,000,000 [1 million] signals / s.

  • 4 analog and 16 digital inputs
  • Bandwidth 200MHz (subsequent bandwidth upgrade up to a maximum of 500MHz possible)
  • Sampling rate 2 GS / s per channel, 4 GS / s with half the number of channels (interleaved)
  • Storage depth 2 megapoints (optionally expandable up to 4 megapoints)
  • MegaZoom IV memory and display technology for fast navigation and signal analysis
  • highest signal acquisition rate of 1,000,000 signals / s for the safe acquisition of rare events
  • Real-time signal acquisition
  • Vertical resolution 8 bit / up to 12 bit in high resolution mode
  • 35 automatic measurement functions and snapshot function
  • Powerful trigger options
  • Dual bus decoding of Flexray, I²C, SPI, CAN, LIN, RS232 / RS485 / UART, I²S buses (with optional modules)
  • Different math functions
  • FFT with up to 64 kpts resolution: Hanning, Flat Top, Rectangle, Blackman-Harris
  • Standard built-in 3 digit digital voltmeter (DSOXDVM)
  • Internal frequency counter over any analog or digital channel, resolution 5 digits, max. Frequency and bandwidth
  • Integrated Education Training Kit (DSOXEDK)
  • Keysight autoprobe input for connecting active Keysight probes or classic passive probes with BNC connector or BNC connector with read out
  • Input impedance selectable 1MΩ or 50Ω
  • Brilliant 21.6 cm color wide screen in WVGA (800 x 480px) resolution
  • Adjustable persistence: Off, infinite, variable (100ms - 60s)
  • 64 brightness levels to show the frequency of signal details
  • "Push buttons" and direct menu buttons for quick and intuitive operation
  • Graphical user interface and help function in German (11 languages)
  • Whisper-quiet operation for relaxed and concentrated work.
  • USB 2.0 high-speed device port on the rear panel
  • One USB 2.0 high-speed host port on the front panel and one on the rear panel (supports memory sticks and printer)
  • Storage of setup files / settings
  • Save signal data and / or transfer to PC of signal data in * .csv
  • Save and / or transfer screenshots to PC in 8/24 bit * .bmp and 24 bit * .png
  • Intuilink SW / Toolbars for fast processing of the data in Microsoft Word / Excel
  • Housing dimensions: W 380.6 x H 204.4 x D 141.5 mm
  • Weight 3.85 kg
  • Connection 100-240 V AC, 50/60 Hz, 100 W max.
  • Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Description

MSOX3024A


We recommend the Keysight 3000T X series successor oscilloscopes. Here are the models: Keysight 3000T X-Series.


The oscilloscope redefined: more oscilloscopes for the same money - thanks to revolutionary technology. The Keysight (formerly Agilent's electronic measurement technology) InfiniiVision 3000 X-Series oscilloscopes offer features and upgrade options that you won't find in any other oscilloscope in this price range. These oscilloscopes offer the largest screen , the largest memory and the highest signal update rate in this class.

These oscilloscopes are unusually versatile because they combine the functions of many measuring devices: oscilloscope, logic timing analyzer and WaveGen function generator (optional). Your investment is optimally protected: all models can be upgraded in every respect - including bandwidth. Ideal oscilloscopes for use in laboratories / research / development / production.

Lieferumfang

  • 1 x mixed-signal oscilloscope 3000 X
  • 4 x passive probes including accessories
  • 16 channel logic probe including accessories for contacting
  • Documentation (user manual) on CD
  • Power cord
  • Traceable calibration certificate

Options / extensions:

  • Bandwidth upgrade
  • Memory upgrade
  • Optional interfaces: GPIB, LAN, VGA
  • Optional built-in 20 MHz arbitrary / function generator (can be retrofitted)
  • Optional segmentable memory and mask test
  • Optional serial bus decoding for Flexray, CAN, I²C, SPI, LIN, RS232 / RS485 / UART, I²S, MIL-STD 1553 etc.
  • Advanced math, application for performance analysis

Accessoires (31 products )

Keysight BV9001B
BenchVue full version, PC measurement and evaluation software
Ready to ship in 5 to 10 business days
On Request
Keysight DSOXEDK
Training Kit Education for X Series 2/3/3/4 / 6000A & 3000T, retrofit option EDK
Ready to ship in 5 to 10 business days
€460.00
Keysight N6456A
Rackmount kit for X2000A and X3000A / T series
5 in stock. Ready to ship in 1 business day
€457.00
Keysight DSOX3SGM
Segmentable memory for 1,000 segments, for 3000 X oscilloscopes
Delivery time upon request
€716.00
Keysight DSOXGPIB
GPIB module for X2000A / X3000A / T series / retrofitting (option 806)
2 in stock. Ready to ship in 1 business day
€672.00
Keysight N6457A
Carrying case with front cover for oscilloscope X2000A and X3000A / T series
Delivery time upon request
€196.00
Keysight DSOX3MEMUP
Memory upgrade from 2 to 4 Mpts, for 3000 X oscilloscopes
Ready to ship in 5 to 10 business days
€675.00
Keysight DSOX3WAVEGEN
Arb. Function generator option, 20 MHz, 1-channel, for 3000T X oscilloscopes
Ready to ship in 5 to 10 business days
€883.00
Keysight DSOXLAN
VGA / LAN module for X2000A / X3000A / T series / retrofitting (option 805)
9 in stock. Ready to ship in 1 business day
€266.00
Keysight DSOX3BW34
Bandwidth upgrade from 200 MHz to 350 MHz for oscilloscope 3000X 4 channel
Delivery time upon request
€5,381.00
Keysight MSOX3014A-A6J
Calibration according to ANSI Z540
Delivery time upon request
€253.00
Keysight N2750A
Probe, active, differential 10X, 1.5GHz, InfiniiMode series, autoprobe
Delivery time upon request
On Request
Keysight N2797A
Probe, active, 1.5 GHz, single-ended, -40 to +85 ° C, AutoProbe
1 in stock. Ready to ship in 1 business day
€4,093.00
Keysight N2820A
Current probe, auto sample, 50µA to 5 A, DC to 3 MHz, 2 channels
1 in stock. Ready to ship in 1 business day
On Request
Keysight N2821A
Current probe, auto sample, 50µA to 5 A, DC to 3 MHz, 1 channel
1 in stock. Ready to ship in 1 business day
On Request
TTI I-PROBER520
Probe / current probe, 10 mA to 20 A, DC - 5 MHz, BNC
1 in stock. Ready to ship in 1 business day
On Request
Keysight N7020A Power Rail Probe, 2 GHz
1 in stock. Ready to ship in 1 business day
€4,560.00
Keysight 10076C
Probe, passive, high voltage 100X, 500MHz, 3.7 kV, BNC readout
Delivery time upon request
€734.00
Keysight 1147B
Current clamp, BNC, 15 A DC - 50 MHz, auto sample
Delivery time upon request
€3,725.00

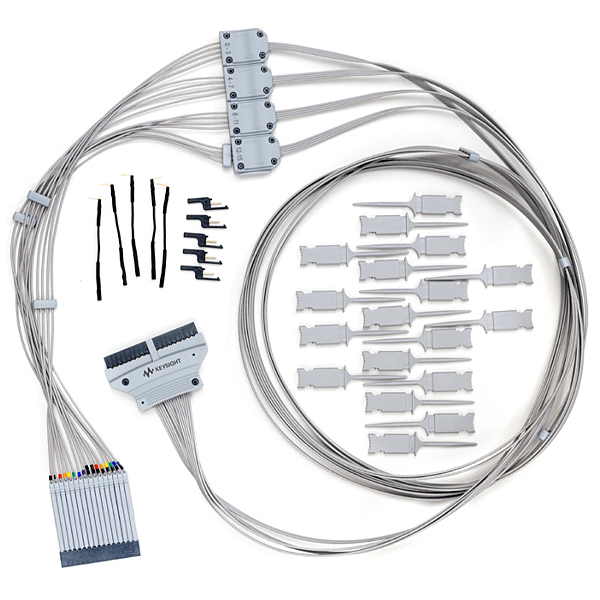

Keysight N2756A
