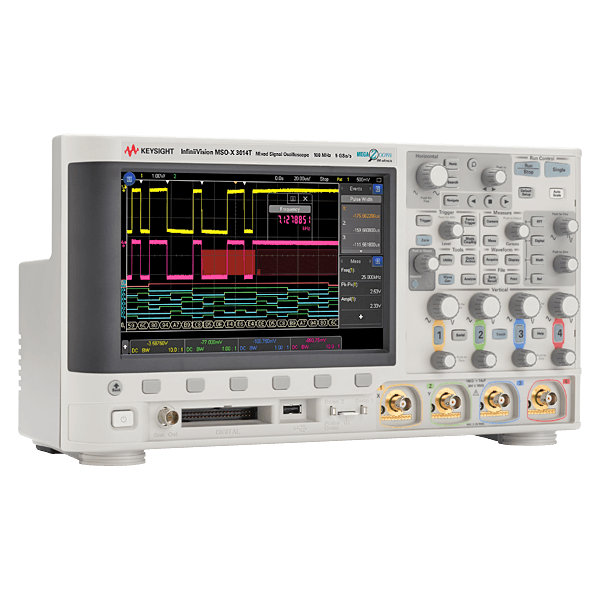

Keysight Oscilloscope, MSO, 4 + 16-channel, 100 MHz, 1 million wfm / s | MSOX3014T
Manufacturer number: MSOX3014T
or choose one of the following options:
Keysight MSOX3014T | 4 + 16 channel mixed-signal oscilloscope (4-channel digital storage oscilloscope and 16-channel logic analyzer) with a bandwidth of 100 MHz, up to 5 GS / s sampling rate, a signal acquisition rate of 1,000,000 signals / s and touch Screen operation.
- 4 analog and 16 digital inputs
- 100 MHz bandwidth
- Sampling rate 2.5 GS / s per channel, 5 GS / s with half the number of channels (interleaved)
- Memory depth 4 megapoints
- Segmentable memory built in as standard (adjustable up to 1,000 segments)
- MegaZoom IV memory and display technology for fast navigation and signal analysis
- highest signal acquisition rate of 1,000,000 signals / s for the safe acquisition of rare events
- Real-time signal acquisition
- Vertical resolution 8 bit / up to 12 bit in high resolution mode
- 38 automatic measurement functions and snapshot function
- InfiniiScan Touch Zone (2 zones) triggering with 21 standard trigger modes for fast debugging
- Powerful trigger options
- Dual bus decoding of Flexray, I²C, SPI, CAN, CAN-FD, CAN-dbc, SENT, LIN, RS232 / RS485 / UART, I²S buses (with optional modules)
- Advanced math built in by default
- FFT with up to 64 kpts resolution: Hanning, Flat Top, Rectangle, Blackman-Harris
- Standard built-in 3 digit digital voltmeter (DSOXDVM)
- Internal frequency counter over any analog or digital channel, resolution 5 digits, max. Frequency and bandwidth
- Integrated Education Training Kit (DSOXEDK)
- Keysight autoprobe input for connecting active Keysight probes or classic passive probes with BNC connector or BNC connector with read out
- Input impedance selectable 1MΩ or 50Ω
- Brilliant 21.6 cm touch screen color wide screen in WVGA (800 x 480px) resolution
- Adjustable persistence: Off, infinite, variable (100ms - 60s)
- 64 brightness levels to show the frequency of signal details
- "Push buttons" and direct menu buttons for quick and intuitive operation
- Graphical user interface and help function in German (11 languages)
- Whisper-quiet operation for relaxed and concentrated work.
- USB 2.0 high-speed device port on the rear panel
- One USB 2.0 high-speed host port each on the front panel and on the rear wall (supports memory sticks, USB keyboard, mouse and printer)
- Storage of setup files / settings
- Save signal data and / or transfer to PC of signal data in * .csv
- Save and / or transfer screenshots to PC in 8/24 bit * .bmp and 24 bit * .png
- Intuilink SW / Toolbars for fast processing of the data in Microsoft Word / Excel
- Housing dimensions: W 380.6 x H 204.4 x D 141.5 mm
- Weight: 4 kg
- Connection voltage: 100-120V, 50/60/400 Hz; 100-240V, 50/60 Hz ± 10% auto ranging
- Warranty: 3 years
- Recommended calibration cycle: 3 years
Technical Data
| Article number: | MSOX3014T |
|---|---|
| Bandwidth (MHz): | 100 |
| Counter: | Yes |
| DVM: | Yes |
| Dimensions (L x W x H) (mm): | 142 x 381 x 204 |
| Function generator: | Optional: AWG 20 MHz (per Lizenz freischaltbar) |
| Interfaces: | USB optional: Ethernet, GPIB |
| Model: | MSOX3014T |
| Number of channels: | 4 |
| Number of digital channels: | 16 |
| Samplerate: | 5 GSa/s |
| Screen size: | 21,6 cm |
| Screen type: | 800 x 480, TFT LCD Touchscreen |
| Segmentable memory: | default |
| Signal acquisition rate: | 1.000,000 wfms/sec |
| Special features: | optional: Enhanced Security |
| Storage depth: | 4 MPts |
| Triggertypes: | Zone, Edge, Edge then edge, Pulse width, Runt, Setup and hold, Rise/fall time, Nth edge burst, Pattern, Or, Video Optional: Enhanced Video |
| Vertical resolution: | 8-bit |
| Warranty (years): | 3 |
| Weight (kg): | 4 |
Documents & Downloads
Description
Oscilloscope, MSO, 4 + 16-channel, 100 MHz, 1 million wfm / s | MSOX3014T
This Keysight oscilloscope of the 3000T-X series offers more comfort and real productivity increases through the operation via the capacitive touch screen for an even faster display of measurement information on the screen.
The InfiniiScan Touch Zone Trigger simplifies triggering: just drag a box on the screen with your finger around the signal event of interest and the oscilloscope will trigger on it. Two trigger zones can be selected.
Thanks to the high signal acquisition rate of 1 million wfm / s, the oscilloscope reacts to setting changes at lightning speed even if digital channels, protocol decoding , mathematical functions or automatic measurement functions are activated. This increases the detection probability many times over for random or rare events that slower oscilloscopes often miss.
These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices : oscilloscope, logic analyzer, protocol analyzer, voltmeter, 8 digit counter and 1-channel arbitrary function generator. And your investment is optimally protected, because all models can be upgraded in every respect - including bandwidth - if necessary.
Lieferumfang
- 1 x oscilloscope
- 4 x passive probes 500MHz 10: 1 including accessories
- 16 channel logic probe including accessories for contacting
- Documentation (user manual) on CD
- Power cord
- Traceable calibration certificate
