Keysight E4980A | LCR meter / component tester, 20 Hz to 2 MHz, opt. DC bias

Manufacturer number: E4980A

Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
Keysight E4980A
1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Product downloads Product inquiries
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight E4980A | Precision LCR component testers with test frequencies from 20 Hz to 2 MHz.

  • Accuracy in impedance measurements due to extremely low noise in both the high and low impedance range
  • 0.05% base accuracy for impedance measurements
  • DC bias 1 m / 2 m / 4 m measuring cable lengths
  • Idle, short circuit and load correction
  • DC voltage source with extremely low noise from 0 to ± 10 V
  • USB interface built-in on the front panel (with option 001) for storing measurement results, settings, measurement sequences and display representations
  • AC characterization of the DUT (device under test) from 100 µVrms to 2 Vrms (optionally 20 Vrms) and a measuring current from 1 µA to 20 mA
  • Standard DC power source of 1.5 V and 2 V (optionally from 0 to ± 40 V including automatic polarity control) for the wafer supply and for measuring material properties
  • Over 30 different measuring adapters with the most diverse test specimen recordings - even for liquid materials
  • Frequency range: 20 Hz to 2 MHz with a 4-digit resolution in each frequency range
  • Basic accuracy: 0.05% with exceptionally good repeatability for high and low impedance measurements with DC power supply for the DUT (test object)
  • 16 impedance parameters can be measured.
  • Measuring options: Z, Y, θ, R, X, G, B, L, C, D, Q, ESR, Rdc, (with option 001: Vdc, Idc), deviation,% of deviation
  • Test signal frequencies 0 to 2 Vrms / 0 to 20 mArms (0 to 20 Vrms / 0 to 100 mArms with option 001)
  • Built-in 40 V DC voltage source, 20 Vrms test signal and resistance measurements with DC voltage levels (these options only in connection with option 001)
  • Shortest measuring time 5.6 ms
  • Measuring times can be set in: short 5.6 ms - medium 88 ms - long 220 ms
  • 201 measuring points with automatic sweep (wobble)
  • Optional handler interface
  • Optional scanner interface
  • PC / network connections: LAN, USB, GPIB
  • Weight 5.3 kg
  • Dimensions W370 x H105 x D390
  • Warranty: 3 years

Areas of application:

  • In the material test to determine the relative dielectric constant or relative permeability
  • When testing electronic components for measuring resistance, inductance and capacitance
  • Production and development as well as for applications in standard laboratories

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.67 MB
Configuration guide
pdf | 0.64 MB

Description

E4980A | LCR meter / component tester, 20 Hz to 2 MHz, opt. DC bias

The standard for impedance measurement of materials and electronic components in the low-frequency range - precise, fast and adaptable to all measurement requirements thanks to 30 different measurement adapters and recordings.

The LCR-Meter E4980A offers the best symbiosis between accuracy and measuring speed to determine the relative permeability and the relative dielectric constant of materials of all kinds or to measure the essential electrical parameters such as resistance, capacitance and inductance - and that with the highest precision in both the high and low impedance range. Appropriate measurement recordings, built-in power supplies, which supply the test specimen with voltage and current, and built-in multimeter functions make work easier and reduce the measurement effort.

Accessoires (39 products )

Keysight 16034G
Keysight 16034G
SMD test holder DC up to 120 MHz, small
1 in stock. Ready to ship in 1 business day
On Request
Keysight 82357B
Keysight 82357B
Interface USB (PC) to GPIB (measuring device), USB2.0
3 in stock. Ready to ship in 1 business day
€780.00
Keysight BV0014B
Keysight BV0014B
BenchVue LCR Meter Control and Automation App
Ready to ship in 5 to 10 business days
On Request
Keysight 16196D
Keysight 16196D
Parallel electrode test adapter SMD 01005 (inch) / 0402 (mm)
Delivery time upon request
On Request
Keysight 16197A
Keysight 16197A
Floor electrodes SMD test adapter
1 in stock. Ready to ship in 1 business day
On Request
Keysight 16092A
Keysight 16092A
Test holder for components with axial and radial connections
Delivery time upon request
On Request
Keysight 16196A
Keysight 16196A
Parallel electrode test adapter SMD 0603 (inch) / 1608 (mm)
Delivery time upon request
On Request
Keysight 16034E
Keysight 16034E
SMD test adapter DC up to 40 MHz
1 in stock. Ready to ship in 1 business day
On Request
Keysight 16034H
Keysight 16034H
SMD test holder DC up to 120 MHz, for array type
1 in stock. Ready to ship in 1 business day
On Request

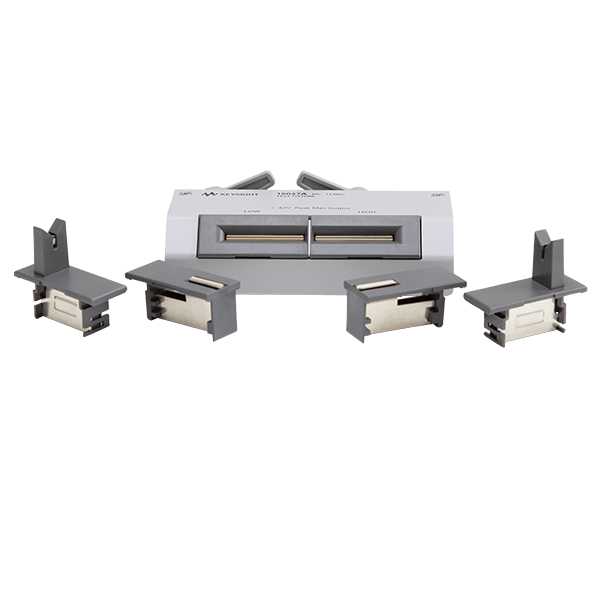

Keysight 16047A
Keysight 16047A
Test holder for components with axial / radial connections, DC to 13 MHz
Delivery time upon request
On Request
Keysight 16451B
Keysight 16451B
Dielectric test adapter
1 in stock. Ready to ship in 1 business day
On Request
Keysight 42030A
Keysight 42030A
Standard resistor set with four pairs of terminals
Delivery time upon request
On Request
Keysight 16194A
Keysight 16194A
High temperature component holder
Delivery time upon request
On Request
Keysight 16196B
Keysight 16196B
Parallel electrode test adapter SMD 0402 (inch) / 1005 (mm)
Delivery time upon request
On Request
Keysight 16196C
Keysight 16196C
Parallel electrode test adapter SMD 0201 (inch) / 0603 (mm)
Delivery time upon request
On Request
Keysight 16380C
Keysight 16380C
Standard capacitor set
Delivery time upon request
On Request
Keysight 16452A
Keysight 16452A
Liquid test adapter
Delivery time upon request
On Request
Keysight 16048A
Keysight 16048A
Test leads (BNC), length: 1m DC to 30 MHz
Delivery time upon request
On Request
Keysight 16089A
Keysight 16089A
Kelvin measuring cable with large terminals for LCR meters
Delivery time upon request
On Request
Keysight 16089B
Keysight 16089B
Medium Kelvin measuring cable for LCR meters
Delivery time upon request
On Request
Keysight 16048E
Keysight 16048E
Test leads (BNC), length: 3.8m DC to 2 MHz
1 in stock. Ready to ship in 1 business day
On Request
Keysight 16065A
Keysight 16065A
External bias adapter 50 Hz to 2 MHz, ± 200V
Delivery time upon request
On Request
Keysight 16089C
Keysight 16089C
Kelvin measuring cable IC measuring line for LCR meter
Delivery time upon request
On Request
Keysight 16192A
Keysight 16192A
Parallel electrode test adapter SMD
Delivery time upon request
On Request
Keysight 16380A
Keysight 16380A
Standard capacitor set
Delivery time upon request
On Request
Keysight E4980A-301
Exclusive
Keysight E4980A-301
Scanner interface, option for LCR meter E4980A
Delivery time upon request
On Request
Keysight E4980AL-032
Keysight E4980AL-032
LCR meter, precision, 20 Hz - 300 kHz with DCR
Reordered - in stock. Delivery time on request
On Request
Keysight E4980AL-102
Keysight E4980AL-102
LCR meter, precision, 20 Hz - 1 MHz with DCR
Delivery time upon request
On Request
Keysight E4980A-201
Exclusive
Keysight E4980A-201
Handler interface, option for LCR meter E4980A
Delivery time upon request
On Request
Keysight E4980AL-052
Keysight E4980AL-052
LCR meter, precision, 20 Hz - 500 kHz with DCR
Delivery time upon request
On Request
Keysight E4980AL
Keysight E4980AL
LCR meter / component tester, 20 Hz to 300/500 kHz or 1 MHz, opt. DC bias
Reordered - in stock. Delivery time on request
On Request
Keysight N1500A software for dielectric material measurement
Exclusive
Keysight N1500A software for dielectric material measurement
1 in stock. Ready to ship in 1 business day
On Request
Keysight E4980A-001
Exclusive
Keysight E4980A-001
Power and DC bias enhance, option for LCR meter E4980A
Delivery time upon request
On Request
Keysight 16065C
Keysight 16065C
External bias adapter 100 Hz to 1 MHz, ± 40V
Delivery time upon request
On Request
Keysight 16047E
Keysight 16047E
Test holder for components with axial connections
1 in stock. Ready to ship in 1 business day
On Request
Keysight E4980A-200
Exclusive
Keysight E4980A-200
DCR measurement option for E4980A
Reordered - in stock. Delivery time on request
On Request
Keysight 16453A
Keysight 16453A
Test adapter for dielectric material
Delivery time upon request
On Request
Keysight 16334A
Keysight 16334A
Tweezers test adapter for SMD 5 Hz to 15 MHz
1 in stock. Ready to ship in 1 business day
On Request
Keysight 16048D
Keysight 16048D
Test leads (BNC), length: 2m DC to 30 MHz
1 in stock. Ready to ship in 1 business day
On Request

Alternate products (11 products )

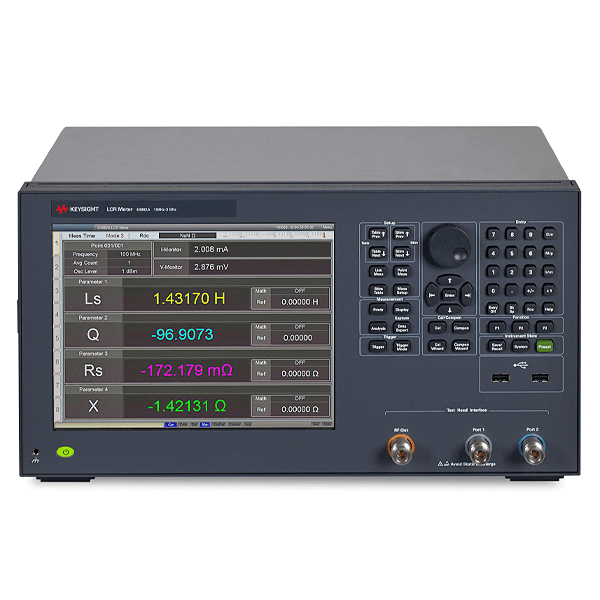

Keysight E4982A
