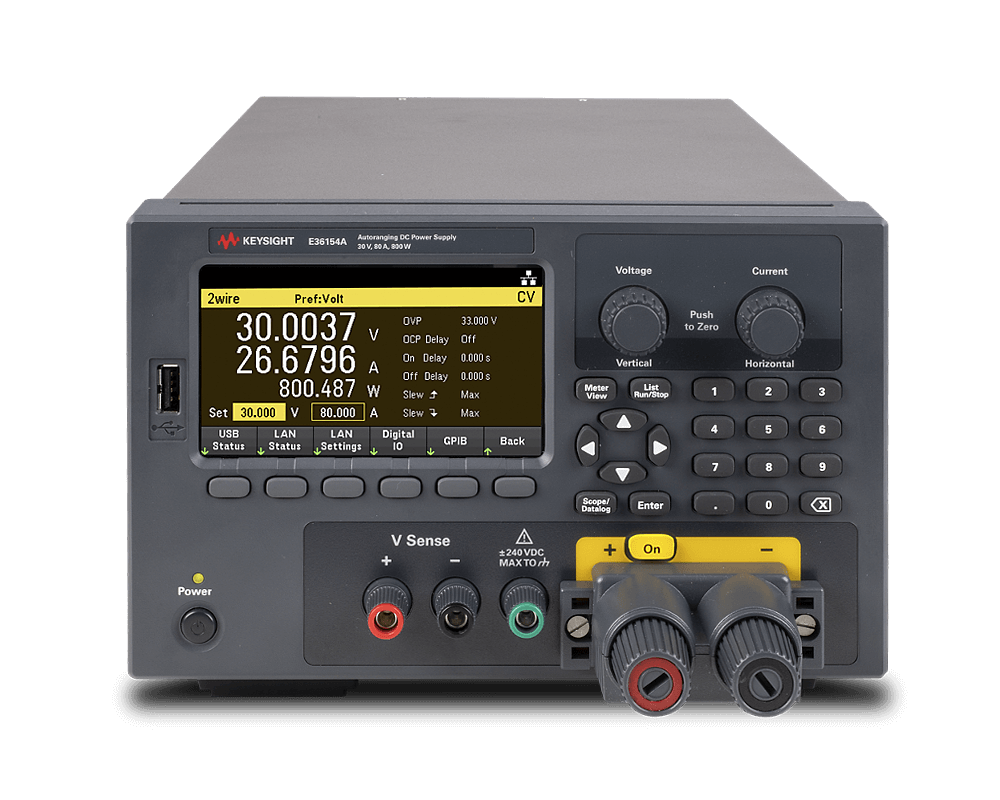

Keysight E36154A | DC power supply, 1 channel, auto range: 30 V, 80 A, 800 W, LAN, USB

Manufacturer number: E36154A

E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
E36154A
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Related Articles

Keysight E36154A | DC power supply, 1 channel, auto range: 30 V, 80 A, 800 W, LAN, USB.

  • DC power supply, 1 channel, auto-ranging
  • Output Power: 800W
  • Output Voltage: 0-30V
  • Output Current: 0-80A
  • Accuracy ± (% of output + offset):
    • Voltage: 0.03% + 5mV
    • Current: 0.1% + 20mA
  • Ripple & Noise (20Hz to 10MHz):
    • Normal mode voltage: <50 mV p.p
    • Normal-mode Voltage: <5 mV rms

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Datasheet
pdf | 1.44 MB
Userguide
pdf | 3.58 MB

Description

E36154A | DC power supply, 1 channel, auto range: 30 V, 80 A, 800 W, LAN, USB

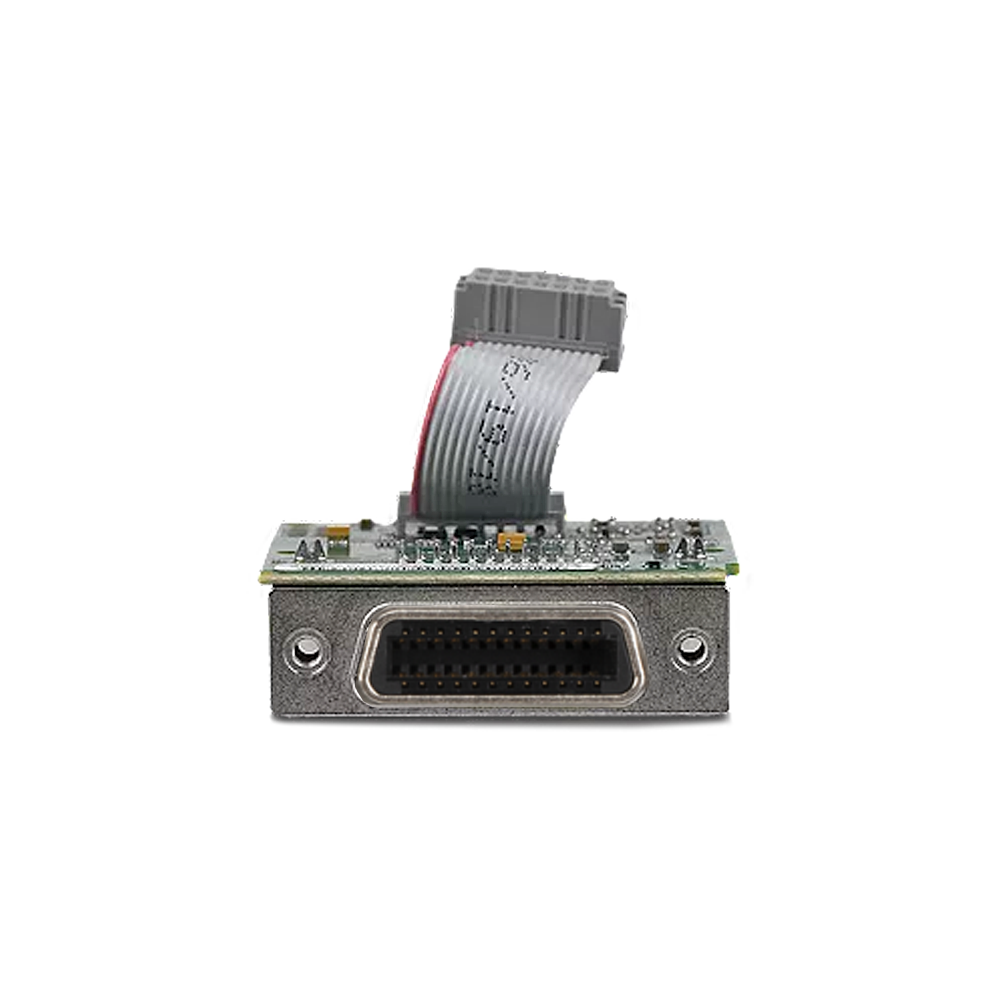

The Keysight E36154A is an autoranging DC power supply with 1 channel and has 800 W, 30 V, 80 A. The E36154A has a LAN and a USB interface as standard. A GPIB interface is optionally available. The E36154A includes advanced characterization tools such as data logging, an optional oscilloscope view, and an arbitrary function generator. This enables in-depth analysis and precise output modulation for a variety of applications, such as power simulation.

The Keysight E36154A introduces an important innovation - a removable front panel connector. Seamlessly connect your DUT to the Power Outputs that support up to 80A. The front connector has a built-in automatic protection mechanism that ensures both your own safety and that of your devices.
