Keysight DSOX3102A

Manufacturer number: DSOX3102A

Keysight DSOX3102A (phase-out model) | 2-channel digital storage oscilloscope with a bandwidth of 1 GHz, up to 5 GS / s sampling rate and a signal acquisition rate of 1,000,000 [1 million] signals / s.

  • 2 analog inputs
  • 1 GHz bandwidth
  • Sampling rate 2.5 GS / s per channel, 5 GS / s with half the number of channels (interleaved)
  • Storage depth 2 megapoints (optionally expandable up to 4 megapoints)
  • MegaZoom IV memory and display technology for fast navigation and signal analysis
  • highest signal acquisition rate of 1,000,000 signals / s for the safe acquisition of rare events
  • Real-time signal acquisition
  • Vertical resolution 8 bit / up to 12 bit in high resolution mode
  • 35 automatic measurement functions and snapshot function
  • Powerful trigger options
  • Dual bus decoding of I²C, SPI, CAN, LIN, RS232 / RS485 / UART, I²S buses (with optional modules)
  • Different math functions
  • FFT with up to 64 kpts resolution: Hanning, Flat Top, Rectangle, Blackman-Harris
  • Standard built-in 3 digit digital voltmeter (DSOXDVM)
  • Internal frequency counter over any analog or digital channel, resolution 5 digits, max. Frequency and bandwidth
  • Integrated Education Training Kit (DSOXEDK)
  • Keysight autoprobe input for connecting active Keysight probes or classic passive probes with BNC connector or BNC connector with read out
  • Input impedance selectable 1MΩ or 50Ω
  • Brilliant 21.6 cm color wide screen in WVGA (800 x 480px) resolution
  • Adjustable persistence: Off, infinite, variable (100ms - 60s)
  • 64 brightness levels to show the frequency of signal details
  • "Push buttons" and direct menu buttons for quick and intuitive operation
  • Graphical user interface and help function in German (11 languages)
  • Whisper-quiet operation for relaxed and concentrated work.
  • USB 2.0 high-speed device port on the rear panel
  • One USB 2.0 high-speed host port on the front panel and one on the rear panel (supports memory sticks and printer)
  • Storage of setup files / settings
  • Save signal data and / or transfer to PC of signal data in * .csv
  • Save and / or transfer screenshots to PC in 8/24 bit * .bmp and 24 bit * .png
  • Intuilink SW / Toolbars for fast processing of the data in Microsoft Word / Excel
  • Housing dimensions: W 380.6 x H 204.4 x D 141.5mm
  • Weight 3.85 kg
  • Connection 100-240 V AC, 50/60 Hz, 100 W max.
  • Warranty: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Description

DSOX3102A


We recommend the Keysight 3000T X series successor oscilloscopes. Here are the models: Keysight 3000T X-Series.


The oscilloscope redefined: more oscilloscopes for the same money - thanks to revolutionary technology. The Keysight (formerly Agilent's electronic measurement technology) InfiniiVision 3000 X-Series oscilloscopes offer features and upgrade options that you won't find in any other oscilloscope in this price range. These oscilloscopes offer the largest screen, the largest memory and the highest signal update rate in this class.

These oscilloscopes are unusually versatile and they can optionally be upgraded with a logic timing analyzer, a WaveGen function generator and the bandwidth. The ideal oscilloscopes for use in laboratories / research / development / production.

Lieferumfang

  • 1 x digital memory oscilloscope 3000 X.
  • 2 x passive probes including accessories
  • Documentation (user manual) on CD
  • Power cord
  • Traceable calibration certificate

Options / extensions:

  • Memory upgrade
  • Optional expansion to a mixed-signal oscilloscope with 16 digital channels
  • Optional interfaces: GPIB, LAN, VGA
  • Optional built-in 20 MHz arbitrary / function generator (can be retrofitted)
  • Optional segmentable memory and mask test
  • Optional serial bus decoding for Flexray, CAN, I²C, SPI, LIN, RS232 / RS485 / UART, I²S, MIL-STD 1553 etc.
  • Advanced math, application for performance analysis

Accessoires (10 products )

Keysight BV9001B
BenchVue full version, PC measurement and evaluation software
Ready to ship in 5 to 10 business days
On Request
Keysight DSOX3102A-R5
Warranty extension DSOX3102A to 5 years
Delivery time upon request
€757.00
Keysight DSOXPERFMSO
Upgrade to 16-channel MSO for DSOX310xA and X4000A, retrofitting
Delivery time upon request
€3,733.00
Keysight DSOX3SGM
Segmentable memory for 1,000 segments, for 3000 X oscilloscopes
Delivery time upon request
€716.00
Keysight DSOXGPIB
GPIB module for X2000A / X3000A / T series / retrofitting (option 806)
2 in stock. Ready to ship in 1 business day
€672.00
Keysight DSOX3MEMUP
Memory upgrade from 2 to 4 Mpts, for 3000 X oscilloscopes
Ready to ship in 5 to 10 business days
€675.00
Keysight DSOX3WAVEGEN
Arb. Function generator option, 20 MHz, 1-channel, for 3000T X oscilloscopes
Ready to ship in 5 to 10 business days
€883.00
Keysight DSOXLAN
VGA / LAN module for X2000A / X3000A / T series / retrofitting (option 805)
9 in stock. Ready to ship in 1 business day
€266.00
Bundle

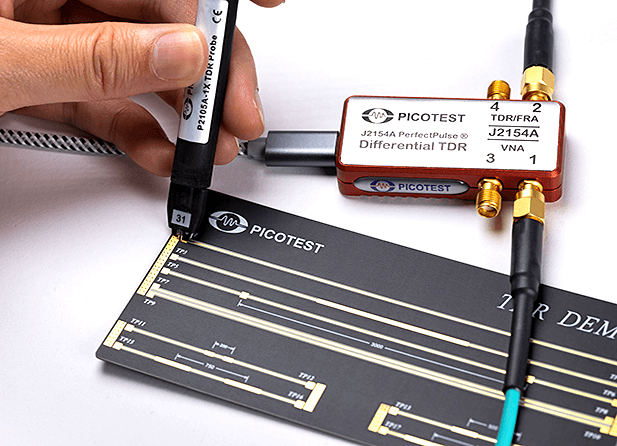

PICOTEST TDRBUNDLE
