Keysight DSOX1204A | Oscilloscope, DSO, 4-channel, 70 MHz
Manufacturer number: DSOX1204A
€1,367.00
Keysight DSOX1204A | Oscilloscope, 4 channels, 70 MHz, expandable up to 200 MHz, sampling rate up to 2 GSa / s, memory depth up to 1 Mpts, with USB and LAN interface.
- Multifunctional oscilloscope with integrated serial protocol analyzer, digital voltmeter (DVM, 3 digits) and frequency counter (5 digits)
- 4 analog channels: bandwidth 70 MHz (expandable up to 200 MHz)
- Input sensitivity: 500 μV / div to 10 V / div
- Input impedance / capacitance: 1 MΩ ± 2% / 16 pF ± 3 pF
- Update rate measurement curves: 200.0000 wfms / s
- Maximum sampling rate: 2 GSa / s (all channels), 2 GSa / s (with half the number of active channels)
- Maximum memory depth: 2 Mpts, segmentable memory
- Vertical resolution: 8 bits
- 24 pre-programmed, automatic signal parameter measurements
- Extensive trigger functions
- Serial protocol analysis: I²C, SPI, UART / RS-232, CAN, LIN
- Integrated exercise signals for fault diagnosis
- Clear 7-inch TFT-LCD color display (18 cm screen diagonal) with WVGA resolution
- Multilingual GUI (Graphical User Interface) and integrated help system

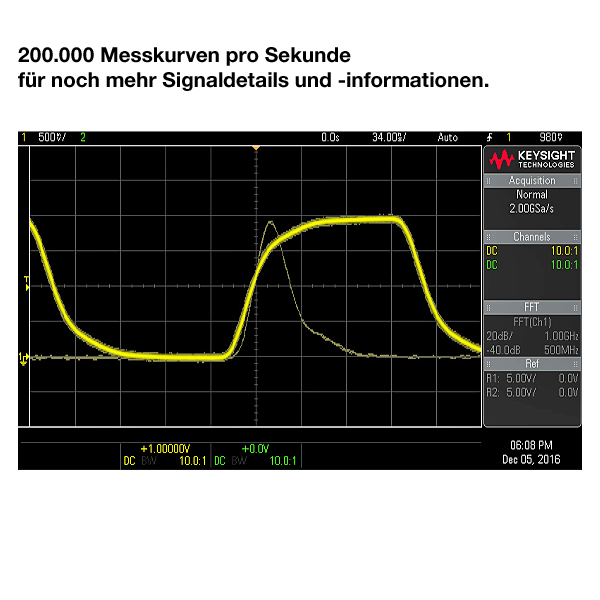

- InfiniiVision software for math functions, mask test and FFT
- Interfaces: 2x USB 2.0 and LAN (RJ45) for external device control and data processing
- Power supply: 100 to 120 V, 50/60/400 Hz; 100 to 240 V, 50/60 Hz
- Dimensions: W 314 x H 165 x D 130 mm / weight: 3.2 kg
- Warranty: 3 years
- Including 4 probes: passive, 200 MHz, 1: 1/10: 1, switchable
Technical Data
Article number: | DSOX1204A |
---|---|
Bandwidth (MHz): | 70 |
Counter: | Yes |
DVM: | Yes |
Dimensions (L x W x H) (mm): | 130 x 314 x 165 |
Function generator: | No |
Interfaces: | USB, LAN |
Model: | DSOX1204A |
Number of channels: | 4 |
Number of digital channels: | 1 |
Samplerate: | 2 GSa/s |
Screen size: | 17,8 cm |
Screen type: | WVGA TFT LCD |
Signal acquisition rate: | 100.000 wfms/s |
Special features: | Bandwidth upgrade possible later |
Storage depth: | 2 MPts |
Triggertypes: | Edge, Pattern/State, Pulse width, Setup and hold, Rise/fall time, Video, I²C, RS-232/422/485/UART, SPI, CAN, LIN |
Vertical resolution: | 8-bit |
Warranty (years): | 3 |
Weight (kg): | 3.23 |
Documents & Downloads
Description
DSOX1204A | Oscilloscope, DSO, 4-channel, 70 MHz
Multifunctional, expandable and inexpensive: Keysight's DSOX1204A is not only a powerful 4-channel oscilloscope from the well-proven InfiniiVision series, but also complements your test environment as a serial protocol analyzer, digital voltmeter and frequency counter - without additional measuring devices. Together with the possibility of expanding the bandwidth from 70 MHz to 100 or 200 MHz, you are also optimally equipped for future test applications and save space on the laboratory bench. DSOX1204A is suitable for cost-efficient measurements in development and production or for training purposes.
The oscilloscope DSOX1204A offers high technical performance in a compact design and impresses with its convenient operation: The graphical user interface (GUI) supports many different languages, and the integrated help system offers useful, easily accessible explanations of functions for all operating buttons. 24 pre-programmed oscilloscope measurements can be called up and automatically used for a signal parameter analysis. Up to four different measurements can be displayed in real time and with continuous renewal of the measured values on the spacious screen. The oscilloscope provides you with exercise signals to demonstrate common signal problems, making it easier for you to familiarize yourself with fault diagnosis.
With an oscilloscope of the DSOX1000 family, you choose an inexpensive InfiniiVision oscilloscope with integrated multiple functionality and uncompromising performance quality. Each device has preprogrammed, automatic measurement functions as well as extensive, software-based analysis options that simplify and accelerate your signal and error analyzes. Due to the high waveform update rate, you can also reliably detect very rare random events and signal interference. DSOX1204A is delivered with a LAN port and two USB interfaces as standard, which enables PC-based remote control of the oscilloscope via a virtual front panel and extends data storage.
Lieferumfang
- 4x N2140A passive probe, 200 MHz, 1: 1/10: 1, switchable
- Power cord
- Calibration certificate
- Multilingual GUI
- Multilingual support system
- Secure erase
