Keysight DAQ973A | Data logger (DAQ system), modular, basic device, USB, LAN, GPIB, 3-slot, integr. 6½ DMM
Manufacturer number: DAQ973A
Keysight DAQ973A | Modular 3-slot data logger, data acquisition and switching system with 6.5-digit digital multimeter, scan rate up to 450 channels / s & GPIB interface
- 3 slots, diverse selection of 8 plug-in modules for optimal and future-oriented application flexibility
- LCD color display (GUI) for numerical and graphic display of the measured values
- Integrated 6.5-digit digital multimeter with auto-calibration (22 bit): basic accuracy 0.004% (DC measurement), scan rate up to 450 channels / s for high-precision and fast measurements
- Measuring speed 5000 readings / s
- Voltage measurement DC / AC 100 mV to 300 V
- Frequency measurement 3 Hz to 300 kHz
- Temperature measurement -200 to +1800 ° C (resistance thermometer, thermocouple or thermistors)
- Extended measurement options: low current range with 1 µA (DC) and 100 µA / 1 mA (AC), high resistance range with 1000 MΩ, internal square wave signal for frequency measurements
- 13 measuring functions including capacitance, diode test, temperature, AC / DC current, AC / DC voltage, resistance (2- and 4-wire measurement), frequency, period
- Internal memory for 100,000 measured values, extended data storage via USB stick

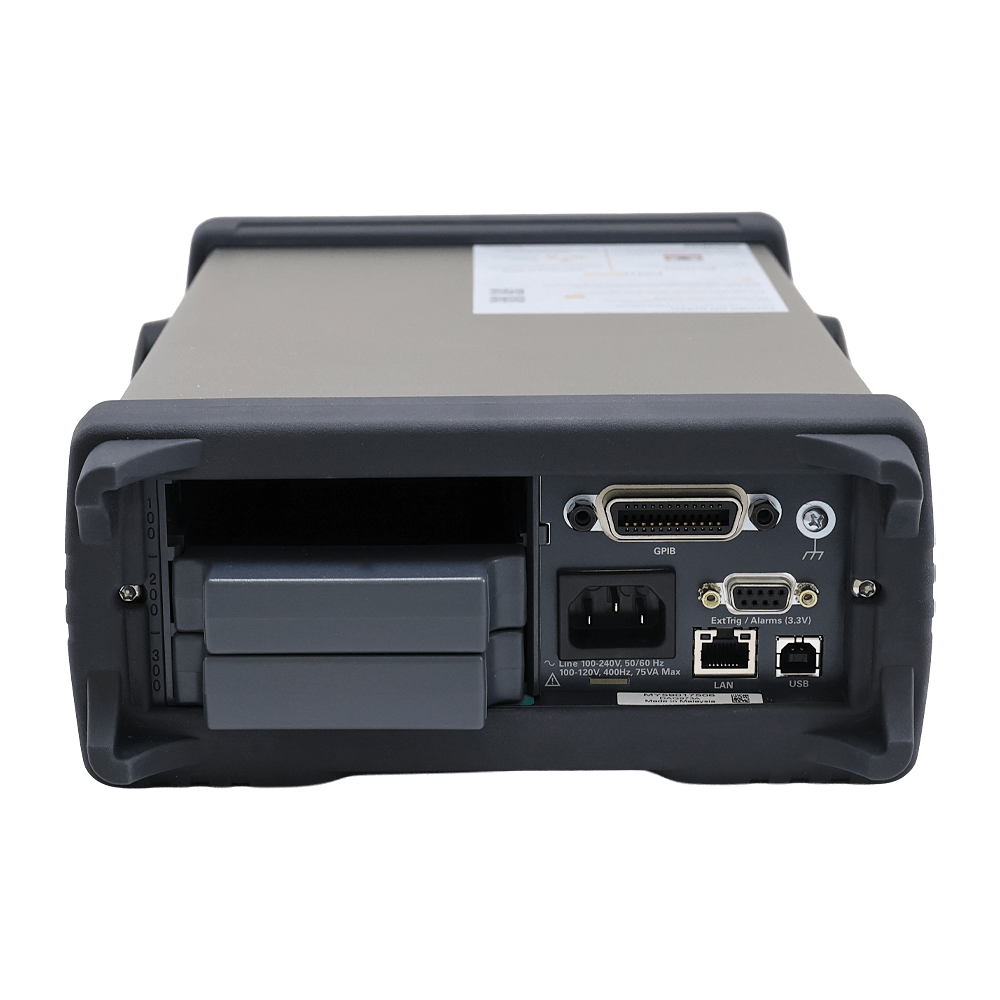

- Interfaces: GPIB, USB (front and back), LAN / LXI (SCPI compatible) and input for external trigger / alarm output
- Integrated interface for virtual, location-independent control of the front panel via web browser
- BenchVue DAQ PC-based application software subject to license for test configuration / control and data processing
- Dimensions: W 261 x H 103.7 x D 378 mm / weight: 4.1 kg
- Power supply: 100 - 240 V AC, 50/60/400 Hz
- 3 year guarantee
Technical Data
Article number: | DAQ970A |
---|---|
Available modules: | DAQM900A: 20-Kanal Solid-State-Multiplexer + 2 Strommesskanäle, 450 Kanäle/s, 120 V / 0,02 A DAQM901A: 20-Kanal Multiplexer (2/4-Draht) + 2 Strommesskanäle, 80 Kanäle/s, 300 V / 1 A DAQM902A: 16-Kanal Multiplexer (2/4-Draht), 250 Kanäle/s, 300 V / 50 mA D |
Current measuring range DC: | 1 µA - 2 A |
Dimensions (L x W x H) (mm): | 261 x 378 x 103,7 |
Display: | 4,3", TFT Touchscreen |
Frequency measuring range: | 3 Hz - 300 kHz |
Interfaces: | LAN, USB, GPIB |
Measured value memory: | Buffer: 100 Ks/s |
Model: | DAQ973A |
Number of DMM positions: | 6.5 |
Number of channels: | 450 |
Number of plug-in modules: | 3 |
Resistance measuring range: | 100 Ω - 1000 MΩ |
Special features: | 3-module slots for up to 9 different modules |
Temperature measuring range: | -200 °C - 1800 °C |
Voltage measuring range DC: | 100mV - 600V |
Warranty (years): | 1 |
Weight (kg): | 4.1 |
Documents & Downloads
Description

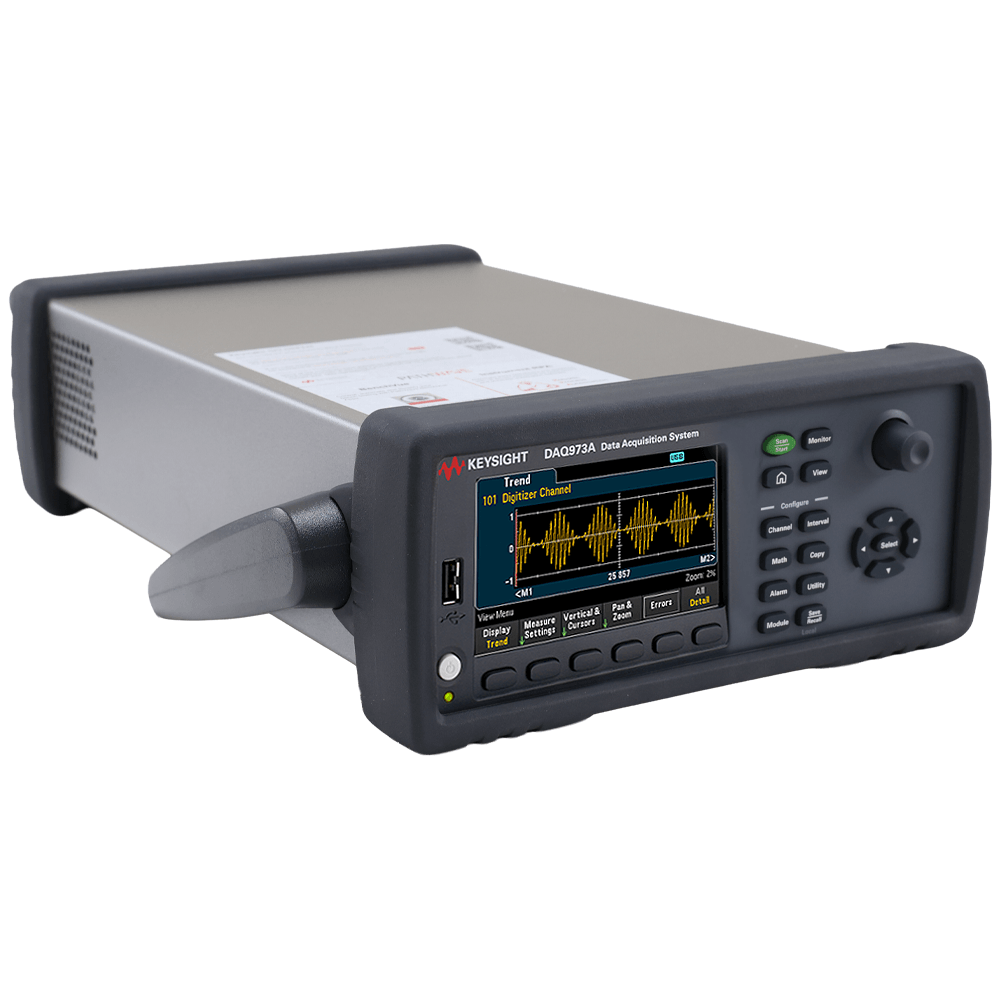

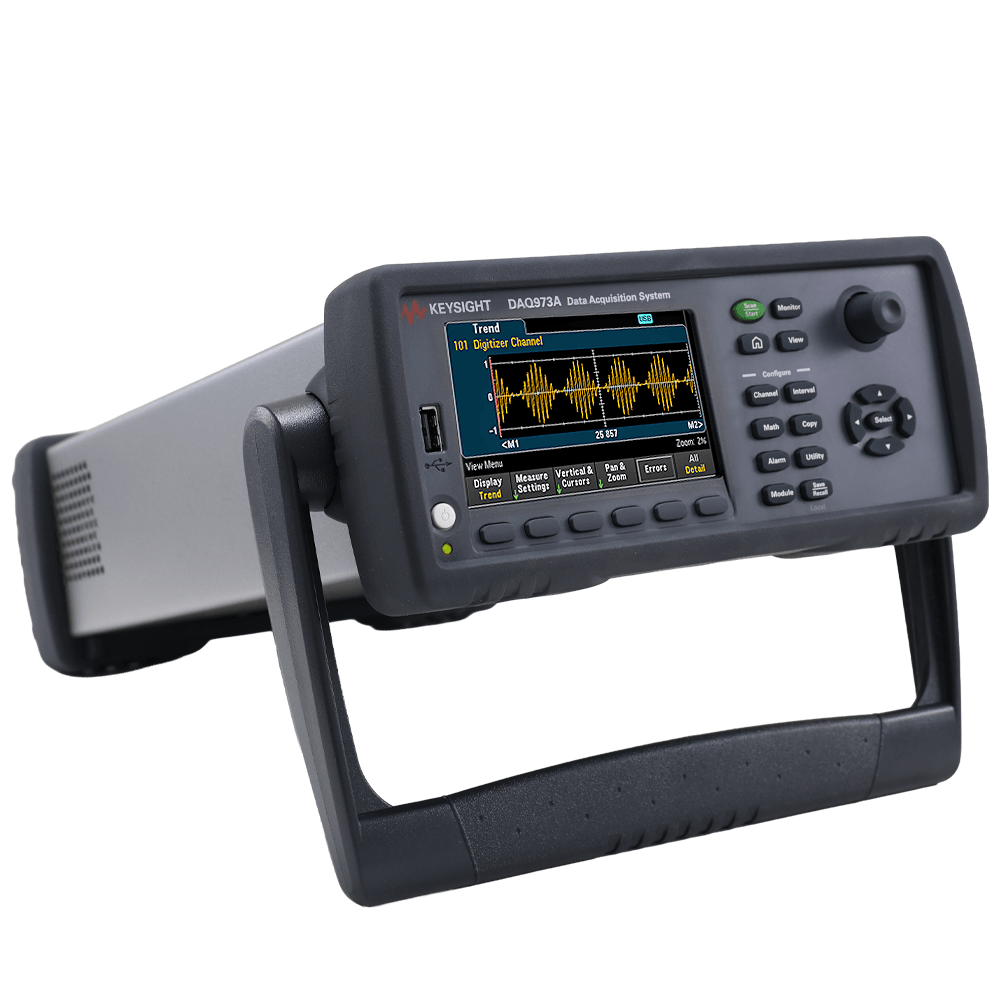

DAQ973A | Data logger (DAQ system), modular, basic device, USB, LAN, GPIB, 3-slot, integr. 6½ DMM
The DAQ973A measurement data acquisition system extends the high-performance class of the Keysight data logger. The modular system consists of a basic device with slots for up to three of eight available measuring modules. This results in a particularly large and, above all, economical variety of applications for the development and production of electronic components, since your test equipment remains adaptable for future applications.

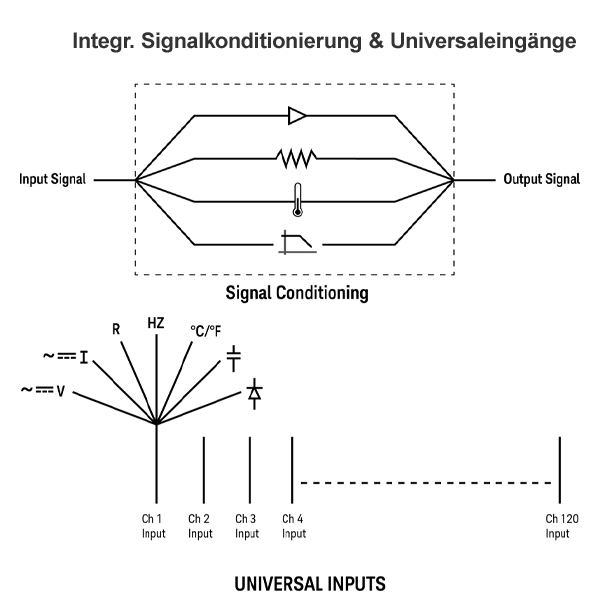

The internal 6.5-digit digital multimeter (22 bit) enables high-precision and very fast measurements with a scan rate of up to 450 channels per second. With the data logger, temperatures, direct and alternating voltage, direct and alternating current, resistances (2- or 4-wire measurement), frequencies and periods can be recorded directly as well as capacitance measurements and diode tests. Depending on the application, up to three identical or different modules can be used for switching and recording measurement data and for process control. You will receive up to 120 measuring channels in 1-wire connection or 60 measuring channels in 2-wire connection. 4-wire measurements are also possible.

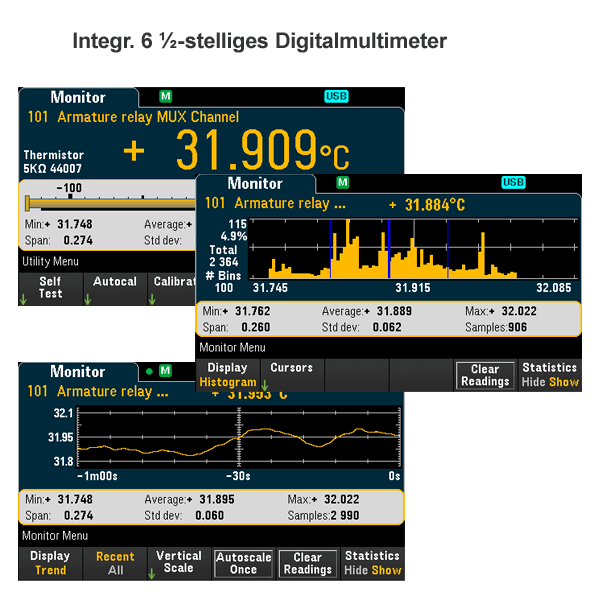

The measured values can not only be displayed numerically on the LCD graphic display, but also as a trend chart, bar chart or histogram, so that you get an informative all-round view of your measurement. The measurement data can be stored internally (100,000 measurement values) and additionally conveniently stored on a USB stick and transferred to a PC for further analysis.
The user-friendly device control, test configuration and data transfer is carried out via the DAQ software BenchVue (subject to license). The integrated web interface allows the location-independent, browser-based remote control of the system via a virtual front panel. B. Create scan lists or configure measurements.
Optimal application diversity through plug-in modules:

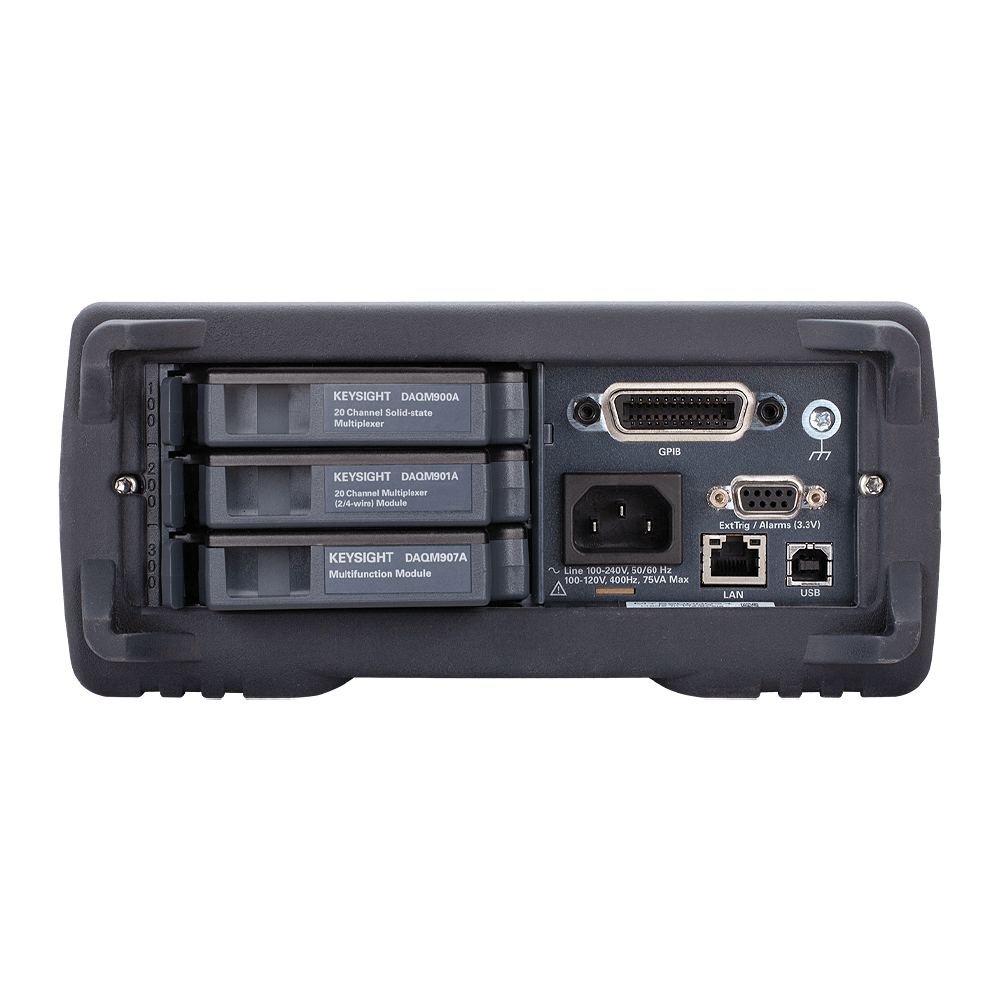

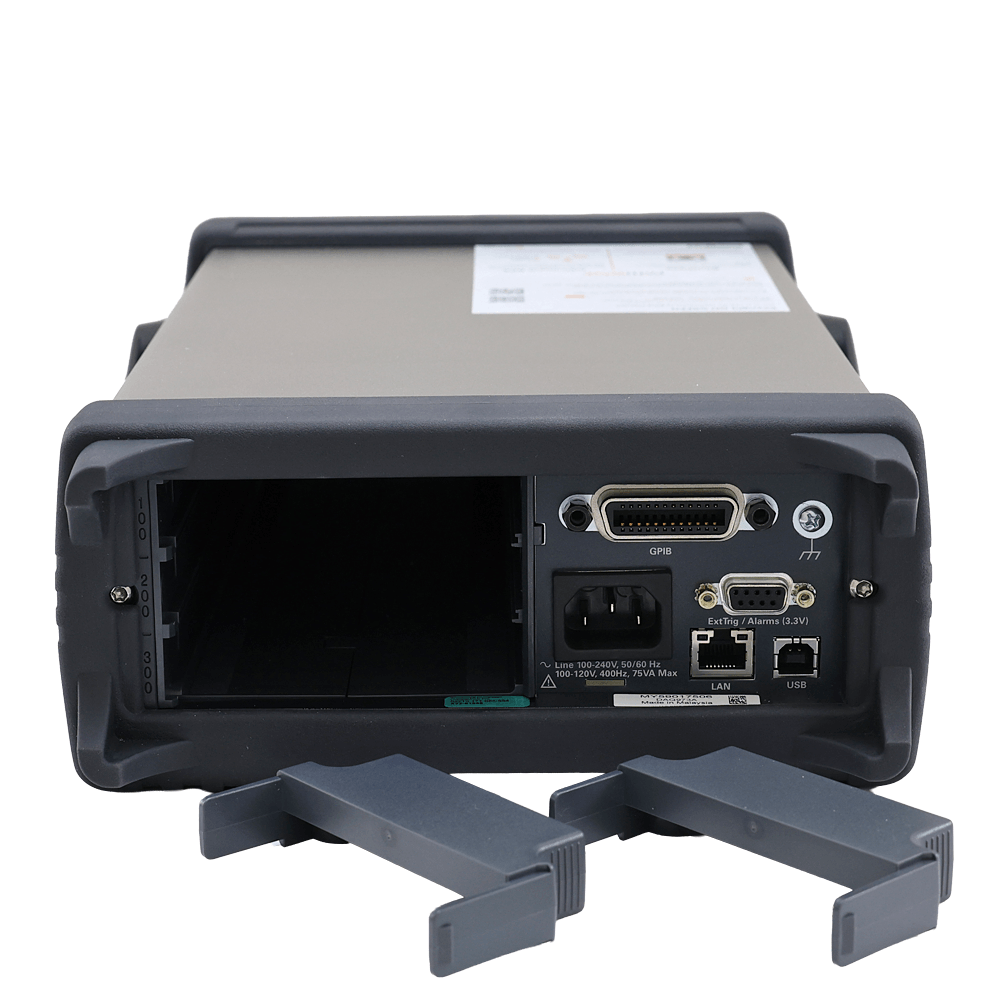

The wide and flexible functionality of the available plug-in modules optimizes the possible uses and thus also the economy of the DAQ970A acquisition system. Up to three identical or different modules can be used in any combination in the device and configure it to a compact data logger, a full measurement data acquisition system or an inexpensive switching unit. The integrated digital multimeter is controlled via the modules DAQM900A, DAQM901A, DAQM902A and DAQM908A.
- DAQM900A: 20-channel solid-state multiplexer + 2 current measurement channels, 450 channels / s, 120 V / 0.02 A
- DAQM901A: 20-channel multiplexer (2/4-wire) + 2 current measurement channels, 80 channels / s, 300 V / 1 A
- DAQM902A: 16-channel multiplexer (2/4-wire), 250 channels / s, 300 V / 50 mA
- DAQM903A: 20-channel universal relay module, 120 channels / s, 300 V / 1 A
- DAQM904A: 4 x 8 matrix switch module, 120 channels / s, 300 V / 1 A, enables up to 96 signal combinations
- DAQM905A: dual 4-channel RF multiplexer, 50 Ω, 2 GHz bandwidth, 60 channels / s, 42 V / 0.7 A
- DAQM907A: multifunction module, two 8-bit digital inputs / outputs (42 V / 400 mA), 26-bit event counter (42 V / 100 kHz), two 16-bit analog outputs (± 12 V / 10 mA)
- DAQM908A: 40-channel multiplexer module, 80 channels / s, 300 V / 1 A
- DAQM909A: Digitizer Module, 4-channel, 800k samples / s, 24-bit
Note:
When you purchase this new device, you will now receive a "Node-Locked" license for the Keysight measurement and analysis app BenchVue for DAQs BV0006B free of charge. This is limited to the specific device. The license is not limited in time.
On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.
Note:
The Keysight DAQ973A is the official successor to the discontinued Keysight 34970A data logger.
Lieferumfang
- Modular 3-slot data logger
- Power cord
- PC software BenchVue for Windows
