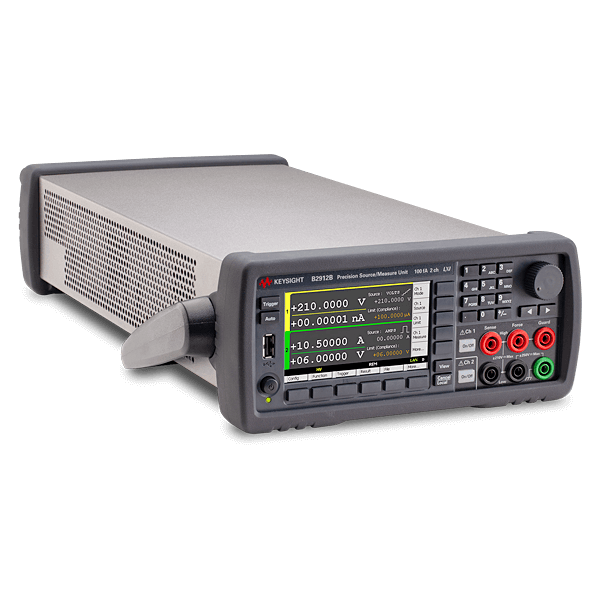

Keysight B2912B | Precision source measuring unit, SMU, 2-channel, resolution 10 fA / 100 nV, output 210 V / 3 A DC, 10.5 A pulsed

Manufacturer number: B2912B

Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Keysight B2912B
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries % Additional offers for this product
Highlights Documents / Downloads Description Scope Related Articles

Keysight B2912B | Precision source measuring unit, source / measure unit (SMU), 2-channel, resolution 10 fA / 100 nV, output max. 210 V / 3 A DC, 10.5 A pulsed.

  • 2-channel
  • Smallest resolution d. Source: 100 nV / 10 fA, 6½ digits
  • Smallest measurement resolution: 100 nV / 10 fA, 6½ digits
  • Maximum output voltage / current: 210 V / 3 A DC, 10.5 A pulsed
  • Sampling rate: 100,000 Sa / s (min. Time interval 10 µs)
  • Integrated sweep and AWG measurement functionality (arbitrary waveform generator): for arbitrary functions with up to 100,000 levels
  • Sweep modes: linear, logarithmic, list
  • 4-wire measuring function for precise low-voltage measurements
  • Buffer memory for up to 100,000 measured values
  • Innovative GUI (Graphical User Interface): for intuitive IV measurements without PC programming
  • Display viewing modes: single, dual, chart, scroll
  • SCPI programming for easy test code migration
  • Software options for the measurement application: BenchVue, Quick lV, EasyEXPERT group +, web browser (Graphical Web Interface, for basic applications)
  • Interfaces: GPIB, LAN, 2x USB 2.0 (host, device), digital I / O
  • Power supply: 90 to 264 V / 47 to 63 Hz
  • Dimensions: W 260 × H 180 × D 480 mm (including handle and feet)
  • Weight: 6 kg
  • Guarantee: 3 years

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Catalog
pdf | 3.44 MB
Brochure
pdf | 6.89 MB
Datasheet
pdf | 2.28 MB
Userguide
pdf | 8.14 MB
Configuration guide
pdf | 1.38 MB

Description

B2912B | Precision source measuring unit, SMU, 2-channel, resolution 10 fA / 100 nV, output 210 V / 3 A DC, 10.5 A pulsed

Voltage and current measurements with fast, precise measurement results: The Source Measure Unit (SMU) B2912B of the B2900B / BL series from Keysight is a compact, precise and cost-effective solution for the development area and the test field. The precision source measuring unit is particularly suitable for IV measurement applications that require particularly high measurement resolution and accuracy. The integration of source and measuring unit in one device increases your test throughput.

Key Features:

  • Integrated function as source and measuring device: simple and precise measurement of current and voltage with just one device and without manual changes to the connections
  • Large current and voltage measuring range: for a wide range of applications in research and development, training and production, including standardized high voltage and high current measurements
  • Outstanding measurement performance: very high source and measurement resolution for precise low-level measurements as well as high measurement speed for increased test throughput and cost efficiency
  • Innovative GUI and 4.3-inch LCD color display: graphical and numerical representation of the measurement results simplifies troubleshooting and characterization
  • Integrated AWG measurement functionality: Arbitrary signal generation for waveforms with up to 100,000 steps and sweep functions support the characterization of devices depending on the applied voltage / current
  • SCPI programming for device control: two SCPI instruction sets, conventional and standard, allow compatibility with older SMU models and maximize the performance of the B2900B / BL series

The SMU series B2900B / BL offers a total of six models with an output voltage of up to 210 V and a maximum output current of 3 A DC or 10.5 A pulsed. This enables a wide variety of applications with just a single device. The high measurement resolution of up to 10 fA / 100 nV enables the precise characterization of even weak signal events. The color display supports graphic and numeric displays. Your measurement results are therefore optimally legible, which makes troubleshooting easier and can increase productivity and cost efficiency.

Application examples:

  • Test of optical components: laser / photodiodes
  • Test of organic components: OLED (Organic Light Emitting Diode)
  • Test of solar cells and batteries
  • Characterization of materials from nanotechnology
  • Test of power management devices: linear regulator LDO (low-dropout)
  • Testing of semiconductor components: diodes, laser diodes, LEDs, sensors, FETs, transistors, ICs, resistors, varistors, thermistors, switches, etc.

Lieferumfang

  • Power cord
  • USB cable
  • Brief overview
