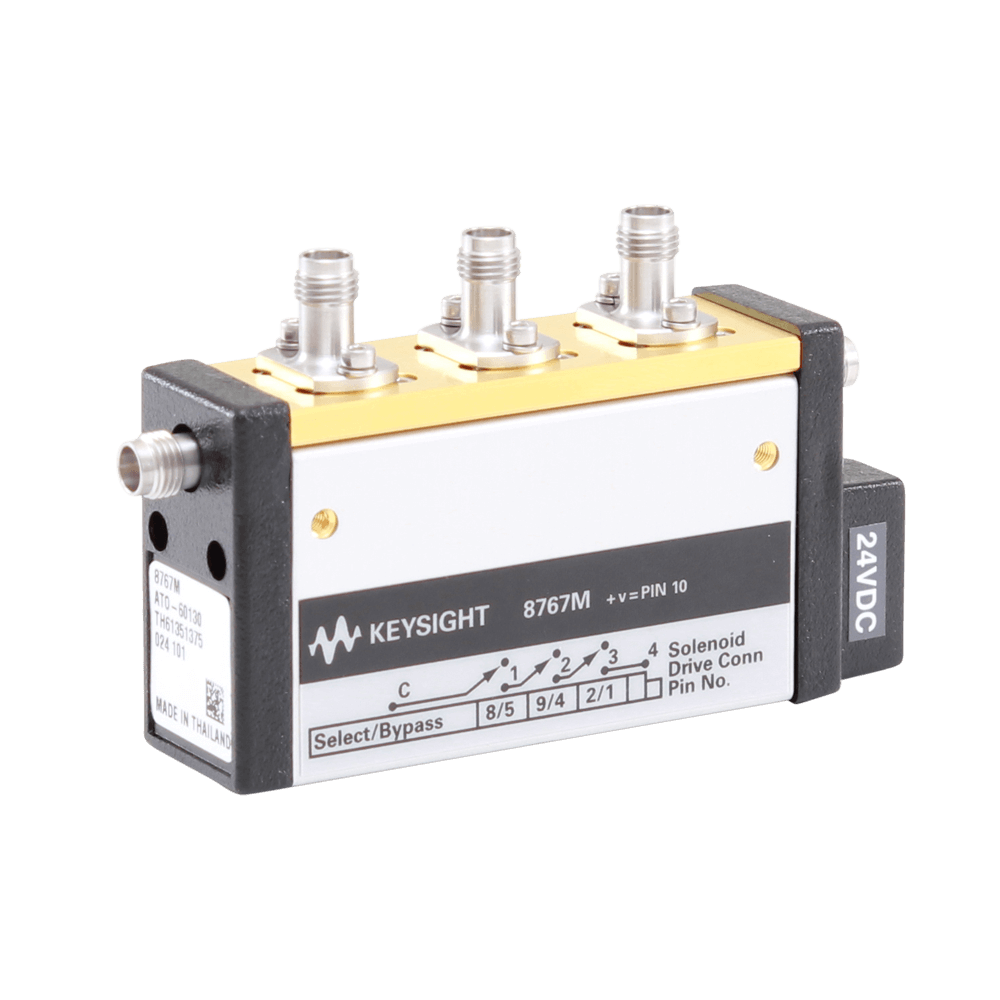

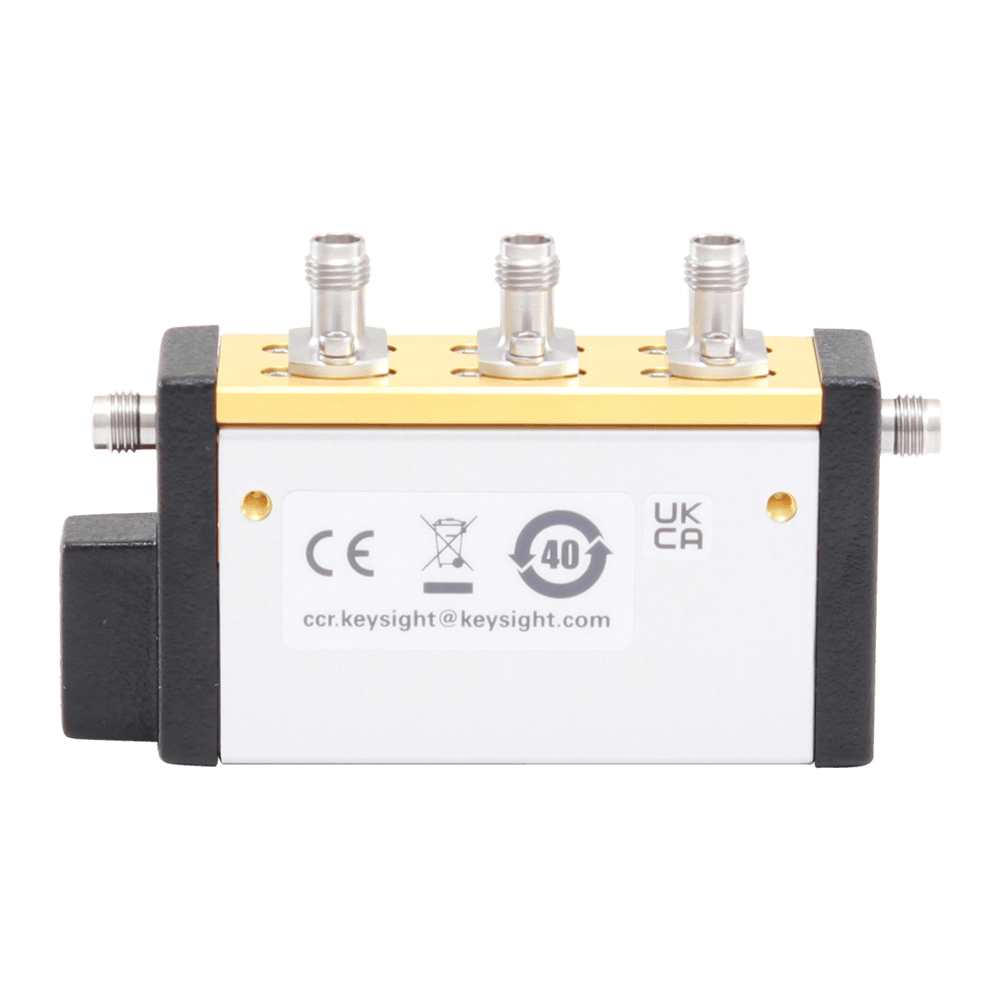

Keysight 8767M | Coaxial switch, multiport, SP4T, DC to 50 GHz, 2.4 mm connections

Manufacturer number: 8767M

Keysight 8767M
Keysight 8767M
Keysight 8767M
Keysight 8767M
Keysight 8767M
Keysight 8767M
Keysight 8767M
Keysight 8767M
2 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Product inquiries
Highlights Description Related Articles

Keysight 8767M | Multiport coaxial switch, DC to 50 GHz, SP4T

Independant Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Detaildescription

8767M | Coaxial switch, multiport, SP4T, DC to 50 GHz, 2.4 mm connections

Keysight now offers a family of higher frequency switches for your communications and aerospace applications. Combining low SWR with long life and excellent repeatability, these switches safeguard your test platform from failures, recalibration, downtime, and lost production.

The Keysight 8767M is a single-pole, four-throw electromechanical switch.

Key Features & Specifications:

  • DC to 50 GHz
  • Single-pole, four-throw
  • 2.4 mm (f), 2.4 mm (f) standard (option 101)
  • 2.4 mm (f), 2.4 mm (m) (option 100)
  • 5, 15, 24 volt solenoids supply voltage (option 011, 015, 024 respectively)
  • Commercial calibration certificate with test data also available (option UK6)
  • Excellent repeatability: less than 0.03 dB typical
  • Low insertion loss: less than 2.6 dB at 50 GHz
