Keysight 8765D | Coaxial, switch SPDT, DC - 40 GHz, 2.4 mm sockets

Manufacturer number: 8765D

8765D
Delivery time upon request

On Request

or choose one of the following options:
Request a quote Product inquiries
Highlights Description Related Articles

Keysight 8765D | Coaxial changeover switch, DC to 40 GHz, SPDT.

  • Changeover switch (SPDT)
  • Frequency range DC to 40 GHz
  • Opens before the signal path is closed
  • Very good RF properties
  • Insertion loss: <0.2 dB + 0.023 dB / GHz to 26.5 GHz, 0.75 dB + 0.023 dB / GHz to 40 GHz
  • Isolation: 110 dB - 2.25 dB / GHz
  • Connections: 2.4 mm sockets (with option 292: 2.92 mm sockets)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

8765D | Coaxial, switch SPDT, DC - 40 GHz, 2.4 mm sockets

Keysight's coaxial changeover switch (SPDT / Single Pole Double Throw) 8765D is designed for use in measuring systems and ATE systems for the microwave range. It offers excellent mechanical and electrical properties. The connections are SMA, for a frequency range from DC to 26.5 GHz with 3.5 mm connections and for the frequency range up to 40 GHz with 2.4 mm connections. The switch was developed from the ground up for high reliability and very good properties and is specified for 10 million switching cycles.

The switching voltages can be optionally selected: 5, 10, 15 and 24 VDC. A further option determines the type of DC connection cable - either ribbon cable with in-line plugs or with tinned connecting wires.

Alternate products (5 products)

Alternate products (5 products)

8765A
Keysight
8765A
Coaxial, switch SPDT, DC - 4 GHz, SMA sockets
Delivery time upon request
On Request
8765C
Keysight
8765C
Coaxial, switch SPDT, DC - 26.5 GHz, 3.5 mm sockets
Delivery time upon request
On Request
8765B
Keysight
8765B
Coaxial, switch SPDT, DC - 20 GHz, SMA sockets
Delivery time upon request
On Request
8765F
Keysight
8765F
Coaxial, single-pole, two-pole switch, SPDT, 75 ohms, DC to 4 GHz, SMB connections
Delivery time upon request
On Request

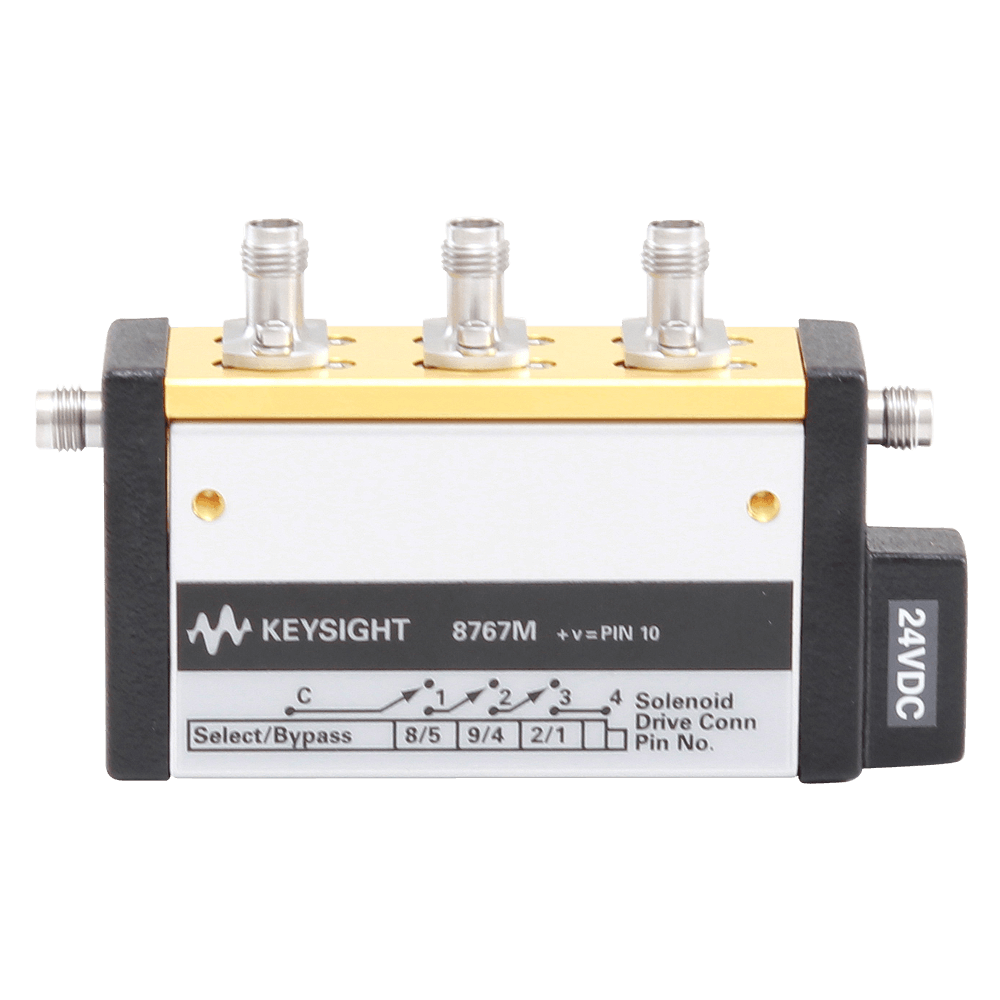

8767M
