Keysight 8474E | Coaxial detector, 0.01 - 50 GHz

Manufacturer number: 8474E

Keysight 8474E
Delivery time upon request

On Request

or choose one of the following options:
Product inquiries
Highlights Description Related Articles

Keysight 8474E | Planar-Doped Barrier Diode Detector, 0.01 to 50 GHz.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

8474E | Coaxial detector, 0.01 - 50 GHz

The Keysight 8474E is a high-performance detector using a gallium arsenide, planar-doped barrier detecting element. It features extremely flat frequency response over its entire band of operation and very good frequency response stability versus temperature. The Keysight 8474E is also very rugged with high resistance to ESD damage. The Keysight 8474E detector is available with a 2.4-mm (0.01 to 50 GHz) connector. This detector offers the options for optimal square-law loads (option 102) and for positive polarity output (option 103). Because the unit-to-unit frequency response tracking of this device is typically better than plus or minus 0.3 dB, no matched response option is offered.

Key Features & Specifications:

  • Superior RF performance
  • Frequency Response: ± 0.4 dB to 26.5 GHz, ± 0.6 dB to 40 GHz, ± 1.0 dB to 50 GHz
  • Maximum SWR: 1.2 to 26.5 GHz, 1.6 to 40 GHz, 2.8 to 50 GHz
  • Low level sensitivity:> 0.4 mV / uW to 40 GHz,> 0.34 mV / uW to 50 GHz
  • Maximum operating input power: 200 mW
  • Typical Short-term Maximum Input Power (<1 minute): 1 W
  • Output polarity: negatives
  • Input connector: 2.4 mm male
  • Output connector: SMC male

Accessoires (1 product )

Keysight 8471D
Keysight 8471D
Coaxial detector 0.0001 - 2 GHz
Delivery time upon request
On Request

Alternate products (9 products )

Keysight 8471D
Keysight 8471D
Coaxial detector 0.0001 - 2 GHz
Delivery time upon request
On Request
Keysight 8474B
Keysight 8474B
Coaxial detector, 0.01 - 18 GHz
Delivery time upon request
On Request
Keysight 8471E
Keysight 8471E
Coaxial detector, 0.01-12.4 GHz
Delivery time upon request
On Request
Keysight 8472B
Keysight 8472B
LBHCD crystal detector 18 GHz, low-barrier Schottky diode detector, SMA
Delivery time upon request
On Request
Keysight 8473B
Keysight 8473B
Coaxial crystal detector
Delivery time upon request
On Request
Keysight 8473C
Keysight 8473C
Coaxial crystal detector
Delivery time upon request
On Request
Keysight 8473D
Keysight 8473D
Planar-Doped Barrier Diode Detector, 10 MHz to 33 GHz
Delivery time upon request
On Request
Keysight 8474C
Keysight 8474C
Coaxial detector, 0.01 - 33 GHz
Delivery time upon request
On Request

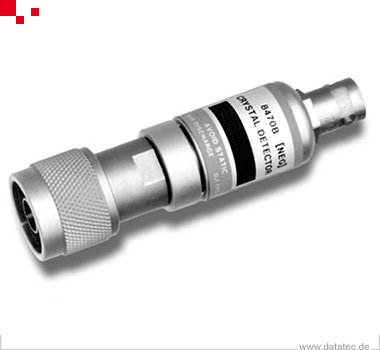

Keysight 8470B
