Keysight DSOX6002A | Oscilloscope, DSO, 2-channel, 1 GHz

Manufacturer number: DSOX6002A

Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Keysight DSOX6002A
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Keysight DSOX6002A | 2-channel digital storage oscilloscope with a bandwidth of up to 6 GHz (expandable), sampling rate up to 20GS / s, a signal acquisition rate of 450,000 signals / s in every operating state and a capacitive multi-touch screen with 30.7 cm display size.

  • 2-channel digital storage oscilloscope with 1 GHz bandwidth (expandable up to 2.5 / 4/6 GHz)
  • Later upgradeable to a mixed-signal oscilloscope with 16 digital channels with the DSOX6MSO option
  • 20 GS / s sample rate
  • 4 megapoints memory depth
  • Segmentable memory built in as standard (adjustable up to 1,000 segments)
  • Up to 450,000 signals / s signal acquisition rate for fast acquisition of rare events
  • Vertical resolution 8 bit / up to 12 bit in high resolution mode
  • Input impedance: 1 MΩ ± 1% (14 pF), 50 Ω ± 3%
  • Minimum intrinsic noise : 115 μVrms at 1 mV / div (1 GHz), 210 μVrms at 1 mV / div (6 GHz)
  • MegaZoom IV memory and display technology for fast navigation and signal analysis
  • Brilliant 30.7 cm color touch screen (capacitive multi-touch screen 800x600px)
  • Adjustable persistence: Off, infinite, variable (100ms - 60s)
  • 256 brightness levels to show the frequency of signal details
  • Histogram representation, highlighted in color
  • Powerful trigger options and math functions
  • Advanced math built in by default
  • InfiniiScan Touch Zone (2 zones) triggering with 21 standard trigger modes for fast debugging
  • Operation via multi-touch screen, mouse & keyboard or via front panel
  • "Push buttons" and direct menu buttons for quick and intuitive operation
  • 56 automatic measurements - simultaneous display of up to 10 measurements
  • QuickAction front button for quick recall of an individual operating status
  • Voice control in 14 languages supports 20 commands such as Run, Stop, Single or Auto Scale
  • Graphical user interface and help function in German (11 languages)
  • Extended FFT with 1 Mpts memory
  • Built-in 5-digit frequency counter (10-digit with option)
  • Whisper-quiet operation for relaxed and concentrated work
  • Keysight (formerly Agilents electronic measurement technology) Auto sample interface for connecting active Keysight (formerly Agilents electronic measurement technology) probes or classic passive probes with BNC connector or BNC connector with read out
  • Rear video output for connecting an external projector / monitor
  • The bandwidth can be expanded at any time (the oscilloscope that grows with your needs)
  • Can be expanded at any time with a built-in 2-channel arbitrary function generator
  • Can be expanded at any time with mask test, bus decoding, GPIB, voltmeter, power measurement analysis
  • Dual bus decoding of Flexray, I²C, SPI, CAN, LIN, RS232 / RS485 / UART, I²S buses, MIL STD, ARINC, FPGA, USB 2.0 etc. (with opt. Modules)
  • Optional jitter and real-time eye chart analysis
  • Built-in LAN interface 10 / 100Base-T - oscilloscope can be operated remotely via web browser
  • 3 USB 2.0 host interfaces for connecting USB memories, printers, mouse and keyboard), 1 USB device interface for remote control via PC
  • Transfer and documentation options for the measurement data:
    In the internal memory and via USB interfaces, the data / setups can be saved on external storage media and further processed (e.g. in the Windows document or in the Arb generator)
  • Supported memory formats : 8 or 24-bit bitmap image (* .bmp), PNG 24-bit image (* .png), CSV data (* .csv e.g. for Excel), ASCII XY data (* .csv), binary Data (* .bin), Lister data (* .csv), reference waveform data (* .h5), masks (* .mask), arbitrary waveform data (* .csv), power harmonic data (* .csv)
  • Internally storable setups: 10 setups (* .scp)
  • Housing dimensions: W 425 mm x H 288 mm x D 148 mm
  • Weight: 6.8 kg
  • Standard calibration interval: 2 years
  • Warranty: 3 years (optionally 5 years)

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

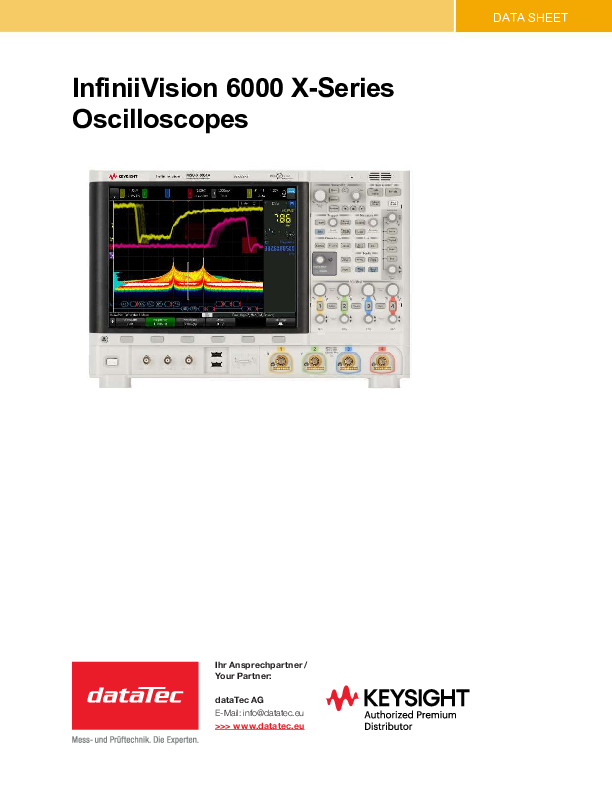

Datasheet
pdf | 3.81 MB
User report
pdf | 2.99 MB

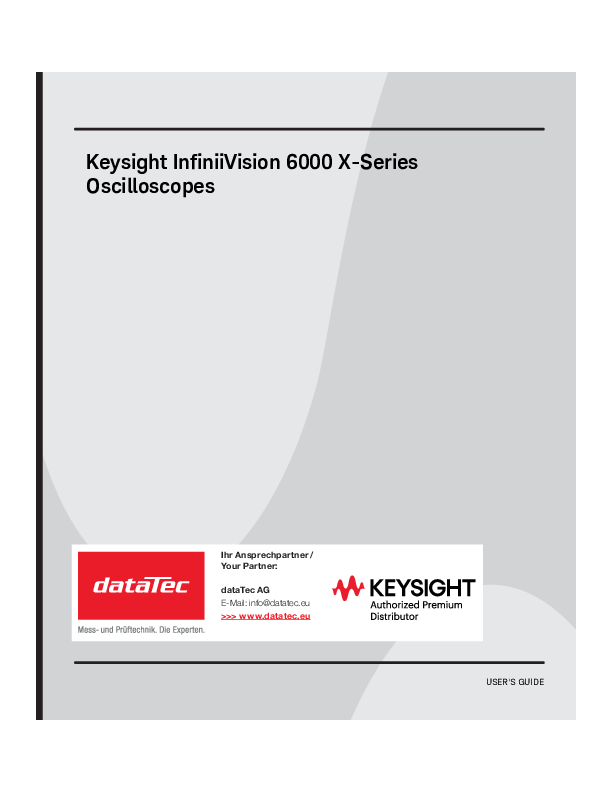

Userguide
pdf | 9.23 MB

Description

DSOX6002A | Oscilloscope, DSO, 2-channel, 1 GHz

The 6000X comes with color grading and histogram display as standard, which means that, for example, "frequencies of signal components" can be differentiated in color.

The basic device DSOX6002A with 1 GHz bandwidth is:

  • optionally upgradeable to 2.5 / 4/6 GHz bandwidth at any time
  • optionally upgradeable at any time with the DSOX6MSO option to a mixed-signal oscilloscope with 16 digital channels
  • optionally expandable at any time with options depending on your measurement task

The hardware-based zone touch trigger allows very simple and fast isolation of signal components directly on the multi-touch display. This means that no complex operations are required in the trigger menu. Two trigger zones can be selected. With two fingers, the gesture control allows an intuitive signal display such as zoom on the time or amplitude axis.

Thanks to the high signal acquisition rate, the oscilloscope reacts in real time to changes in settings. Even if digital channels, protocol decoding, mathematical functions or automatic measurement functions are activated. This increases the detection probability many times over for random or rare events that slower oscilloscopes often miss (dead time behavior).

These oscilloscopes are unusually versatile because they combine the possible functions of many measuring devices : oscilloscope, logic analyzer, protocol analyzer, voltmeter, frequency counter and 2-channel arbitrary function generator. And your investment is optimally protected, because all models can be upgraded in every respect - including bandwidth - if necessary.

Voice control: if you need both hands for positioning probes, you can use voice control to give simple measurement commands to the oscilloscope, such as starting a measurement or stopping a measurement.

Note:

When you purchase this new device, you will now receive a “Node-Locked” license for the Keysight measurement and analysis app BenchVue for oscilloscopes BV0004B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Lieferumfang

  • 1 x oscilloscope 6000X
  • 1 passive probe including accessories per channel
  • Documentation (user manual) on CD
  • Power cord
  • Traceable calibration certificate
