Keysight 34460A Truevolt Series | Bench Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)

Manufacturer number: 34460A

34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
34460A Truevolt Series
1 in stock. Ready to ship in 1 business day

On Request

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Technical Data Documents / Downloads Description Scope Related Articles

Keysight 34460A Truevolt series | 6 ½ digit Truevolt bench multimeter with graphic color display for displaying measurement curves, histograms, bar charts, statistics and mathematical functions.

  • Resolution: 6½ digits
  • Measurement accuracy: DCV 0.0075%, ACV 0.09%
  • Accuracy over a year (max. Drift): 75 ppm
  • Measuring rate: 300 measurements per second
  • Memory for 1,000 measurements
  • A total of 11 measurement functions:
    - DC voltage measuring range: 100 mV - 1,000 V / resolution from 1 μV
    - AC voltage measuring range: 100 mV - 750 V / resolution from 1 μV
    - Current measurement range DC / AC: 100 μA - 3 A / resolution from 1 nA
    - 2- and 4-wire resistance 100 Ω - 100 MΩ / resolution from 1 mΩ
    - Constant measuring output voltage of 5 V for measuring (LED) diodes and arrays
    - Frequency / period 3 Hz - 300 kHz
    - Temperature measurements via optional RTD / PT100 and thermistor
    - capacitance measurement 1 nF to 100 μF
  • Bright, easy-to-read, high-resolution, graphic color display with a diagonal of 109 mm (4.3 inch) for displaying measurement curves, histograms, bar diagrams, statistics and mathematical functions
  • I / O interface: Standard: USB, (optional: GPIB and / or LAN / LXI core and external trigger)
  • Front USB interface for external storage medium
  • 100% compatibility with SCPI program commands like the 34401A etc.
  • Saving and displaying the measurement data on a PC or mobile device (e.g. smartphone)
  • Drag-and-drop data transfer via USB - no additional software is required
  • Easy operation and setting thanks to intuitive, menu-based interface
  • Reduction of noise and measurement errors through Truevolt technology
  • All specifications meet the requirements of ISO / IEC 17025
  • Dimensions: (W x H x D): 261.2 mm x 103.8 mm x 303.2 mm
  • Weight: 3.68 kg
  • 3 year guarantee

Technical Data

Documents & Downloads

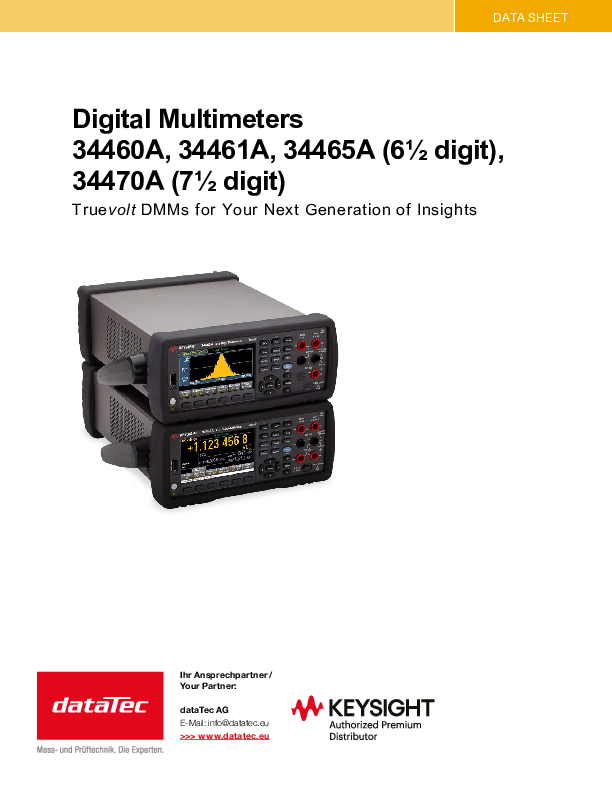

Datasheet
pdf | 1.78 MB
User report
pdf | 0.70 MB
Userguide
pdf | 5.27 MB

Description

34460A Truevolt Series | Bench Multimeter, TRMS, 6 ½ digits, Truevolt (344xxA)

The 6½-digit 34460A digital multimeter with " Truevolt " technology from Keysight (formerly Agilent's electronic measurement technology) offers a multitude of measurement options and measured value displays that are unique to a DMM (Digital Multi Meter). "Truevolt" is an innovative, patented A / D converter technology with which external factors such as noise and the load on the measuring point are eliminated by the measurement. The measurement accuracy of 0.0075% thus achieved is unmatched for DMM in this price range Overall, the device provides a balanced balance between measurement resolution, measurement accuracy, linearity and measurement speed.

The multimeter 34460A is a 100% replacement for the quasi-industry standard multimeter 34401A. In 34401A mode, the 34461A multimeter is 100% software compatible with the 34401A multimeter. In addition to the higher accuracy due to Truevolt, the 34460A offers temperature measurements for RTD / PT100 and thermistor sensors.

Note:

When you purchase this new device, you will now receive a "Node-Locked" license for the Keysight measurement and analysis app BenchVue for digital multimeter BV0001B free of charge . This is limited to the specific device. The license is not limited in time.

On the Keysight website you will find further information on downloading, registering and activating your BenchVue license: To the Keysight website.

Keysight defines "DMM" for these Truevolt devices in Display, Measure, Move:

  • The display , with a diagonal of 109 mm, offers the measured values in a pure number, combination of numbers and bars, histogram, statistics and in a trend display.
  • Measure : With the patented A / D converter technology, external influences on the measured values are eliminated, e.g. B. noise introduced by the power supply and environmental, injected noise or injected current. When digitally measuring alternating variables using direct sampling technology and A / D conversion, a much faster and more accurate RMS measurement is carried out.
  • Move : measurement curves - save, display, take away. Easy export of measurement data from one or time-correlated from several devices to an external USB stick, PC or to mobile devices such as a tablet PC or smartphone. Data or display curves can easily be exported to Microsoft Excel, Word or to MATLAB. With freely available software from the Apple App Store, the DMM Mobile Utility software can be downloaded, which can be used to control the devices connected via LAN and to transfer measured values and curves. For long-term examinations, warnings can also be triggered, which inform the user in the event of unforeseen problems.

Lieferumfang

  • Multimeter 34460A
  • Power cord
  • Calibration certificate
