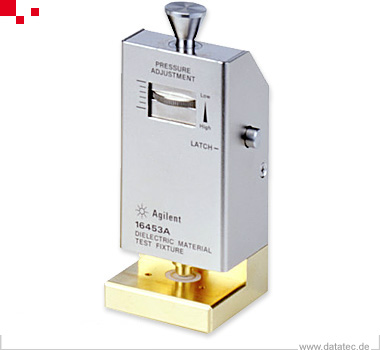

Keysight 16453A | Test adapter for dielectric material

Manufacturer number: 16453A

Keysight (formerly Agilent's electronic measurement technology) 16453A test adapter for measuring the dielectric material parameters.

  • Frequency range 1 MHz to 1 GHz
  • Test material dimensions: Thickness: 0.3 to 3 mm, diameter ≥ 15 mm

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

16453A | Test adapter for dielectric material

With the test adapter in conjunction with an impedance analyzer, the dielectric material constants can be determined very precisely. The material to be measured is clamped between two parallel-planar electrodes, thus forming a capacitor. The 16453A test fixture has flexible electrodes that conform to the surface of the material under test.
