Keithley 7706 | All In One I / O modules

Manufacturer number: 7706

7706
7706
7706
7706
Delivery time upon request

€1,540.00

plus VAT. €1,832.60 VAT plus shipping costs

or choose one of the following options:
Request a quote Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description

Tektronix 7706 | All In One I / O modules

Documents & Downloads

Datasheet
pdf | 0.92 MB
User report
pdf | 3.19 MB

Description

7706 | All In One I / O modules

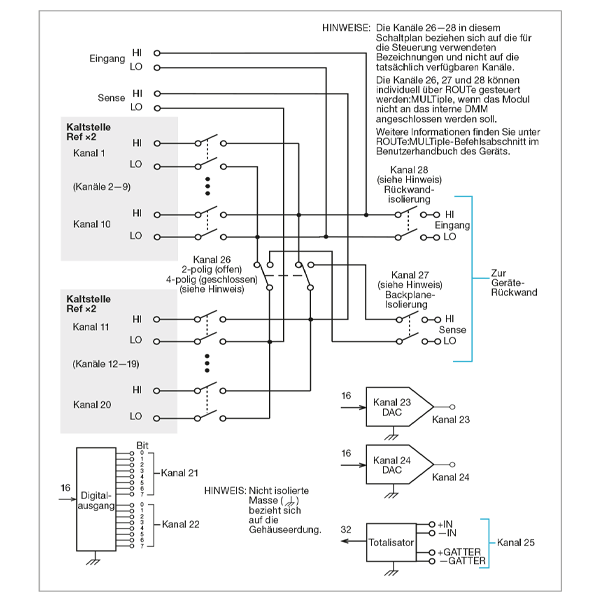

The 7706 plug-in module for the DAQ6510 system offers 20 channels for 2-pole or 10 channels for 4-pole multiplexer switching with automatic cold junction compensation (CJC). It has two analog outputs (±12 V, 5 mA), 16 digital outputs and an event counter/totalizer for monitoring and controlling system components. Ideal for temperature measurements with RTDs, thermistors and thermocouples, the module can handle voltages up to 300 V and currents up to 1 A (60 W, 125 VA max.). It can be configured as two independent multiplexer banks and stores relay terminations in the onboard memory.

About the Manufacturer

Keithley
Keithley
The Tektronix company Keithley was founded in a garage in 1946 and quickly became a leading provider of advanced electrical measurement instruments and systems for the specialized needs of manufacturers of electronic devices for high-performance production testing, process monitoring, and product development and research.
