Keithley 2651A | High Power SourceMeter SMU, Source Measure Unit, up to 40 V, up to 40 A, up to 200 W, integrated digital multimeter with 6½ digits.

Manufacturer number: 2651A

Keithley 2651A
Keithley 2651A
Keithley 2651A
Keithley 2651A
Keithley 2651A
Keithley 2651A
Delivery time upon request

On Request

or choose one of the following options:
Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Keithley 2651A | High Power SourceMeter SMU, Source Measure Unit, output voltage up to 40 V, output current up to 40 A, output power up to 200 W, integrated digital multimeter with 6½ digits.

  • 4-quadrant operation: Use as a precision source and sink
  • Integrated digital multimeter: 6½ digits, DCV, DCI, resistance
  • 5 output voltage ranges: 100 mV, 1 V, 10 V, 20 V, 40 V; expandable up to 80 V by connecting 2 devices in series
  • Measurement resolution of the voltage: 1 µV to 100 µV depending on the measuring range
  • Basic accuracy of voltage measurement: 0.02%
  • Output current: 10 nA to 1 A in decade steps, then 5 A, 10 A, 20 A and 50 A (12 ranges); expandable up to 100 A pulses by connecting 2 devices in parallel
  • Current measurement resolution: 1 pA to 100 µA depending on the measuring range
  • Basic accuracy of the current measurement: 0.05 to 0.12%, depending on the measuring range
  • TSP technology (Test Script Processor): to create and execute user-defined test scripts for high-speed test automation, to create programming sequences for asynchronous device operation and to expand the number of channels without programming
  • Optional ACS software for semiconductor component characterization with trace function (generates a set of characteristic curves for components)
  • Parallel test execution and precise timing when several SMU 2651A and 2600B are connected to each other (up to 32 devices, max. 64 channels)
  • 14 digital I / O lines for direct connection to a test station, a component handler or other automation tools
  • Interfaces: USB, GPIB, LXI Ethernet, RS-232, digital I / O
  • Power supply: 100/240 V AC, 50/60 Hz
  • Dimensions: W 435 x H 104 x D 620 mm (including handles)
  • Weight: 10 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

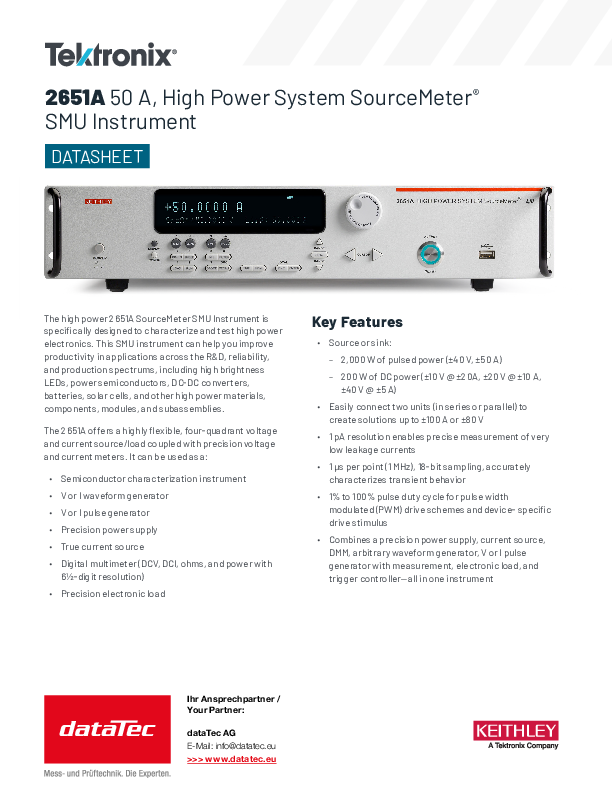

Brochure
pdf | 2.98 MB

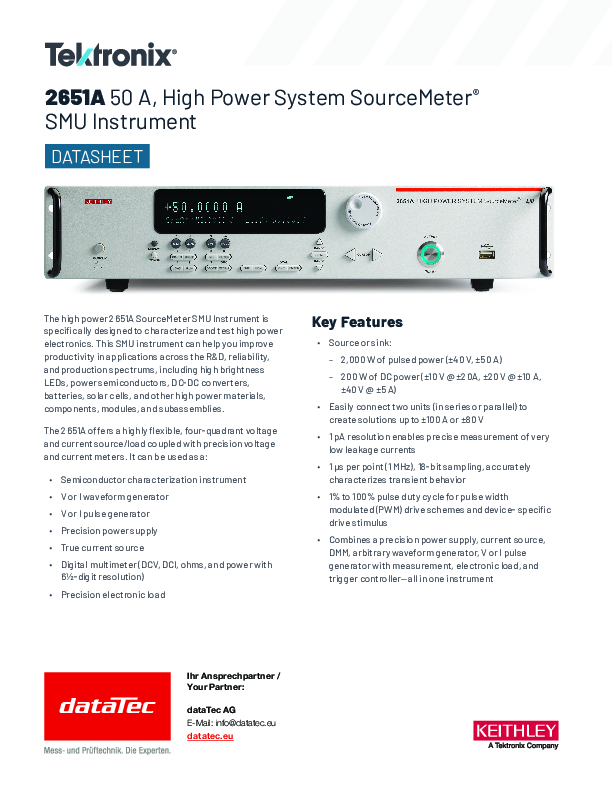

Datasheet
pdf | 1.75 MB

Description

2651A | High Power SourceMeter SMU, Source Measure Unit, up to 40 V, up to 40 A, up to 200 W, integrated digital multimeter with 6½ digits.

The High Power SourceMeter 2651A is specially designed for the characterization and testing of high-performance electronics. The SMU supports you in improving your productivity in development, production and quality control. The system 2651A is used, among other things, for testing high-performance LEDs, power semiconductors, DC-DC converters, batteries, solar cells and other high-performance components, modules and sub-assemblies.

2651A is a highly flexible four-quadrant voltage and current source / load with an integrated, 6½-digit digital multimeter. The Source Measure Unit is used as:

  • Precision power supply with V and I feedback
  • Precision load for the characterization of semiconductors
  • V or I waveform generator
  • V or I pulse generator
  • 6½-digit digital multimeter for measurements of DCV, DCI, resistance and power

Using TSP-Link technology, several 2651A models can be connected to other 2600B series SMUs to form a larger integrated system with up to 32 devices (max. 64 channels). The built-in 500 ns trigger control guarantees precise timing and optimizes channel synchronization. The fully isolated, independent channels enable real SMU-per-pin tests.

The voltage range can be expanded from 40 V to 80 V in series connection of two 2651A devices. The built-in intelligence simplifies testing by addressing the units as a single instrument and thus offering an outstanding dynamic range from 100 A to 1 pA - for tests over a very wide range of power semiconductors or other components.

Digitize or integrate:

A major advantage of the SMU 2651A are the two available measurement modes, which enable precise characterization of transient and stationary behavior, including rapidly changing thermal effects. In order to minimize switching times, a separate analog-digital converter is used in each measuring mode, one for current and one for voltage. Both converters scan simultaneously to enable the source data (output current and voltage) to be read back accurately without reducing the test throughput. This allows changes in the current and voltage behavior to be recorded simultaneously and very quickly. The "Digitize" mode achieves a conversion time of 1 µs per scan for the two 18-bit A / D converters for the simultaneous acquisition of voltage and current transients. In the "Integrate" measuring mode, the two 22-bit A / D converters enable an even more precise measurement of voltage and current.

High speed pulses:

During the test, the 2651A minimizes the undesirable effects of the self-heating of the DUT (Device Under Test) by means of short pulses (100 µs) for control and measurement. In addition, the pulse width can be expanded from 100 μs to DC and the pulse duty factor from 1 to 100% by programming. One device can generate pulses of up to 50 A. If two devices are connected in parallel using TSP technology (Test Script Processor), pulses up to 100 A can be generated without the usual power and / or channel limitation that mainframe-based systems offer.

Lieferumfang

  • 2651A-KIT-1A Low Impedance Cable Kit, 1 m
  • CS-1592-2 High Current Phoenix connector (male)
  • CS-1626-2 High Current Phoenix connector (female)
  • CA-557-1 Sense Line Cable Kit, 1 m
  • 7709-308A digital I / O connector
  • CA-180-3A TSP-Link / Ethernet Cable
  • Documentation CD
  • Software tools and drivers (CD)
