Keithley 2604B | SourceMeter SMU, Source Measure Unit, 2-channel, 100 mV to 40 V, 100 nA to 10 A, up to 40.4 W, integrated digital multimeter, 6½ digits, current / voltage source and sink, arbitrary signal generator.

Manufacturer number: 2604B

Keithley 2604B | SourceMeter SMU, Source Measure Unit, 2-channel, output voltage 100 mV to 40 V, output current 100 nA to 10 A, output power up to 40.4 W, integrated digital multimeter 6½ digits, current / voltage source and sink, arbitrary signal generator.

  • Number of channels: 2
  • 4-quadrant operation: Use as a precision source and sink
  • Integrated digital multimeter: 6½ digits, DCV, DCI, resistance
  • 4 output voltage ranges: 100 mV, 1 V, 6 V, 40 V
  • Measurement resolution of the voltage: 100 nV to 10 µV, depending on the measuring range
  • Basic accuracy of voltage measurement: 0.015%
  • 10 output current ranges: from 100 nA to 10 A.
  • Current measurement resolution: 100 fA pA to 10 µA, depending on the measuring range
  • Basic accuracy of the current measurement: 0.02 to 0.05%, depending on the measuring range
  • Maximum output power: 40.4 W per channel
  • I / V characterization via mobile device: compatible with the Keithley app IVy for plug & play I / V measurements with an Android device
  • Optional ACS software for semiconductor component characterization with trace function (generates a set of characteristic curves for components)

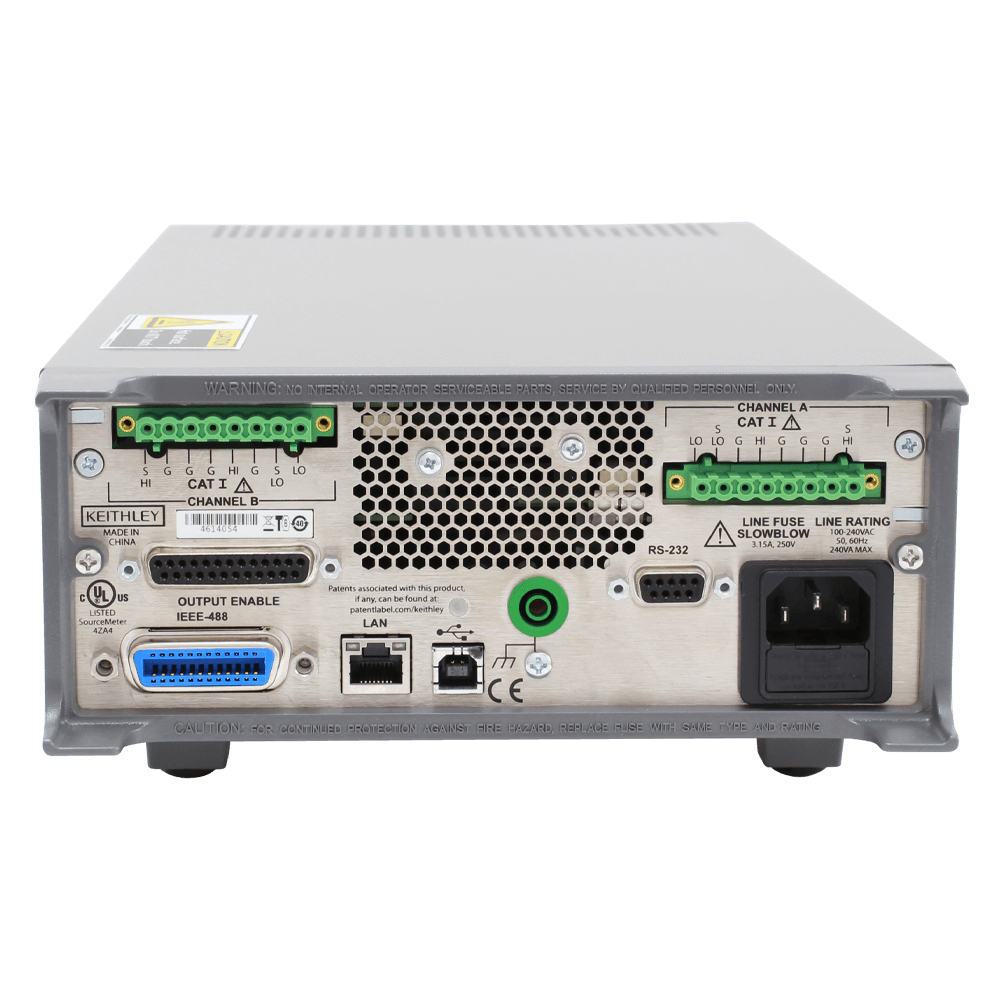

  • Interfaces: USB 2.0, GPIB, LXI Ethernet, RS-232
  • Power supply: 100 to 250 V AC, 50 to 60 Hz
  • Dimensions: W 238 x H 104 x D 460 mm (including handles)
  • Weight: 5.5 kg

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Description

2604B | SourceMeter SMU, Source Measure Unit, 2-channel, 100 mV to 40 V, 100 nA to 10 A, up to 40.4 W, integrated digital multimeter, 6½ digits, current / voltage source and sink, arbitrary signal generator.

The SMU 2600B series offers single and two-channel models that support your measurement tasks as a precision power supply, electronic load, 6½-digit DMM (digital multimeter) and as an arbitrary signal generator - for an increase in productivity in I / V characterization in the laboratory to the highly automated production test. The integrated web-based software enables location-independent IV measurements on any PC. Alternatively, the simple and fast plug & play application is supported via the Keithley app IVy and an Android mobile device.

To optimize your test throughput, you can run complete test programs in automated system applications thanks to the intelligent TSP technology (Test Script Processor). Up to 32 TSP-compatible devices from the SMU 2600B series can also be connected via TSP-Link. A host interface enables the control of all integrated devices from a central PC. The built-in 500 ns trigger control of this multi-channel system enables parallel high-speed measurements with precise timing and optimal synchronization (SMU-per-pin test). For applications that do not require system-level automation, the 2600B series includes three particularly cost-effective benchtop models: 2604B, 2614B and 2634B. The performance of these model variants is comparable to that of their 2602B, 2612B and 2636B counterparts, without the TSP link, contact check and digital I / O function.

The optional software ACS Basic Edition is available for the development, quality inspection or error analysis of semiconductor components: with access to extensive test libraries, script editor for quick adaptation of existing tests and analysis tools for quick comparison of measurement results and for a wide range of mathematical functions.

Lieferumfang

  • 2600 kit connection set
  • 2600B-800A Emulation Script (USB stick)
  • 7709-308A digital I / O connector
  • 2x CA-180-3A TSP-Link / Ethernet Cable
  • Documentation CD
  • TSP Express software tool (integrated)
  • Test Script Builder Software (CD)
  • LabVIEW driver (CD)
