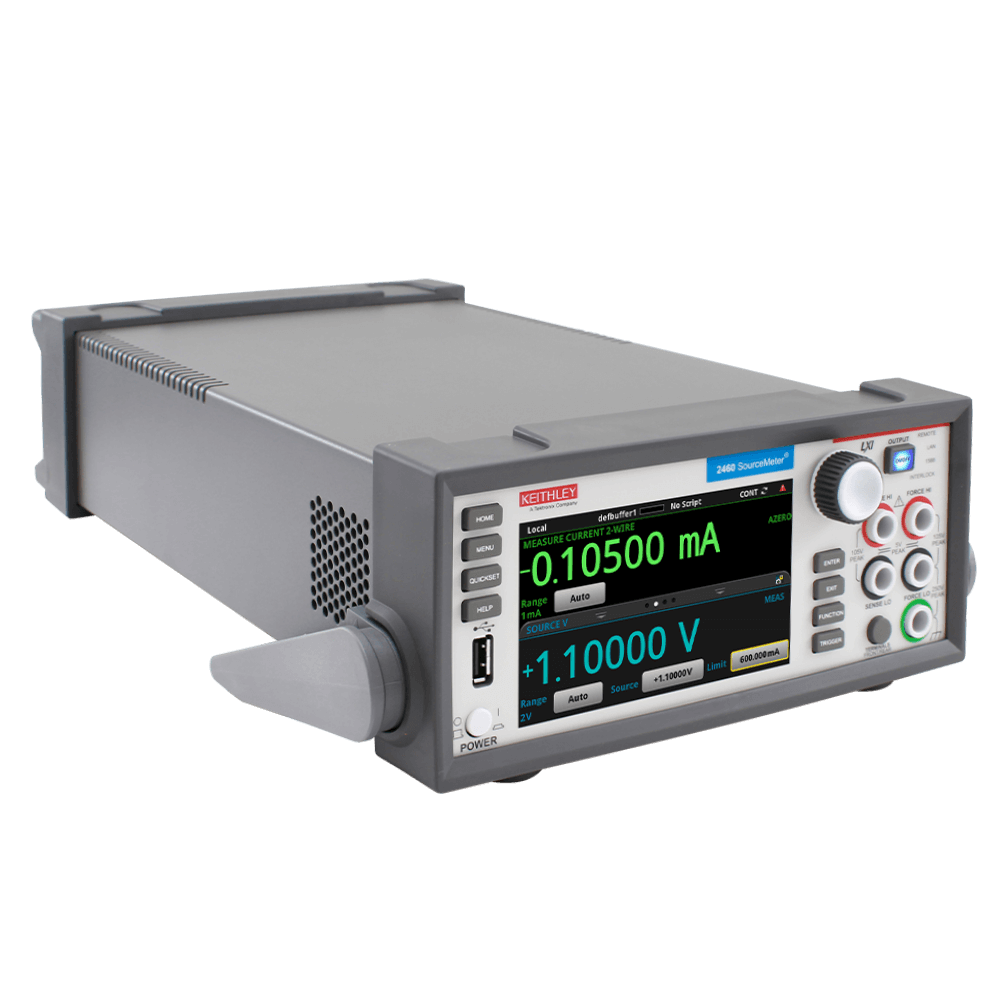

Keithley 2460 | Hi Current Digital SourceMeter, SMU, 200 mV - 100 V, 1 uA - 7 A, 100 W

Manufacturer number: 2460

2460
2460
2460
2460
2460
2460
2460
2460
2460
2460
2460
2460
2460
2460
Reordered - in stock. Delivery time on request

€11,100.00

plus VAT. €13,209.00 VAT plus shipping costs

or choose one of the following options:
Request a quote Product is already in cart Product downloads Product inquiries Request education-price
Highlights Documents / Downloads Description Scope Related Articles

Keithley 2460 | Hi Current Digital SourceMeter, V / I range 200 mV - 100 V / 1 uA - 7 A, max. 100 W.

  • 5 devices in one: current and voltage source as well as measurement of current, voltage and resistance
  • 4-quadrant operation: use as a precision source and sink
  • Integrated digital multimeter: 6½ digits, measurement accuracy: 0.012%
  • 2- and 4-wire measurements
  • Output power: up to 100 W DC
  • 6 voltage ranges (source and measurement): 200 mV to 100 V, measurement accuracy 0.015 to 0.012%
  • 10 current ranges (source and measurement): 1 µA to 7 A, measurement accuracy 0.02 to 0.15%
  • 9 ranges for resistance measurement: 20 MΩ
  • 5 sweep types for current source/measurement range/voltage: linear, logarithmic, dual linear, dual log, user-defined
  • 5-inch color display with touch function
  • Measurement speed: >3000 Rdgs/s
  • Buffer memory: >250,000 Rdgs
  • Interfaces: GPIB, USB, Ethernet (LXI), Digital I/O (int/ext. trigger signals and handler control), TSP-Link
  • Power supply: 100/240 V AC, 50/60 Hz
  • Dimensions: W 255 x H 106 x D 425 mm (including handles)
  • Weight: 4.75 kg

Documents & Downloads

Brochure
pdf | 2.98 MB

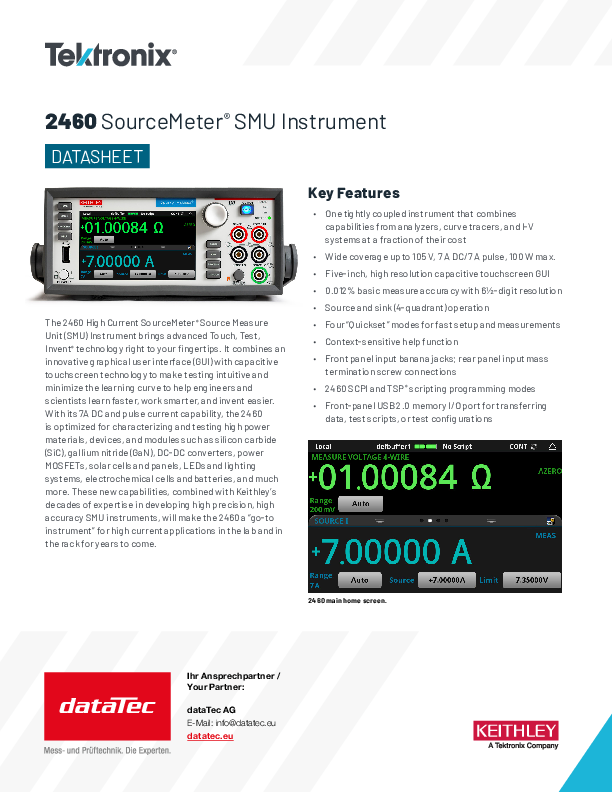

Datasheet
pdf | 2.10 MB
User report
pdf | 2.25 MB

Description

2460 | Hi Current Digital SourceMeter, SMU, 200 mV - 100 V, 1 uA - 7 A, 100 W

Measurements at a whole new level
SMU devices record device behavior with more details and can record the device in extended areas.
This will help you understand your device better and improve its quality and performance.

Intuitive user interface. Smart and fast.
You can measure, see and recognize more on the intuitive, multi-touch enabled user interface -
from unformatted readings to histograms to time-based and voltage / current-based signals - and get answers faster.

Lieferumfang

  • 2460-KIT Anschlussset
  • 8608 Hochleistungsprüfleitung
  • USB-B-1 USB-Kabel, Typ A zu B, 1m
  • CS-1616-3 Anschluss für Sicherheitsverriegelung
  • ; Kabel TSP-Link/Ethernet
