Keithley 2010 | Digital multimeter
Manufacturer number: 2010
Reordered - in stock. Delivery time on request
€6,180.00
or choose one of the following options:
Keithley 2010 | Digital multimeter
- 7½-digit resolution
- Noise background 100 nV eff
- Repeatability of 7 ppm DCV
- Low power resistance measurement mode
- Test function for dry circuit
- Offset function for compensated resistance
- 15 measurement functions include support for RTD and thermocouple temperature measurements
- Optional plug-in switch cards for multi-point measurements
- Connectivity: GBIP / RS232
Technical Data
2-/4-wire: | 2-/4 |
---|---|
Accuracy voltage measurement AC: | 0,06 % |
Accuracy voltage measurement DC: | 0,0037 % |
Article number: | 2010 |
Current measuring range AC: | 1 A - 3 A |
Current measuring range DC: | 10 mA - 3 A |
Dimensions (L x W x H) (mm): | 370 x 238 x 104 |
Diode test / continuity test: | Yes / Yes |
Display: | numerical |
Interfaces: | RS232, GPIB |
Measurements per second: | 2000 |
Model: | 2010 |
Number of positions: | 7.5 |
Resistance measuring range: | 10 Ω - 100 MΩ |
Special features: | opt. Multiplexer card |
Temperature measurement: | Yes |
Voltage measuring range AC: | 100 mV - 750 V |
Warranty (years): | 3 |
Weight (kg): | 5 |
max. Measuring range DC (V): | 1000 |
min. Measuring range DC (mV): | 100 |
Documents & Downloads
Description
2010 | Digital multimeter
The 7 ½ digit low noise multimeter of the 2010 series combines cost efficiency and high resolution with the throughput and accuracy required for high-speed DMM applications such as test accuracy sensors, converters, A / D and D / A converters, controllers, references, Plug connections, switches and relays are required. Based on the same low-noise, high-speed A / D converter technology as in the 2000, 2001 and 2002 series, the 2010 series offers four additional unique functions for resistance measurement. This series is perfect for characterizing resistance, linearity or isolating contacts, connectors, switches and relays.
Accessoires (4 products )
Keithley KICKSTARTFL DMM
KickStart Application Software for Digital Multimeters, Perpetual Floating License
Ready to ship in 5 to 10 business days
Alternate products (2 products )
Keithley 2001
High Performance 7.5 Digital Multimeter with 8K Mem;
1 in stock. Ready to ship in 1 business day
Keithley 2010 / E
Low Noise 7.5 Digit Digital Multimeter @ 220V
2 in stock. Ready to ship in 1 business day
Recommendations (6 products )
Keithley KTTI-GPIB
Easy to use GPIB interface for Keithley DMM6500 multimeters
3 in stock. Ready to ship in 1 business day

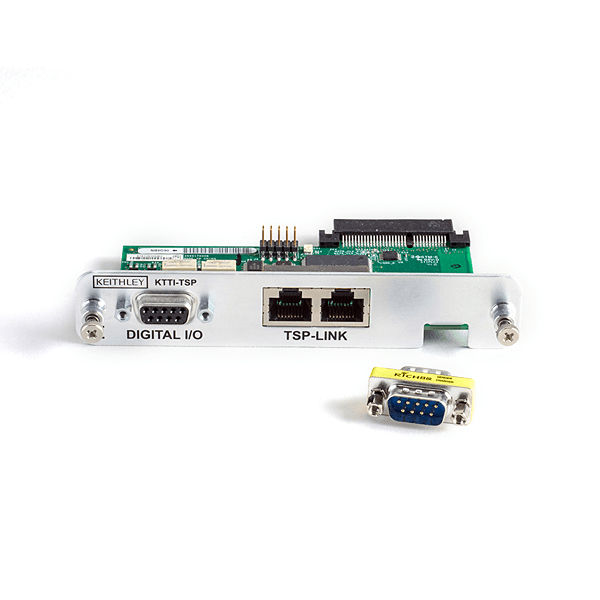

Keithley KTTI-TSP
