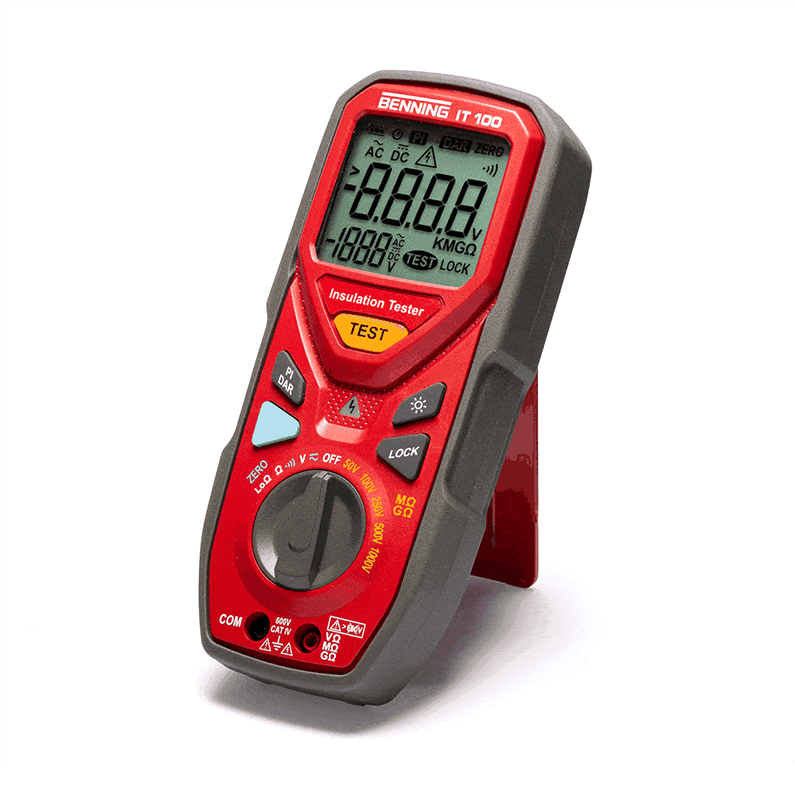

Benning IT 100 | Insulation and resistance measuring device for standard-compliant testing of electrical systems (044107)
Manufacturer number: 044107
or choose one of the following options:
BENNING 044107 | IT 100 insulation and resistance measuring device for standard-compliant testing of electrical systems.
- Display: 9999 digits (illuminated)
- Insulation resistance: 300kΩ - 20MΩ
- Low Ohm Resistance: 0.01Ω - 60Ω
- Resistance: 0.1Ω - 40kΩ
- Voltage: 0.1V - 600VAC/DC
- Continuity test: acoustic/optical 600 Ω
- Additional functions: polarization index (PI), absorbance (DAR), automatic discharge function, zeroing of the test leads, integrated fuse test, reverse voltage test lock
- Measurement method: RMS
- Measurement category: CAT IV 600 V
Technical Data
All-current sensitive RCDs type B, B+: | No |
---|---|
Article number: | 044107 |
Automatic test sequence: | No |
Check residual voltage: | No |
Counter start-up: | No |
DIN VDE 0100 / IEC 60364-6: | Yes |
Dimensions (L x W x H) (mm): | 206 x 90 x 51 |
Insulation measurement 50V: | Yes |
Insulation measurement 100V: | Yes |
Insulation measurement 250V: | Yes |
Insulation measurement 500V: | Yes |
Insulation measurement 1000V: | Yes |
Interfaces: | No |
Measured value memory: | No |
Mobile: | Yes |
Model: | Benning IT 100 |
Rotating field direction: | No |
Selective, SRCDs, PRCDs, type G/R: | No |
Software included: | No |
Stationary: | No |
Touch Display: | No |
Voltage drop: | No |
Weight (kg): | 0.51 |
e-Mobility (prepared): | No |

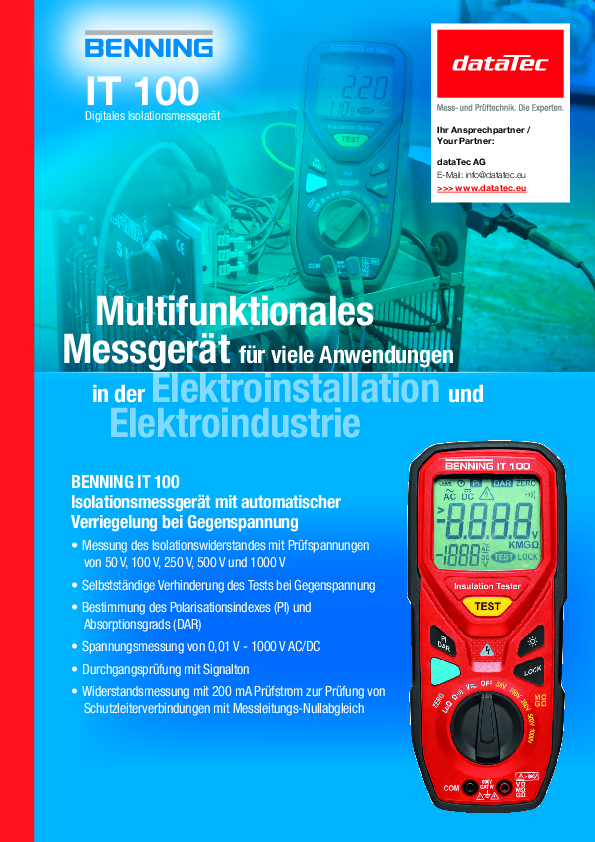

Documents & Downloads
Description
IT 100 | Insulation and resistance measuring device for standard-compliant testing of electrical systems (044107)
Multifunctional measuring device for many applications in the electrical installation and electrical industry
Measurement functions:
- Low-ohm resistance of protective conductor and equipotential bonding connections (test current: 200 mA)
- Insulation resistance with test voltages of 50 V, 100 V, 250 V, 500 V and 1000 V
- Resistance measurement with 200 mA test current for testing protective conductor connections with measuring line zero balance
- Continuity test with beep
- voltage measurement
- Determination of polarization index (PI) and absorbance (DAR)
Features:
- Many measuring functions combined in one device
- Test and external voltage display via red LED
- Test function to check the internal fuse
- Automatic prevention of the reverse voltage test
- Compact and handy housing design
- Protective rubber frame for rough, industrial use
- Large LC display with backlight
Lieferumfang
- BENNING IT 100
- high-quality protective bag
- protective rubber frame
- 4 mm test lead and probe tip set
- alligator clips
- batteries
