Hörger & Gässler CLM-2010 | ClampMan Midi multifunction set Professional

Manufacturer number: CLM-2010

Hörger & Gässler CLM-2010
Hörger & Gässler CLM-2010
Hörger & Gässler CLM-2010
Hörger & Gässler CLM-2010
Delivery time upon request

€1,153.00

plus VAT. €1,372.07 VAT plus shipping costs

or choose one of the following options:
Product downloads Product inquiries
Highlights Documents / Downloads Description Scope Related Articles

Hörger & Gässler CLM-2010 | ClampMan Midi multifunction set Professional

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Documents & Downloads

Datasheet
pdf | 4.41 MB

Description

CLM-2010 | ClampMan Midi multifunction set Professional

ClampMan is a perfect solution for fastening printed circuit boards in various shapes and formats in a wide variety of ways. Thanks to its flexible design, it is possible to position each circuit board perfectly for tasks such as measuring, soldering or thermal imaging. ClampMan was specially developed to clamp live circuit boards and at the same time enable safe measurements from both sides. This is very helpful for power electronic measurements such as measuring the power factor or the efficiency of a power supply. The supplied clamping accessories enable the mounting of printed circuit boards in many different positions with several degrees of freedom. This ensures unmatched versatility when soldering, repairing or assembling printed circuit boards.

ClampMan integrates H & G's precise hydraulic leveling feet, which have been valued in the manufacturing and medical technology industries for decades. With these articulated stands, measuring probes or other devices such as thermal imagers can be positioned exactly. In the basic version, the ClampMan is equipped with a hydraulic probe holder. Additional hydraulic leveling feet are available as accessories. A total of up to ten leveling feet can be installed with probe holders.

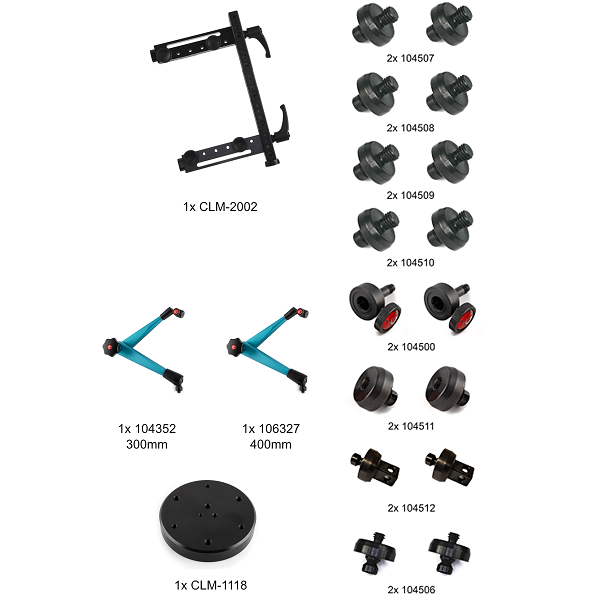

Lieferumfang

  • Insulated clamping device for PCBs up to 162mm
  • Flexible mounting kit
  • Tripod size 400 with quick coupling
  • 2 quick coupling adapters
