GW Instek ASR-6600 | AC&DC power supply, 1 & 3 phase, 6 kVA, LAN, USB, External, RS-232C, ASR-6000 series

Manufacturer number: ASR-6600

GW Instek ASR-6600 | AC&DC power supply, 1- & 3-phase, 6 kVA, 4 U, LAN, USB, External, RS-232C, ASR-6000 series.

Independent Consulting

More than 50 strong brands and exclusive partnerships.

About the brands

Services

More than instruments: Before, during and after sales.

Go to the services

Demonstration & Consulting

Sales and technical support close to you.

Start request

Technical Data

Documents & Downloads

Description

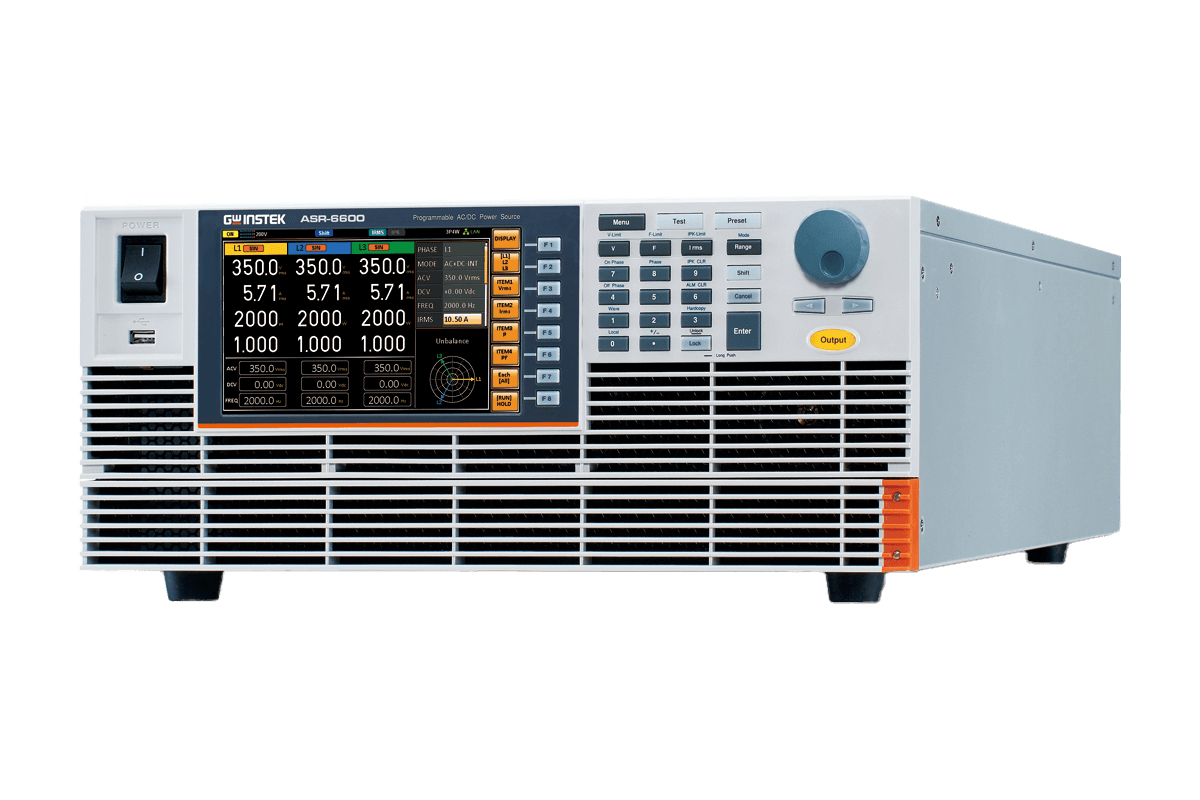

ASR-6600 | AC&DC power supply, 1 & 3 phase, 6 kVA, LAN, USB, External, RS-232C, ASR-6000 series

The GW Instek AC&DC series ASR-6000 consists of two models: the ASR-6450 AC/DC with 4.5 kVA and the ASR-6600 AC/DC with 6 kVA. Both devices have single and three-phase AC input and output as well as a rated DC output. By using third-generation semiconductor silicon carbide (SiC) technology, the powerful AC/DC power source achieves a remarkably high power density of up to 6kVA at 4U. The ASR-6000 series is capable of emulating various changes in the power environment such as: B. balanced and unbalanced three-phase scenarios, phase failure and multi-channel output in three-phase mode, providing unparalleled flexibility and functionality.

The ASR-6000 power supplies are the ideal test solution for high-performance server power modules with redundant CRPS capabilities.

For customers requiring single-phase or three-phase AC output functionality of 4kVA and above, the ASR-6000 offers a powerful, standalone device that provides comprehensive three-phase provides power supply, simplifies the test setup and significantly increases the efficiency of power supply tests for high-performance servers.

Both models have a 7" TFT display and come with USB, LAN, external and RS-232 as standard interface equipped. Optionally, you can also get the power supplies with GPIB, CAN Bus, DeviceNet interfaces.

Product features:

  • Third generation semiconductor silicon carbide (SiC) technology for up to 6 kVA in only 4U
  • AC input supports single and three phase, phase voltage 200V to 240V±10% (delta or Y connector)
  • 10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA)
  • Multi-channel output function< /li>
  • Support AC 1P2W, 1P3W, 3P4W output
  • Maximum AC output phase voltage: 350Vrms Line voltage: 700Vrms
  • Balanced and unbalanced three-phase AC output functions, phase loss
  • Programmable output impedance adjustment
  • Dual-channel voltage/current output monitoring function
  • The voltage output rise time can be adjusted in three ranges.
  • Support sequence editing and emulation output mode.
  • Powerful arbitrary waveform editing and output function, via 40 types of waveform outputs integrated.
  • Advanced web server control to support data acquisition and data logger functions.
  • 100th order harmonic measurement function< /li>
  • Supports external parallel connection of up to 3 devices to increase output power.
  • Standard interfaces: RS-232C, USB, LAN
  • Optional interfaces: CAN BUS, DeviceNet, GPIB

Accessoires (13 products )

GW Instek GPW-008
Power cable, 3m, 10AWG/3C, UL type
Delivery time upon request
€82.00
GW Instek GPW-009
Power cable, 3m, 2.5mm2/3C, VDE type
Delivery time upon request
€66.00
GW Instek GPW-010
Power cable, 3m, 2.0mm2/3C, PSE type
Delivery time upon request
€59.00
GW Instek GPW-011
Power cable, 3m, 10AWG/5C, UL type
Delivery time upon request
€115.00
GW Instek GPW-012
Power cable, 3m, 2.5mm2/5C, VDE type
Delivery time upon request
€98.00
GW Instek GPW-013
Power cable, 3m, 2.0mm2/5C, PSE type
Delivery time upon request
€92.00
GW Instek GPW-014
Power cable, 3m, 10AWG/4C, UL type
Delivery time upon request
€98.00
GW Instek GPW-015
Power cable, 3m, 2.5mm2/4C, VDE type
Delivery time upon request
€82.00
GW Instek GPW-016
Power cable, 3m, 2.0mm2/4C, PSE type
Delivery time upon request
€75.00
GW Instek GTL-232
Transmission cable RS232 for LCR-6xxx / 81xxG, 9 pin (f) to (f), 2m
Delivery time upon request
€8.00
GW Instek GTL-248
GPIB cable, shielded, 2m for GPT-9900
Delivery time upon request
€153.00
GW Instek GRA-451-E
Rack mount adapter 19", EIA, for ASR-6000 series
Delivery time upon request
€164.00
GW Instek GTL-246
USB cable type A to type B 1.2m for GDS / GLA / GSP / GPD / GLC9000 / AFG2000 / 3000 / PEL
Delivery time upon request
€10.00

Alternate products (1 product )

GW Instek ASR-6450
AC&DC power supply, 1 & 3 phase, 4.5 kVA, LAN, USB, External, RS-232C, ASR-6000 series
Delivery time upon request
€11,995.00

Options (4 products )

GW Instek ASR-003
GPIB interface card for ASR-6000 series
Delivery time upon request
€393.00
GW Instek ASR-004
DeviceNet interface card for ASR-6000 series
Delivery time upon request
€328.00
GW Instek ASR-005
CAN interface for ASR-6000 series
Delivery time upon request
€262.00
GW Instek ASR-006
Parallel cable for ASR-6000 series
Delivery time upon request
€82.00
