GW Instek ASR-6450 | AC&DC power supply, 1 & 3 phase, 4.5 kVA, LAN, USB, External, RS-232C, ASR-6000 series
Manufacturer number: ASR-6450
GW Instek ASR-6450 | AC&DC power supply, 1- & 3-phase, 4.5 kVA, 4 U, LAN, USB, External, RS-232C, ASR-6000 series.
Technical Data

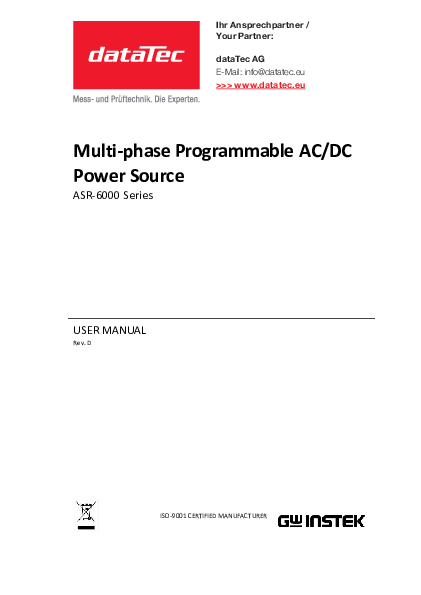

Documents & Downloads
Description
ASR-6450 | AC&DC power supply, 1 & 3 phase, 4.5 kVA, LAN, USB, External, RS-232C, ASR-6000 series
The GW Instek AC&DC series ASR-6000 consists of two models: the ASR-6450 AC/DC with 4.5 kVA and the ASR-6600 AC/DC with 6 kVA. Both devices have single and three-phase AC input and output as well as a rated DC output. By using third-generation semiconductor silicon carbide (SiC) technology, the powerful AC/DC power source achieves a remarkably high power density of up to 6kVA at 4U. The ASR-6000 series is capable of emulating various changes in the power environment such as: B. balanced and unbalanced three-phase scenarios, phase failure and multi-channel output in three-phase mode, providing unparalleled flexibility and functionality.
The ASR-6000 power supplies are the ideal test solution for high-performance server power modules with redundant CRPS capabilities.
For customers requiring single-phase or three-phase AC output functionality of 4kVA and above, the ASR-6000 offers a powerful, standalone device that provides comprehensive three-phase provides power supply, simplifies the test setup and significantly increases the efficiency of power supply tests for high-performance servers.
Both models have a 7" TFT display and come with USB, LAN, external and RS-232 as standard interface equipped. Optionally, you can also get the power supplies with GPIB, CAN Bus, DeviceNet interfaces.
Product features:
- Semiconductor silicon carbide ( Third generation SiC) technology for up to 6 kVA in only 4 U
- AC input supports single and three phase, phase voltage 200V to 240V±10% (Delta or Y connection )
- 10 output modes: including external input signal frequency and mains synchronization (SYNC), external voltage controlled internal amplifier output (VCA)
- Multi-channel output function < br/>
- Support AC 1P2W, 1P3W, 3P4W output
- Maximum AC output phase voltage: 350Vrms Mains voltage: 700Vrms
- Balanced and unbalanced three-phase AC -Output functions, phase loss
- Programmable output impedance adjustment
- Dual-channel voltage/current output monitoring function
- The rise time of the voltage output can be adjusted in three ranges.
- Support sequence editing and emulation output mode.
- Powerful arbitrary waveform editing and output function, over 40 kinds of waveform outputs integrated.
- Advanced web server control to support data acquisition and data logger functions.
- 100th order harmonic measurement function < br/>
- Supports external parallel connection of up to 3 devices to increase output power.
- Standard interfaces: RS-232C, USB, LAN
- Optional interfaces: CAN BUS, DeviceNet, GPIB
